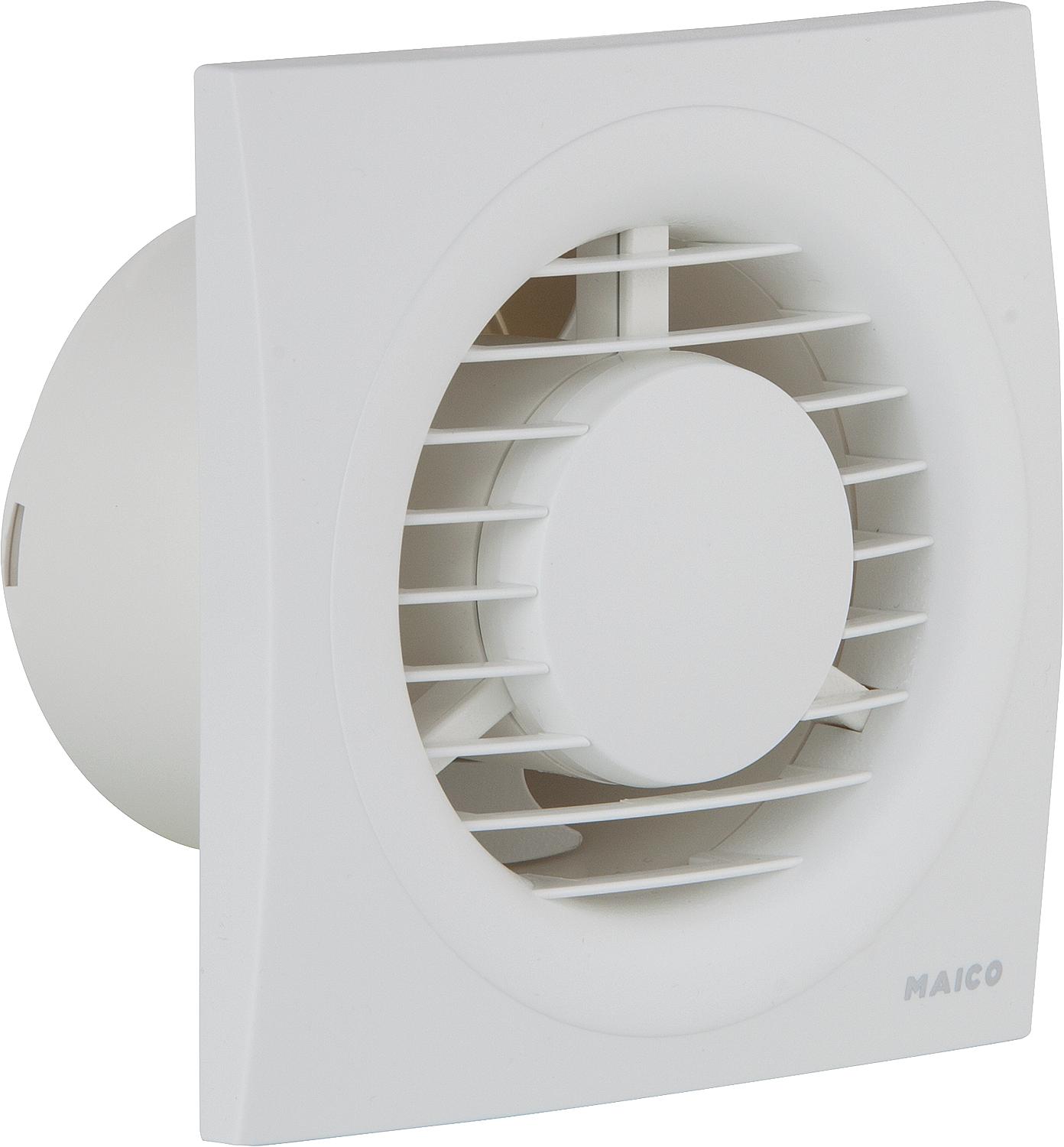

Kleinraumventilator ECA piano H

Area of ​​application
• for bathroom, toilet, storage room, basement, etc.
• Ventilation of interior rooms
• Installation position: Ceiling / Wall
• Mounting directly over the exterior wall or via a telescopic tube

Technical data:
• Protection zone 1 of wet rooms
• Design: Axial
• Flow rate: 80 m³/h
• Maximum pressure: 32 Pa
• Sound pressure level: 26 dB(A)
• Voltage: 230 V/ 50/60 Hz
• Power consumption: 8 W
• Protection rating: IPX4
• Nominal diameter: 100 mm
• Speed ​​controllable: only standard type
• Backflow preventer
• Compatible with ECA 100, same position of screw holes and cable entry
