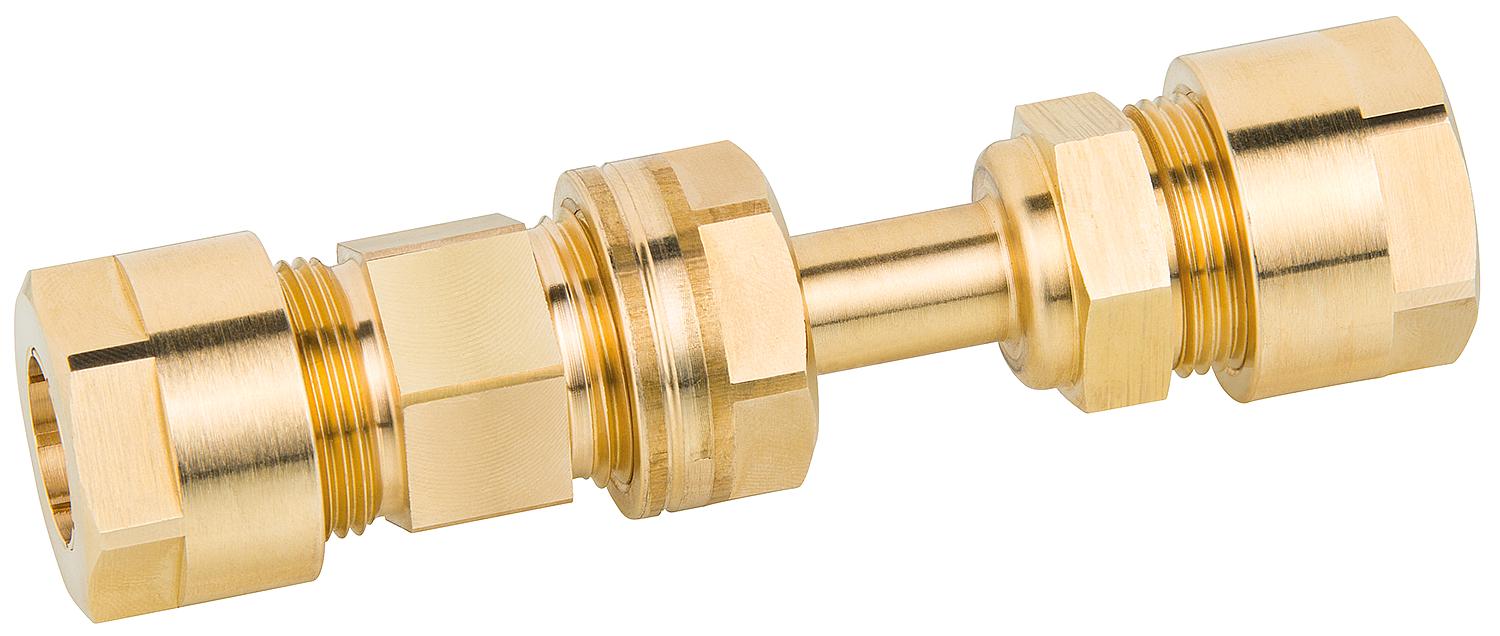

Clamp connectors with length compensation 20x20mm

• Brass compression fittings for multilayer composite pipes from various manufacturers

• Maximum flexibility thanks to the modular system (one body for each outer diameter, different support bodies for different inner diameters)
• Repairs to heating pipes
• Suitable for use in concealed installations (hot and cold water pipes)

Technical data:

• Operating pressure: 10 bar (20°C), 6 bar (70°C)
• Maximum temperature: 95°C

Scope of delivery:

• 1 x Multigebo 20 x 20 mm with length compensation
• 2 x support bodies 14.4 mm
• 2 x support bodies 15.0 mm
• 2 x support bodies 15.5 mm
• 2 x support bodies 16.0 mm
• 1 x measuring mandrel for measuring the inner diameter
