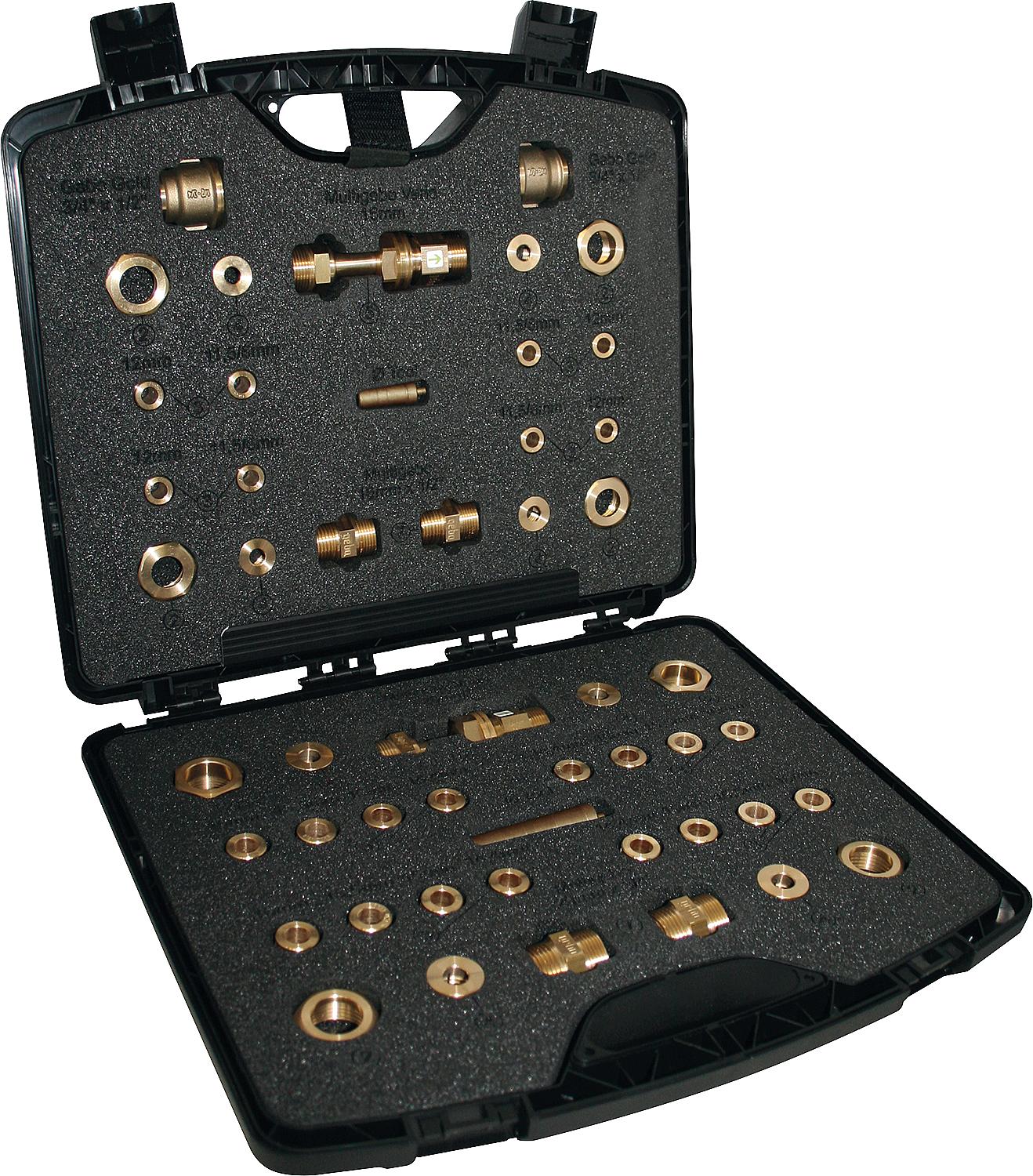

Clamp connector repair kit for 16 and 20mm pipes

• Brass compression fittings for multilayer composite pipes from various manufacturers

• Maximum flexibility thanks to the modular system (one body for each outer diameter, different support bodies for different inner diameters)
• Repairs to heating pipes
• Suitable for use in concealed installations (hot and cold water pipes)

Technical data:

• Operating pressure: 10 bar (20°C), 6 bar (70°C)
• Maximum temperature: 95°C

Scope of delivery:

• 1 x Multigebo with length compensation 20 x 20 mm *
• 2 x Multigebo with external thread 20 mm x DN 20 (3/4") **
• 4 x support bodies for inner diameter 14.4 mm
• 4 x support bodies for inner diameter 15.0 mm
• 4 x support bodies for inner diameter 15.5 mm
• 4 x support bodies for inner diameter 16.0 mm
• 1 x measuring mandrel for the inner diameter of multilayer composite pipes with an outer diameter of 20 mm
• 2 x brass reducing sleeves DN 15 (1/2") x DN 20 (3/4")
• 1 x Multigebo with length compensation 16 x 16 mm *
• 2 x Multigebo with external thread 16 mm x DN 15 (1/2") **
• 4 x support bodies for inner diameters of 11.5 and 11.6 mm
• 4 x support bodies for inner diameter 12.0 mm
• 1 x measuring mandrel for the inner diameter of multilayer composite pipes with an outer diameter of 16 mm

* with two union nuts and two clamping sleeves

** with a union nut and a clamping sleeve
