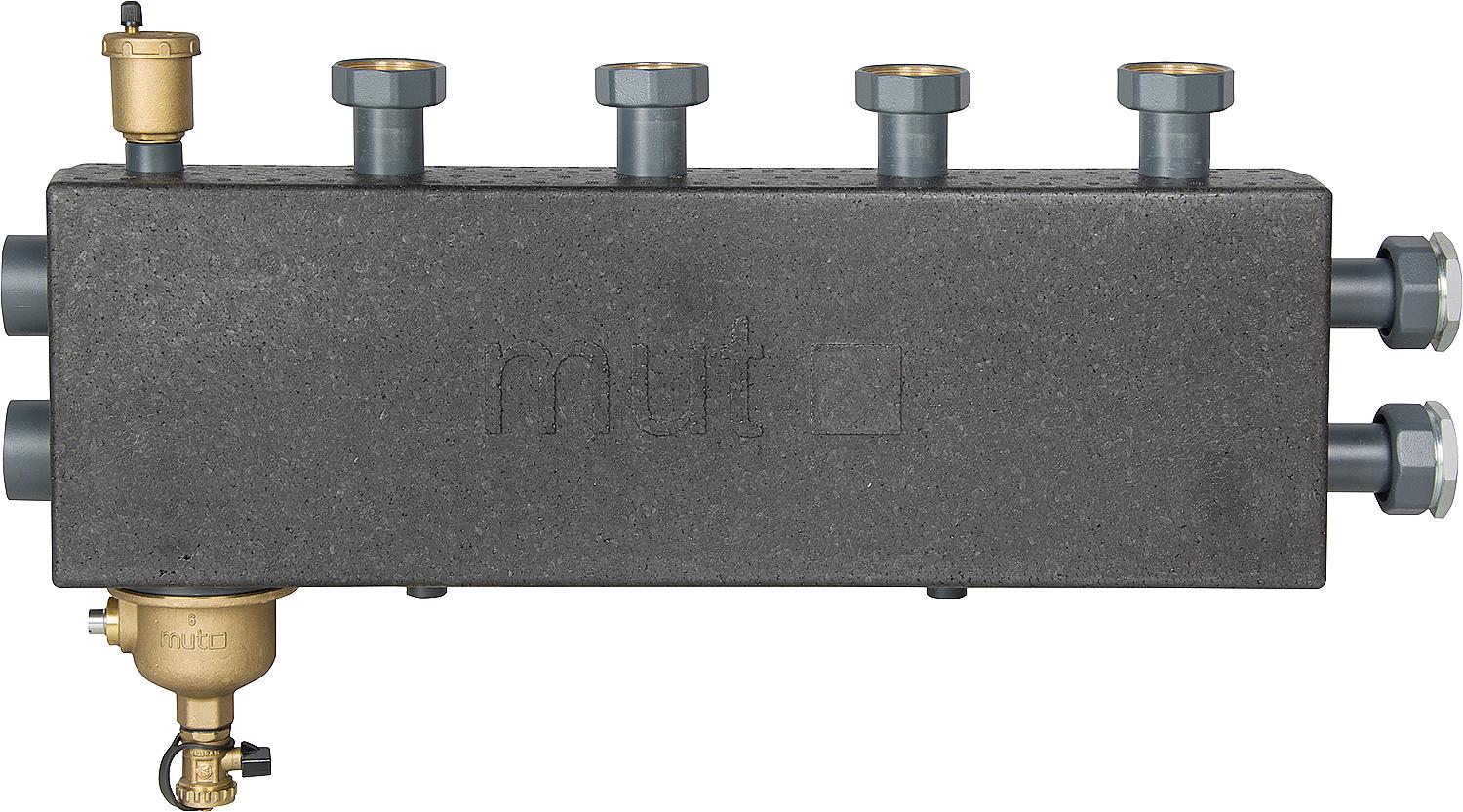

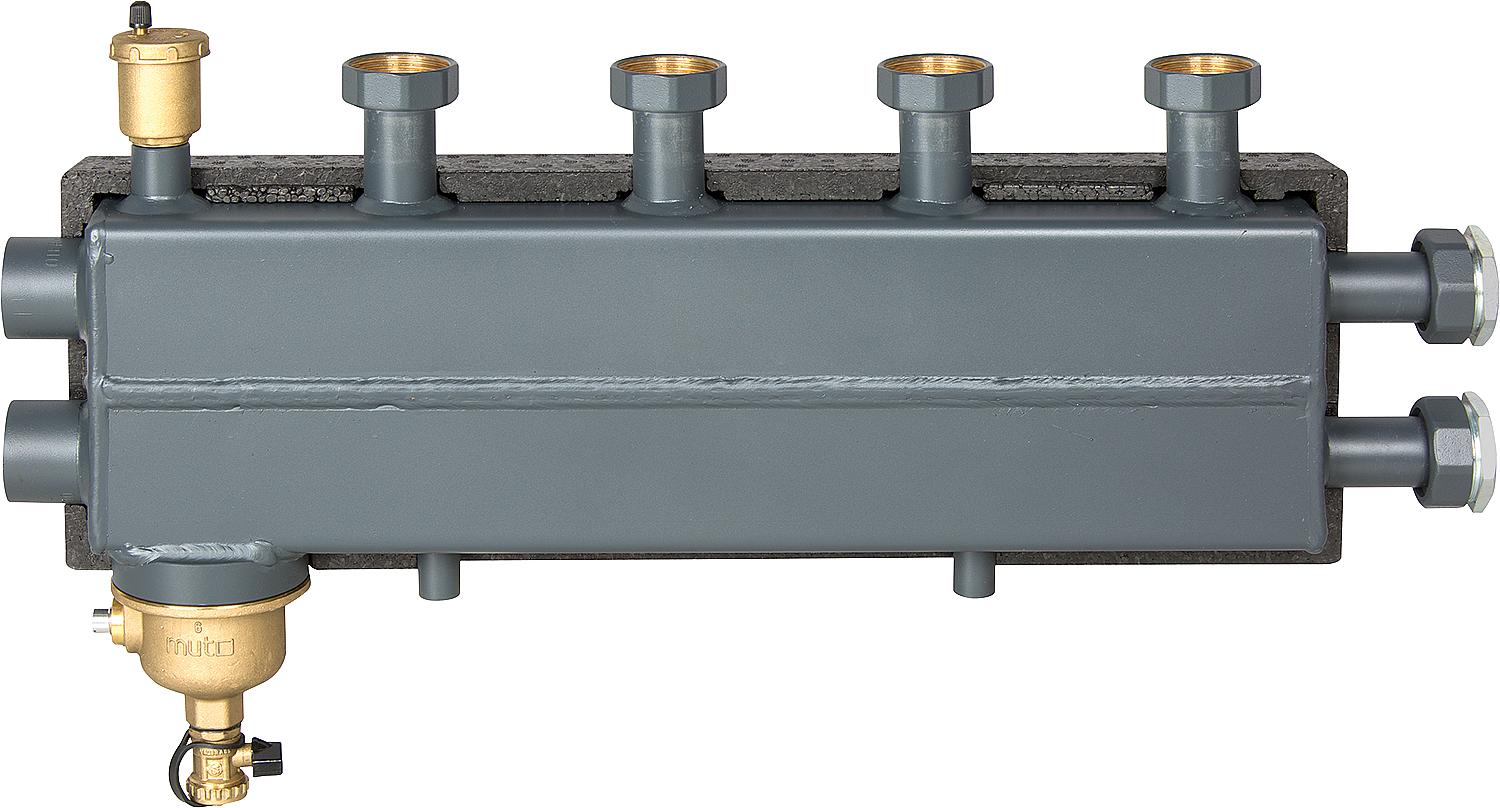

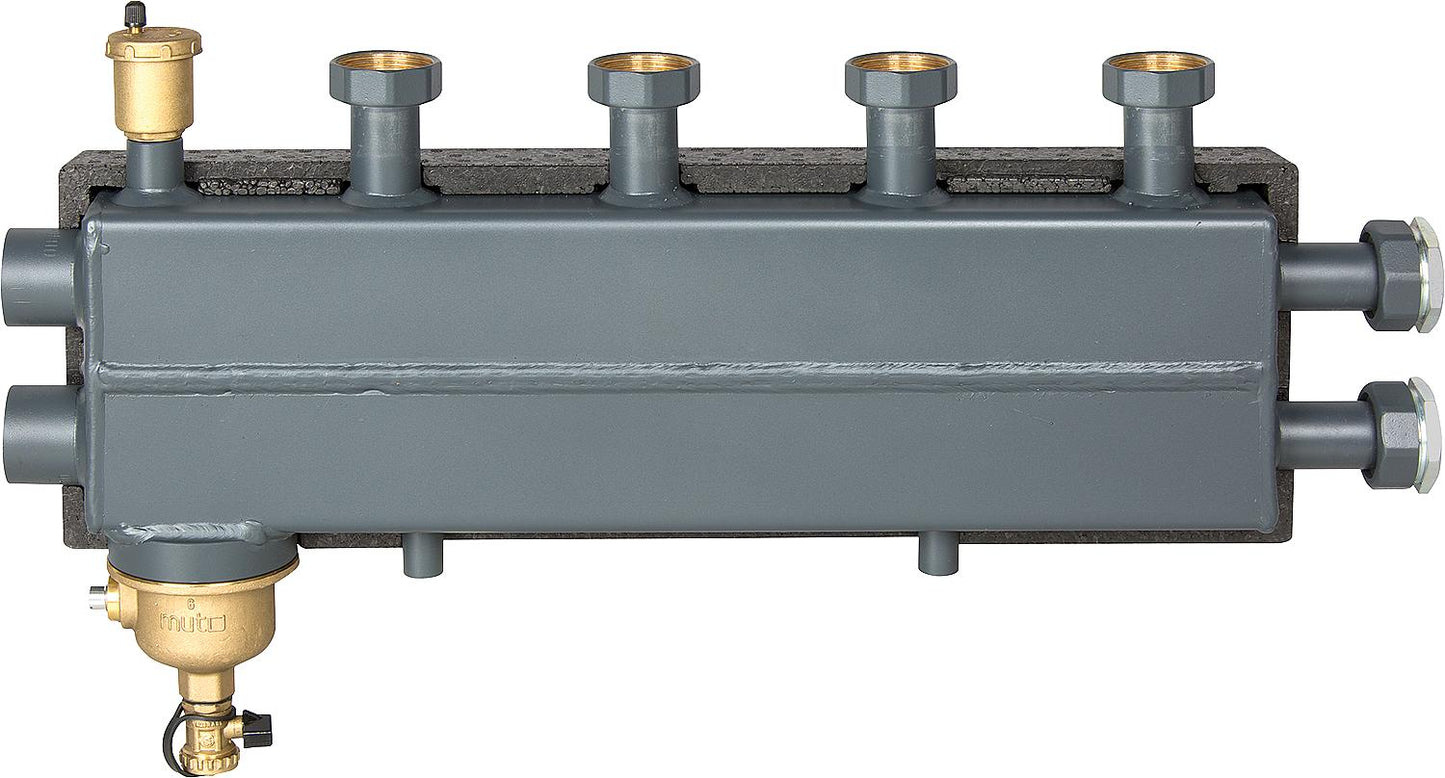

Combination manifold DN 25, 2+1 heating circuits with magnetic sludge separator and vent

• Heating circuit outlets, flow and return, are located next to each other.
• Separate heating circuit outlet on the side
• Integrated hydraulic separator
• Integrated drain and vent
• EPP insulation and wall brackets included

Technical data:

• Maximum operating pressure: 6 bar
• Maximum operating temperature: 110 °C
• Axle spacing of upper outlets: 125 mm
• Axle spacing of side outlets: 80 mm
• Boiler connection: DN 32 (1 1/4") internal thread
• Heating circuit connection: DN 40 (1 1/2") ÜWM
• Distributor material: Steel
• Material of the overhead clamp: Brass
