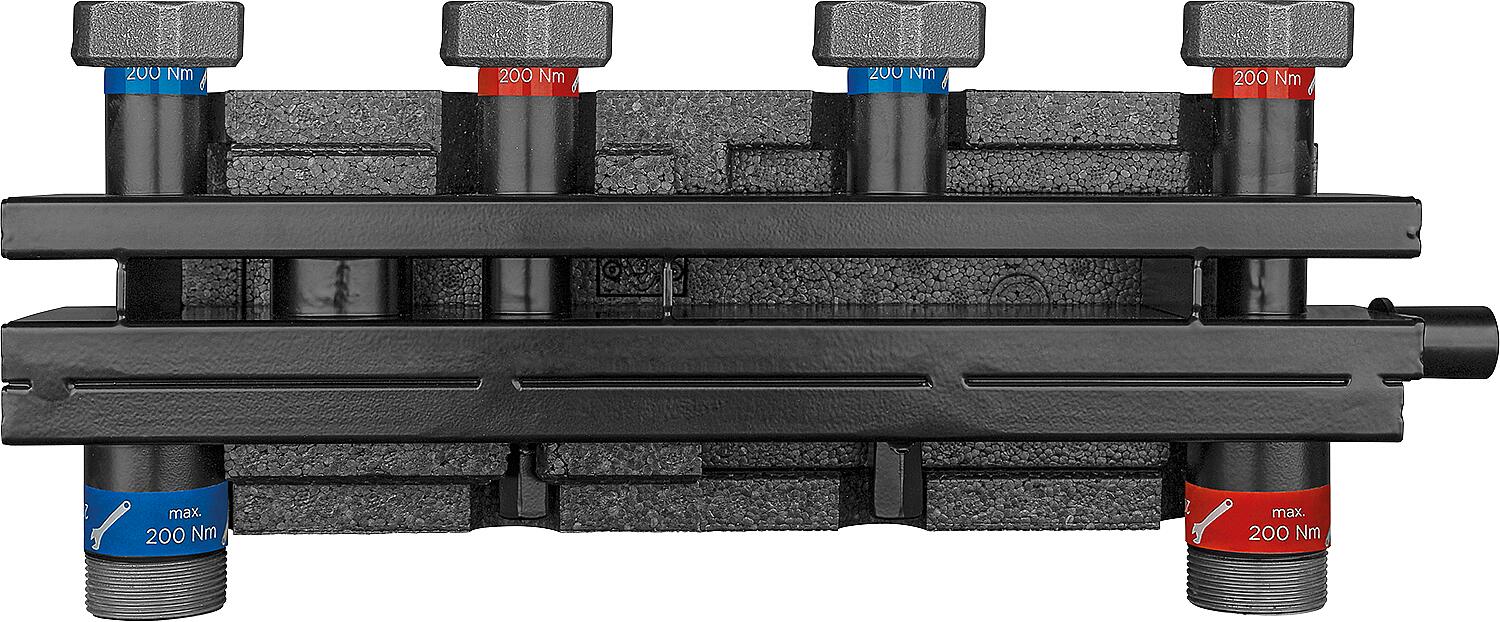

Evenes VTW3/2 combination manifold ÜWM DN40 (1 1/2"), 3m³/h, 70kW, incl. bracket and insulation

Bewertungen

| Eine Rezension schreiben

CHF 200.15

% Sold out

Taxes included.

Quantity

Lieferung Schweiz

Voraussichtliche Lieferung nach Versandart:

Economy (kostengünstig) wird berechnet
Express (Express-Lieferung) wird berechnet
Priority (schneller Standard) wird berechnet

Manufacturer:

Order No.:

Availability:

evenes

sofort lieferbar

Security policy

Delivery terms

Return policy

View full details

Beschreibung Spezifikation Bewertungen

Flow and return are thermally separated, making it ideal for use in condensing boiler systems.
Compact design
Heating circuit outlets lying next to each other
Forward and return lines are color-coded.
Pressure tested and primed
Including insulation and wall mounting.

Technical data:

Maximum operating pressure: 6 bar
Maximum operating temperature: 110°C
Distributor material: Steel
Insulation material: EPP
Installation depth: 110 mm

Heating manifold with integrated hydraulic separator
Maximum throughput: 3 m³/h
Maximum power: 70 kW
Axle spacing: 125 mm
Boiler connection: 2 x DN 40 (1 1/2") male thread
Heating circuit connection: DN 40 (1 1/2") union nut
Wall clearance: 110/150 mm
Insulation thickness: 25 mm

Installation length [mm]	530
Brand	evenes
Unit price	CHF/piece
Heating circuits	2
