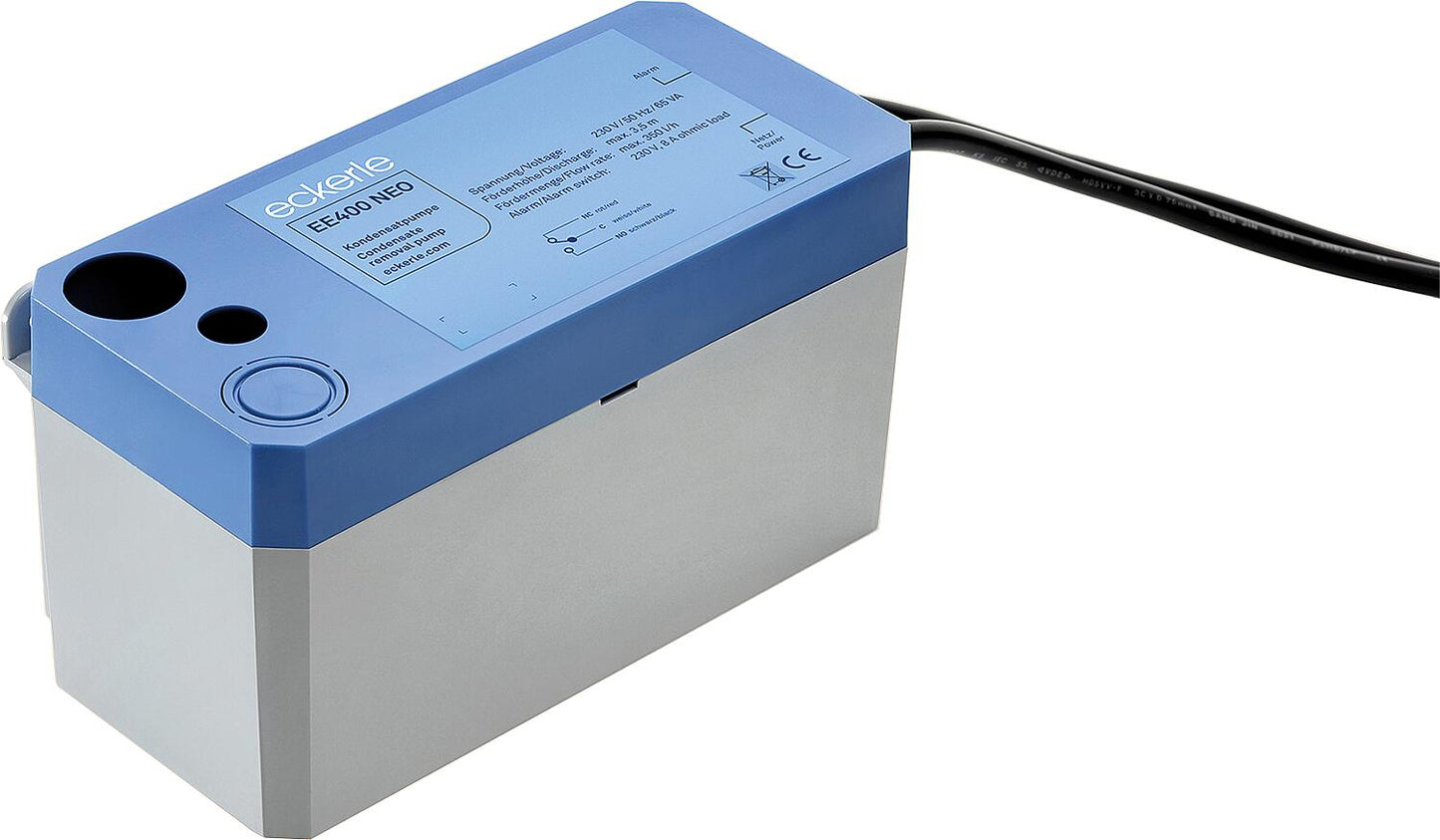

Eckerle EE 400 NEO Premium condensate pump with fault indicator, including 6m PVC hose 8 mm

Fully integrated safety overflow protection in the form of a special additional mains plug with built-in fault indicator light and acoustic signal generator (horn)

• For pumping condensate from gas condensing boilers, air conditioners and refrigerated display cases
• Pump unit can also be used in an external tank; tank height: min. 62 mm, max. 70 mm
• Integrated check valve

Technical data:

• chemically resistant
• Protection class IP 55
• Medium temperature: max. 70°C
• Pressure hose 8 x 2 mm, 6 m long
• Flow rate: max. 5.8 l/min
• Operating limit: 40 l/h, max. 400 kW
• Delivery head: max. 4 m
• Pump module (LxWxH): 185 x 85 x 100 mm
• Electrical data: 230 V, 50/60 Hz, 65 VA
• Alarm contact: 230 V, 8 A resistive load NO normally open / NC normally closed
• Tank capacity: max. 0.5 l
