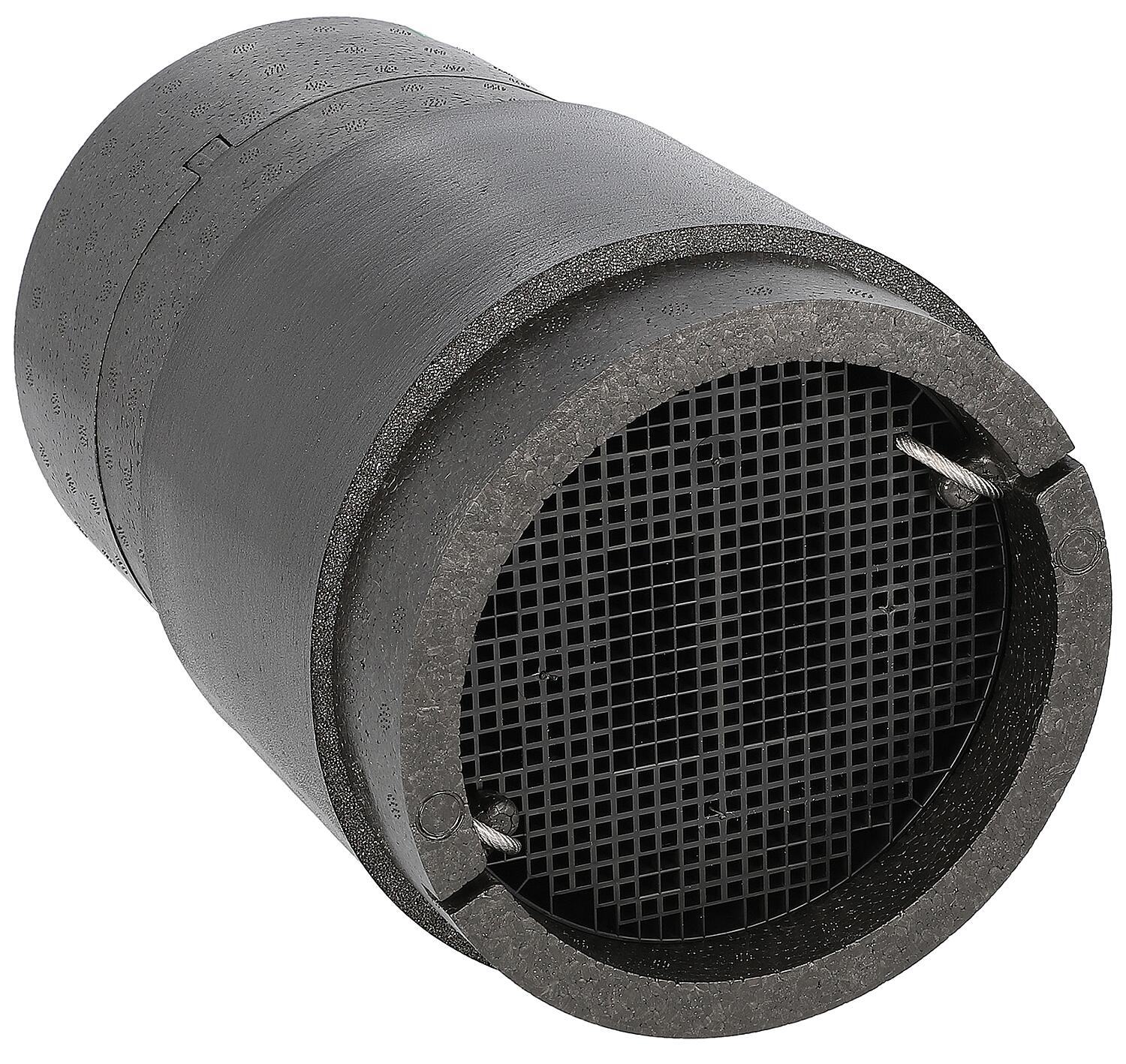

The e2 models operate on the principle of a regenerative heat exchanger. The storage element is positioned in the center of the airflow from an EC axial fan. A reversing airflow, created by a controlled change in the fan's direction, charges the PLA material with thermal energy from the room air and releases it to the incoming outside air. This process is so efficient that up to 96% of the heat energy contained in the air is recovered. The combination of e² and ego ensures 100% ventilation with heat recovery throughout the entire house and is ideally suited for KfW-certified homes.
Area of application:
• For living spaces free from odor problems
- Living room
- bedroom
- Common rooms
Technical data:
• Voltage: 12 V SELV
• Protection rating: IP22
• Switching interval in reversing mode: 70 seconds.
• Required core drilling: ø 162 mm
• Minimum wall thickness: 280 mm
• Filter class: G3
Required accessories:
- Steering
- Mounting wall sleeve
- Inner panel
- Outer hood
• Optimized for efficiency and noise
• Flow rate: 5 - 60 m³/h
• Maximum power consumption: 0.4 - 3.3 W
• Maximum heat supply rate: 96%
• Energy efficiency class: A+
• Sound pressure level: 18 - 56 dB(A)
| Brand | LUNOS |
|---|---|
| Manufacturer part number | 41157 |
| Unit price | CHF/piece |
| EAN | 4050556411573 |
