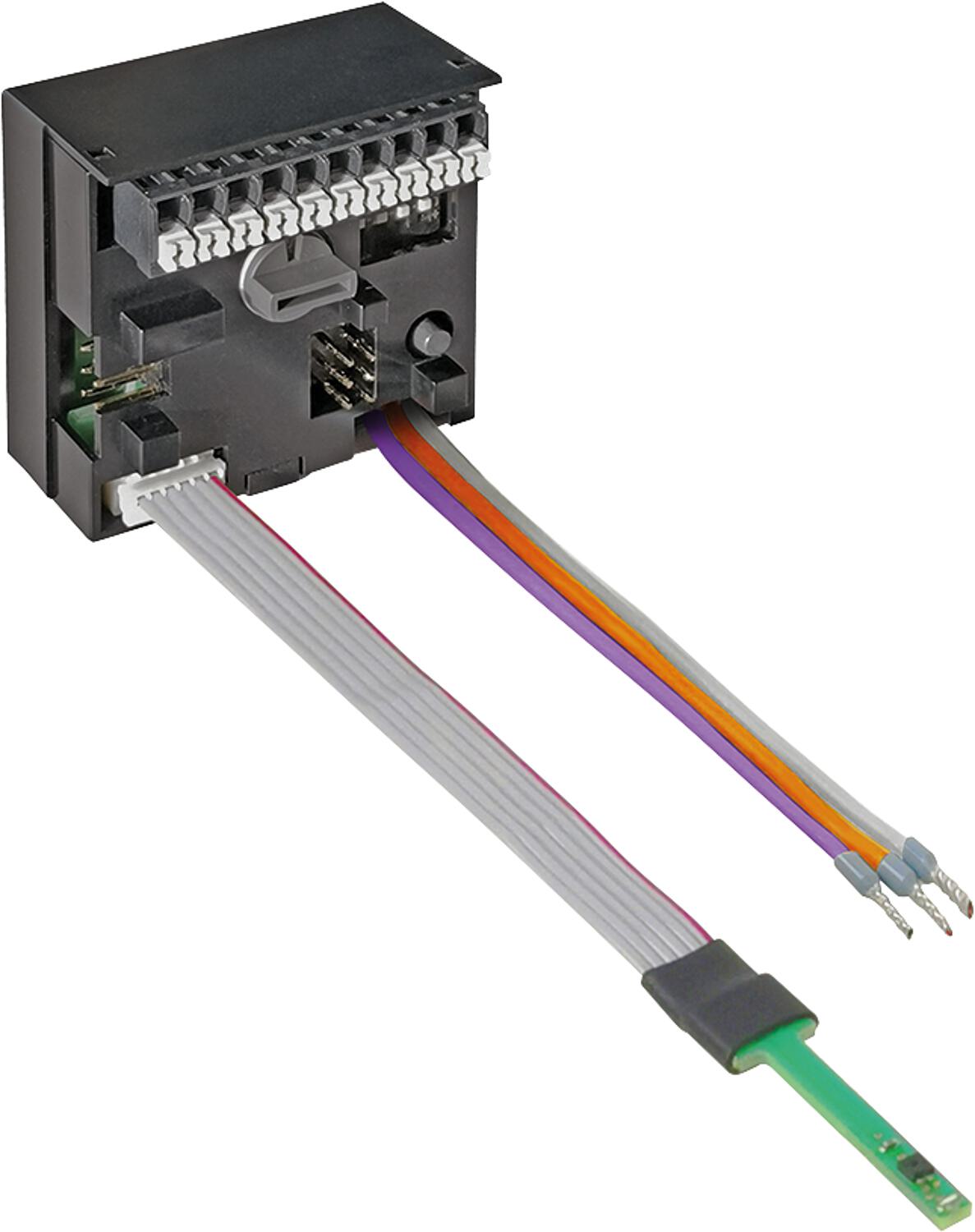

Universal controller 5/UNI-RF with integrated radio module for e2, ego, with humidity and temperature sensor

• Control for switching the different operating modes of the radio apertures 9/IBF-RF
• Integrated humidity and temperature sensor
• Summer mode: Night cooling without heat recovery
• Run-on timer and interval control possible (setting via DIP switch)
• Filter change indicator

Technical data:
• Operating voltage: 12 V DC
• Operating voltage range: 0-10 V
• Protection class: IP 22
• Frequency: 866 MHz
• Dimensions:
- Control unit (W x H x D): 25.6 x 42 x 42 mm
- Control element (W x H x D): 88 x 88 x 11 mm
• Can be installed in a deep flush-mounted box (90 mm)

Required accessories:
• Power supply unit (Order no. 98 028 87)
• Switch cover (Order no. 98 028 86)
• Optional Smart Comfort Control (Order No. 98 002 97)
