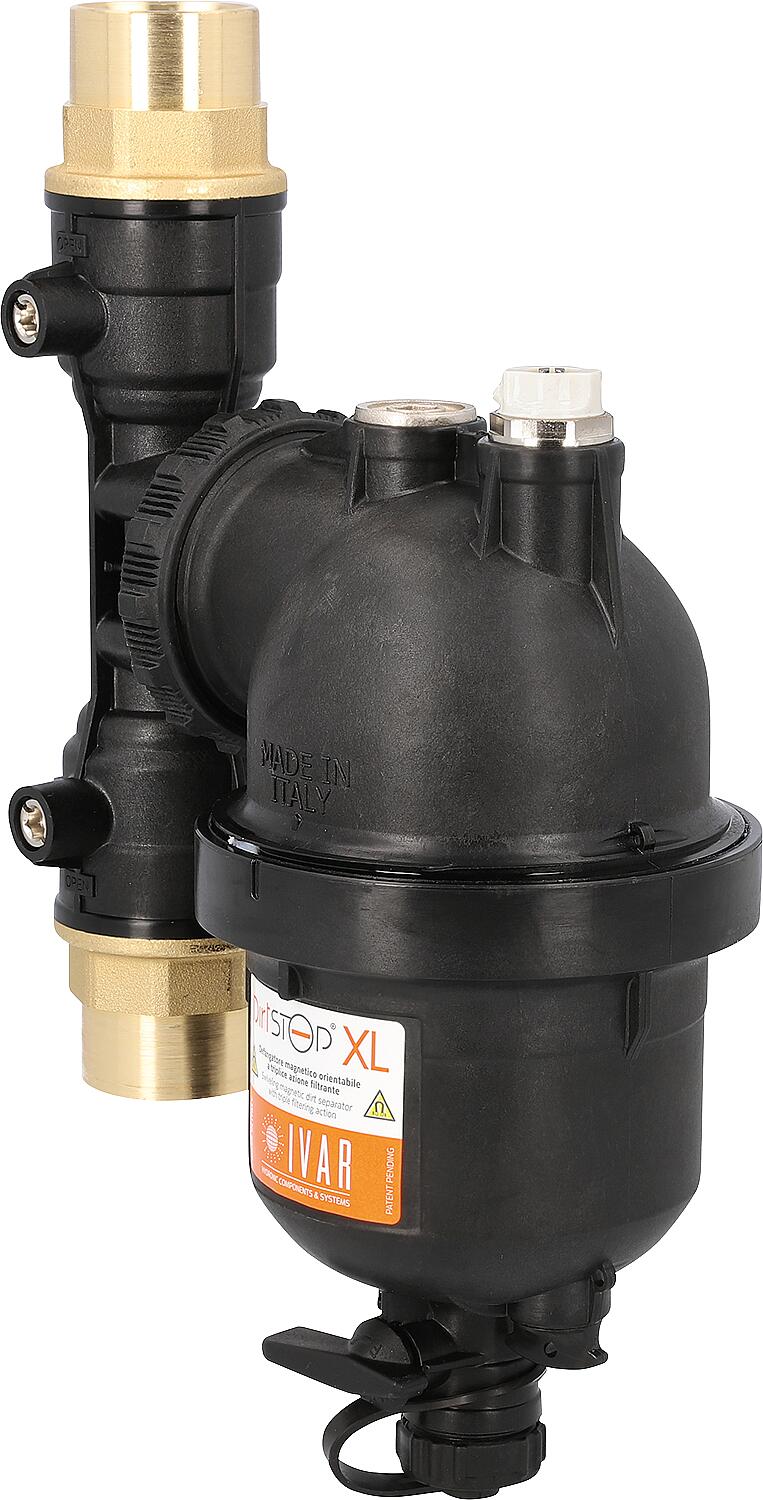

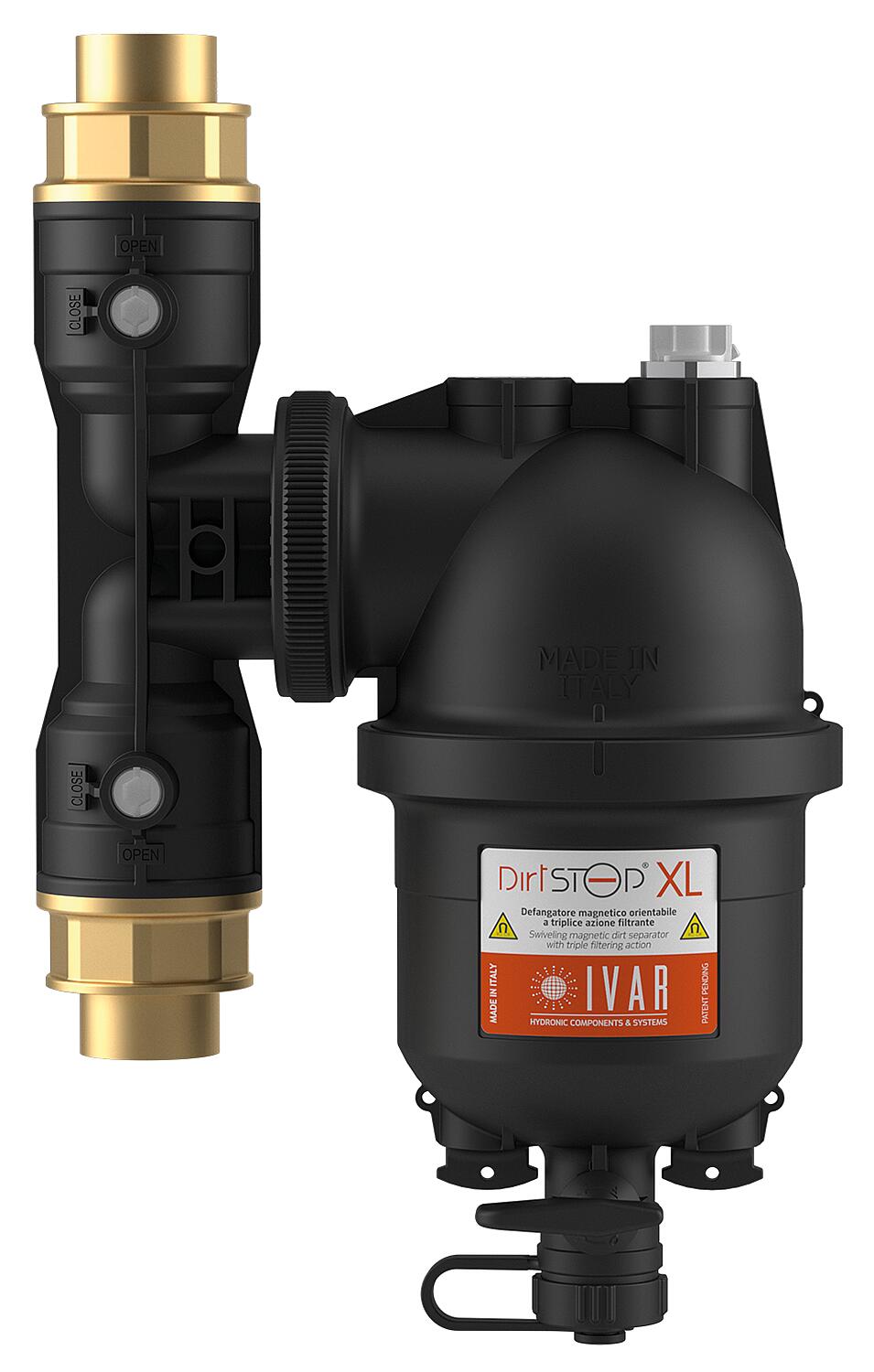

Dirtstop XL magnetite and sludge separator, type PF, lockable, DN20 (3/4"), internal thread

• Efficient filtration through the cyclone principle
• Powerful magnet
• Two different stainless steel filter inserts (mesh size), depending on the degree of contamination
• Suitable for high flow rates, e.g., heat pumps
• Includes mounting wrench

Technical data:

• Maximum operating pressure: 3 bar
• Temperature range: 0 – 90°C
• Filter housing material: black plastic
• Filter insert material: Stainless steel (AISI 304)
• Mesh size of filter insert: 500 µm and 800 µm
• Media: Water or glycol mixture (max. 50%)
• Flow coefficient Kv: 13.9 (all nominal diameters)

• Plastic terminal housing with internal thread
• With barriers
