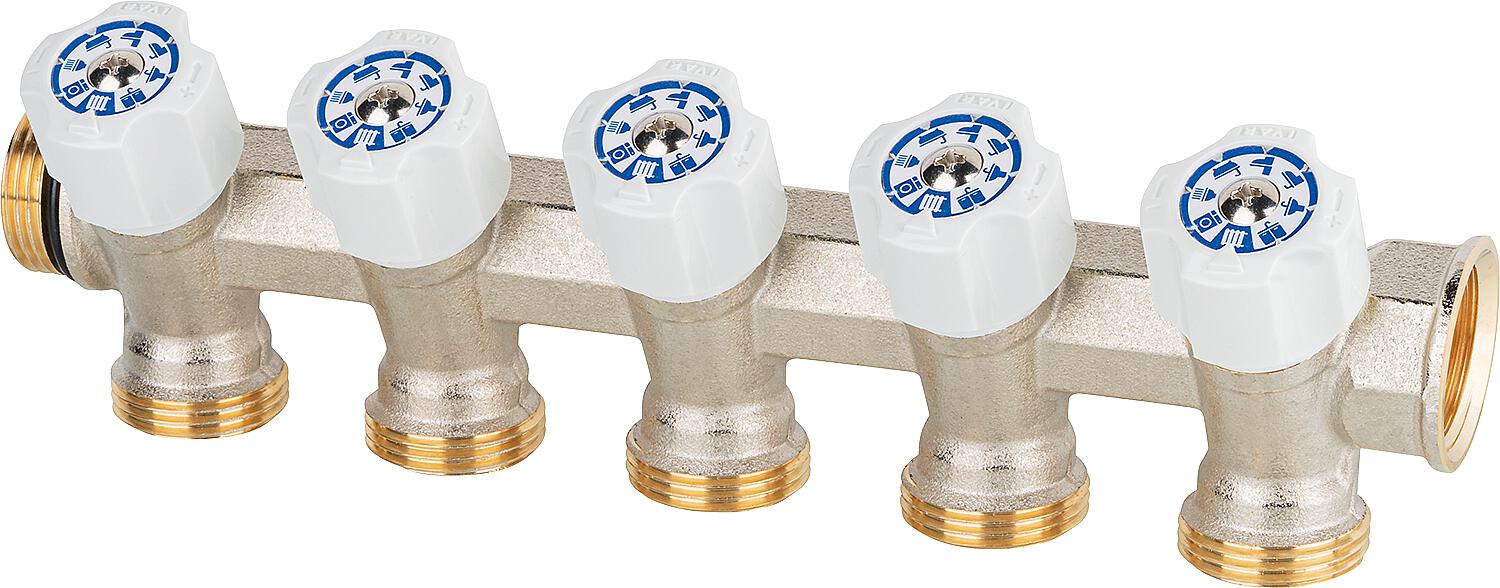

Trinkwasserverteiler 5-fach DN 20 (3/4") x Eurokonus, Easy Lock, DVGW geprüft

Trinkwasserverteiler 5-fach DN 20 (3/4") x Eurokonus, Easy Lock, DVGW geprüft

Bewertungen
CHF 42.05
CHF 42.05
% Sold out
Taxes included.
Manufacturer:
Order No.:
Availability:
IVAR
sofort lieferbar

Security policy

Delivery terms

Return policy
View full details
Beschreibung Spezifikation Bewertungen

• Expandable drinking water distributor
• Automatic alignment and rapid assembly thanks to O-ring sealing
• Outlets can be individually shut off and regulated
• Valve position tilted by 30°
• Reversible hot/cold plates with symbols
• Replaceable valves

Technical data:
• Media: Drinking water, water-glycol mixture (max. 30%)
• Inlet IG/AG: DN 20 (3/4")
• Axle spacing: 40 mm
• Material: Nickel-plated brass
• Seal: EPDM
• Maximum operating pressure: 10 bar
• Maximum operating temperature: 100°C
• DVGW approval

Brand IVAR
Connection Eurocone DN 20 (3/4)”
Unit price CHF/piece
Type 2-way
