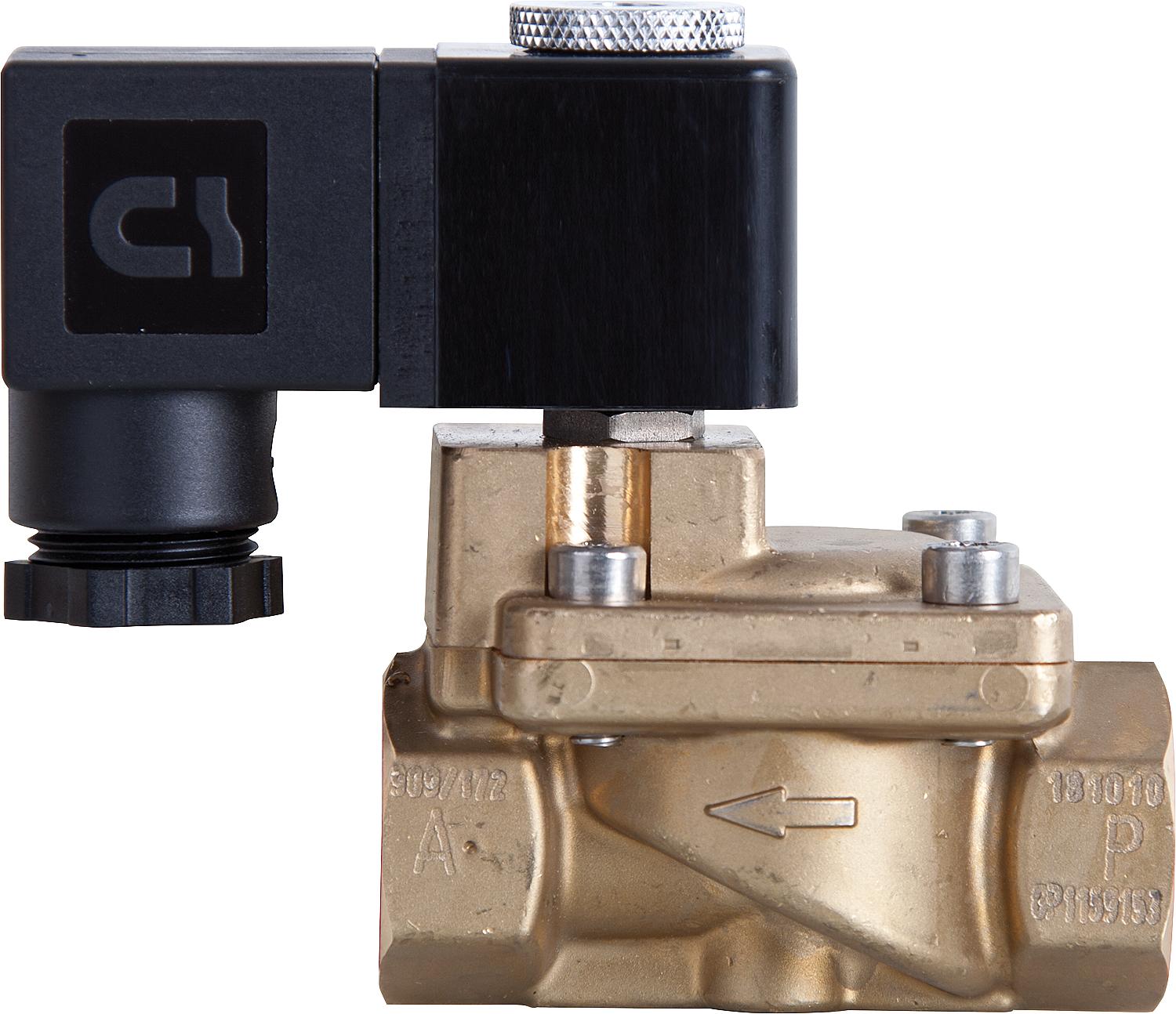

Magnetventil servogesteuert G 1'' DN 25, 0,5-40 bar, Messing stromlos geschl. 230 V 50-60 Hz

• For use with neutral, gaseous and liquid media • Closed when not powered (open on request) • The specified minimum pressure must always be present as differential pressure for the servo control to function correctly. • Installation position: any • Seal: NBR • Media temperature: -10°C to +80°C • With magnetic coil and device plug • Voltage: 230 volts, 50 Hz • Protection rating: IP65 • 100% ED-VDE0580 • Made in Germany • Permissible pressure: 0.5 - 40 bar • Operating with a minimum pressure differential of 0.5 bar • Small magnetic system and compact design • Valve closed in rest position (NC). When energized, the solenoid coil opens the pilot bore and pressure builds up. The pressure above the piston decreases. The now higher pressure below the piston lifts it from the valve seat. The specified minimum pressure must always be present as a pressure differential. Seat seal: PTFE.

Brand	GSR®
L x H [mm]	67 x 88
Manufacturer part number	G051.000102.090.009.090
Unit price	CHF/piece
kv value [m³/h]	1.8
Size	DN 8 (1/4")
Type	C 5121 1001 182
