Mauerdurchführung mit Flanschen, bds. CU-Rohr 22/1

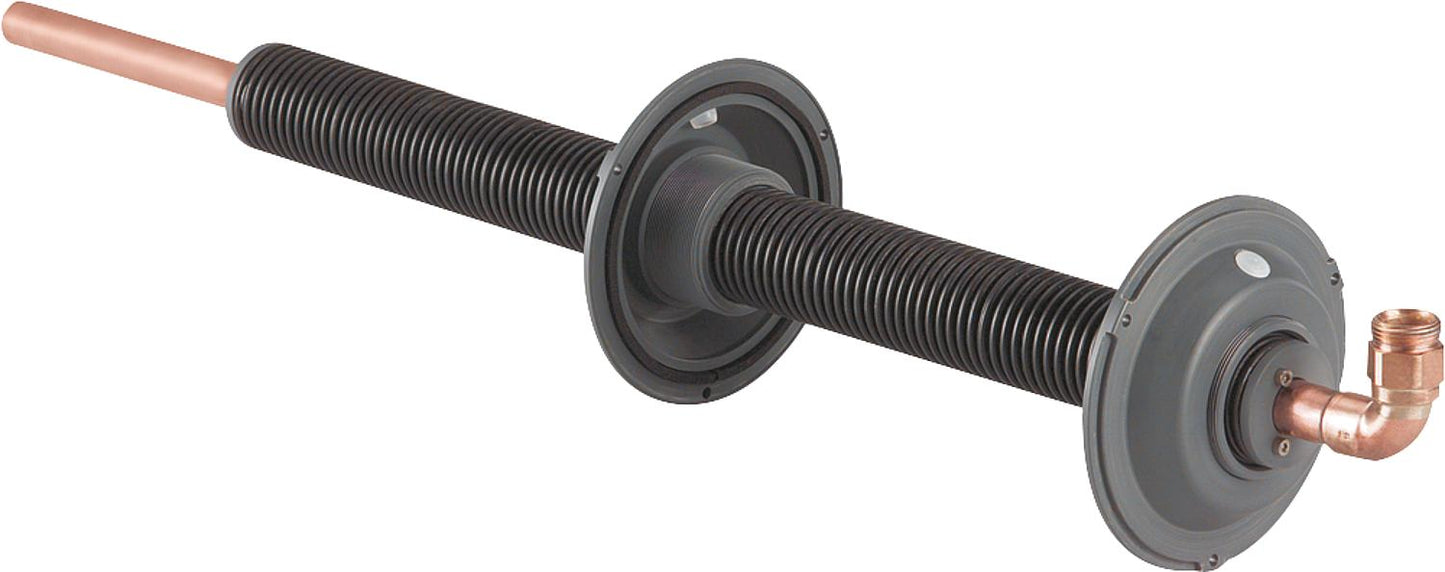

Name: Wall penetration with flanges, copper pipe 22/1 on both sides.
Brand: GOK
SKU: 58 001 87
Price: 158.55 CHF
Availability: InStock

Bewertungen

| Eine Rezension schreiben

CHF 158.55

% Sold out

Taxes included.

Quantity

Manufacturer:

Order No.:

Availability:

GOK

58 001 87

sofort lieferbar

Security policy

Delivery terms

Return policy

View full details

Beschreibung Spezifikation Bewertungen

For installation in liquefied gas systems for above-ground building entries.
DN 15, according to TRF 1996 (5.4.6.1.5)
Connection: Cu pipe ø 22 mm
Consisting of: Copper tube ø 22 mm, sealing unit, corrugated plastic tube ø 50 mm, mounting flange with sealing ring, heat shrink tubing (200 mm long) for corrosion protection
Suitable for:
Wall thicknesses of 50520 mm (infinitely adjustable)
Openings of 55110 mm
Factory tested pressure-tight up to the gap between the gas pipe and protective tube: 2.5 bar; gas pipe: 6 bar

Note: To protect the pipeline, a gas flow monitor GS must be selected in accordance with TRF 2012.
