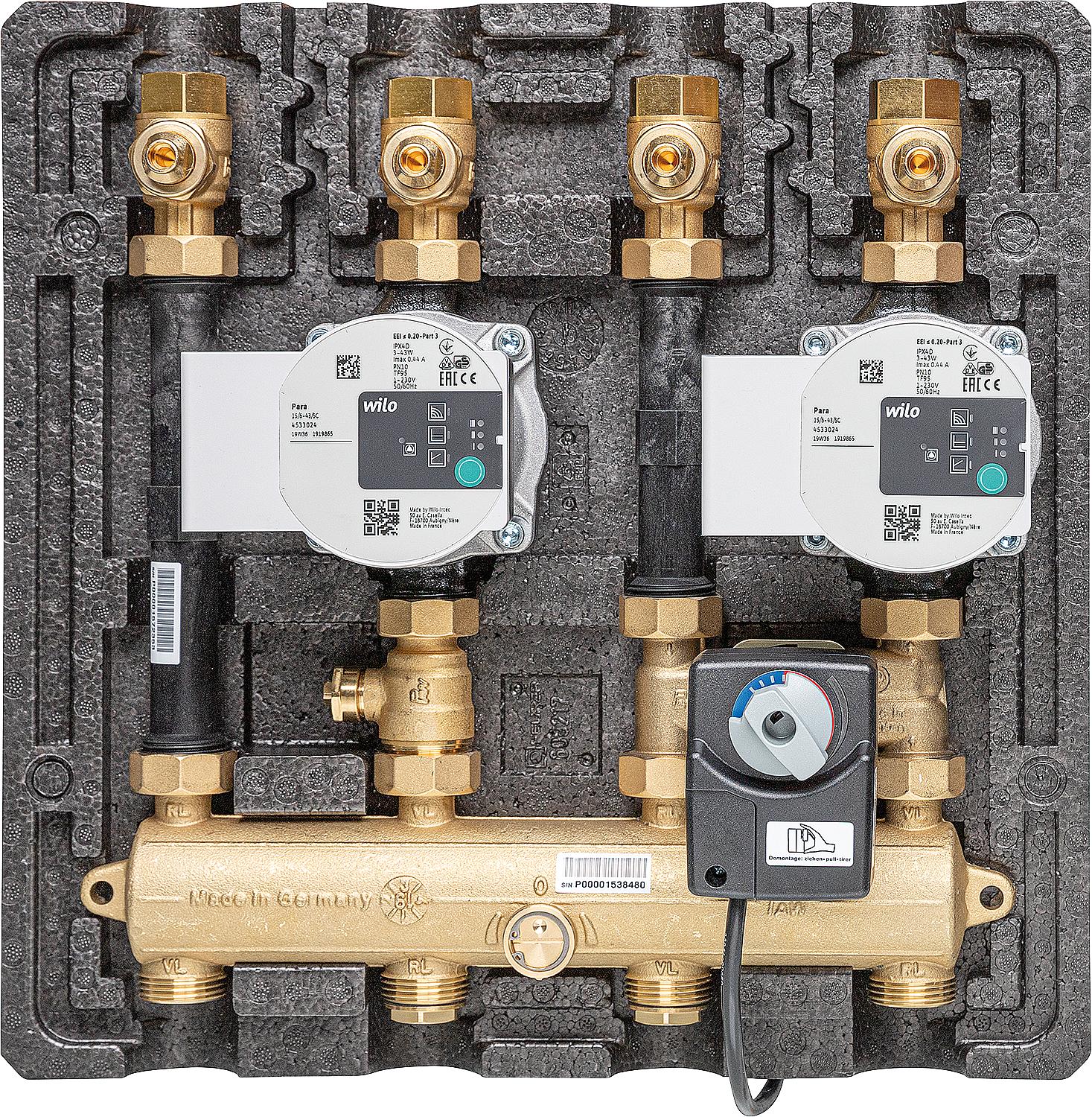

Modular distribution group Thermax DN20(3/4") 1x direct, 1x mixed, motor SR2, 2x Wilo Para SC15/6-43

• Thermax system
• Particularly suitable for applications with two different temperature levels, e.g. connected to a consumer with a high flow temperature (radiator) and to a consumer with a low temperature (underfloor heating)
• The modular Thermax distribution system is a pre-assembled valve group for heating circuits.
• It consists of a Thermax module distributor, two Thermax heating circuit modules and a functionally optimized design insulation.

Scope:

• For wall-mounted water heaters and boilers

Recommended area of ​​application:

• K31: up to 23 kW; 20 K up to 1000 l/h
• K32: up to 19 kW; 20 K: up to 820 l/h

Technical data:

• Generator connection DN 25 (1") male thread / DN 20 (3/4") female thread
• Consumer connection DN 20 (3/4") internal thread
• Max. pressure 10 bar
• Maximum operating temperature 110°C
• EPP/ABS insulation
• Pump: Wilo Para SC 15/643
• Leading line is on the right by default, easily changed on site
• Kvs value distributor 7.8 / mixed 3.0 / unmixed 4.3
