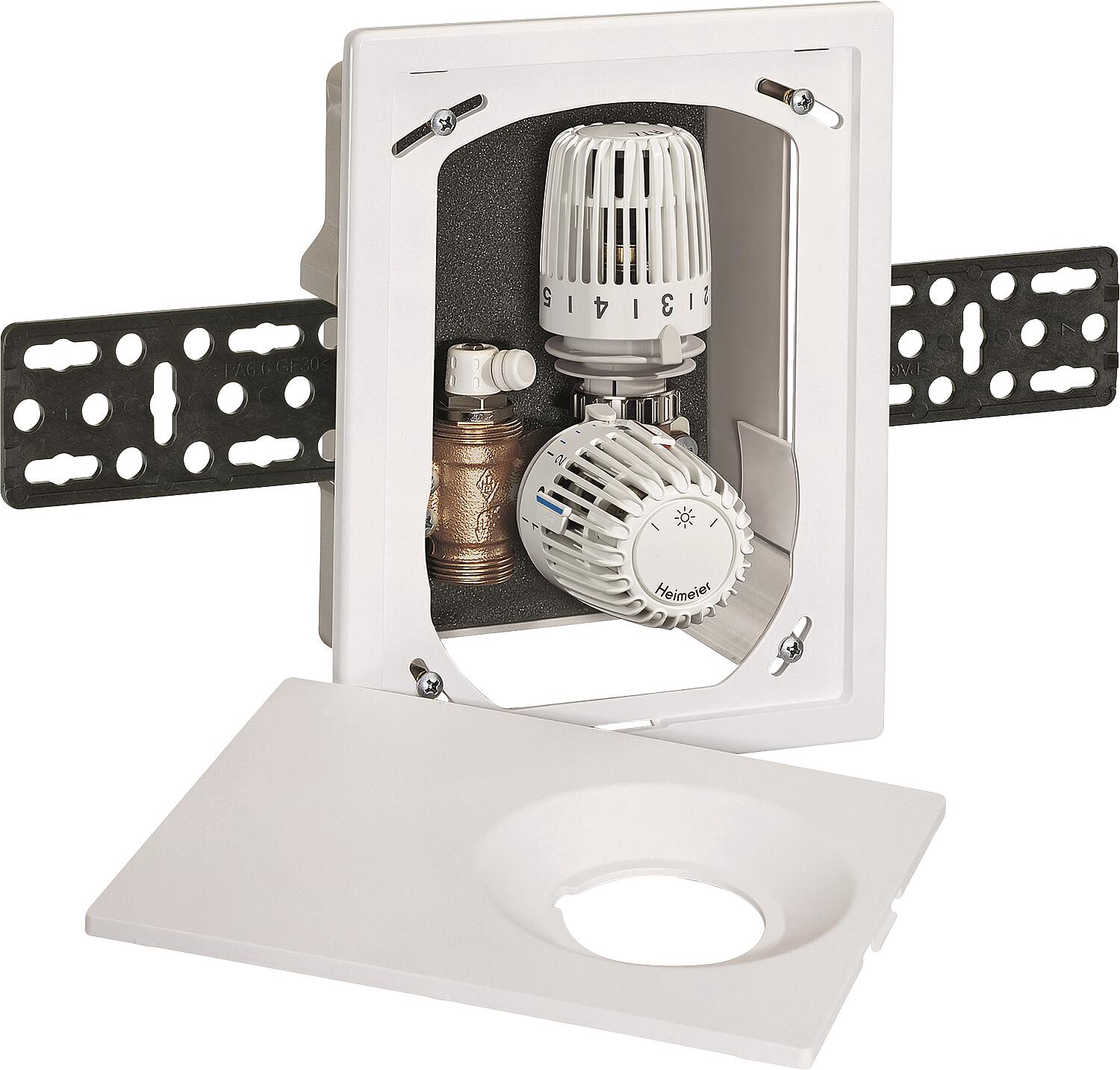

Multibox IMI Heimeier Eclipse K-RTL, cover and thermostat head white (RAL 9016)

Name: Multibox IMI Heimeier Eclipse K-RTL, cover and thermostat head white (RAL 9016)
Brand: IMI HEIMEIER
SKU: 90 093 16
Price: 228.95 CHF
Availability: InStock

Bewertungen

| Eine Rezension schreiben

CHF 228.95

% Sold out

Taxes included.

Quantity

Lieferung Schweiz

Voraussichtliche Lieferung nach Versandart:

Economy (kostengünstig) wird berechnet
Express (Express-Lieferung) wird berechnet
Priority (schneller Standard) wird berechnet

Manufacturer:

Order No.:

Availability:

IMI HEIMEIER

90 093 16

sofort lieferbar

Security policy

Delivery terms

Return policy

View full details

Beschreibung Spezifikation Bewertungen

Automatic hydraulic balancing via integrated flow regulator
Flush-mounted wall box including frame and mounting rails
With shut-off and ventilation
Cover white RAL 9016

Technical data:

Valve material: Corrosion-resistant red brass
Maximum operating pressure: 10 bar
Operating temperature range: 2°C to 90°C
Maximum differential pressure: 60 kPa
Flow rate range: 10150 l/h
Maximum differential pressure: 60 kPa
Installation depth: 60 mm
Connection: DN 20 (3/4") Eurocone AG

For individual room control and return temperature limitation of, for example, combined underfloor and radiator heating systems.
With thermostat head type K, white and RTL head, white
Thermostat head setting range: 6-28°C
RTL head adjustment range: 0-50°C
Key number RTLHead: 0 5
