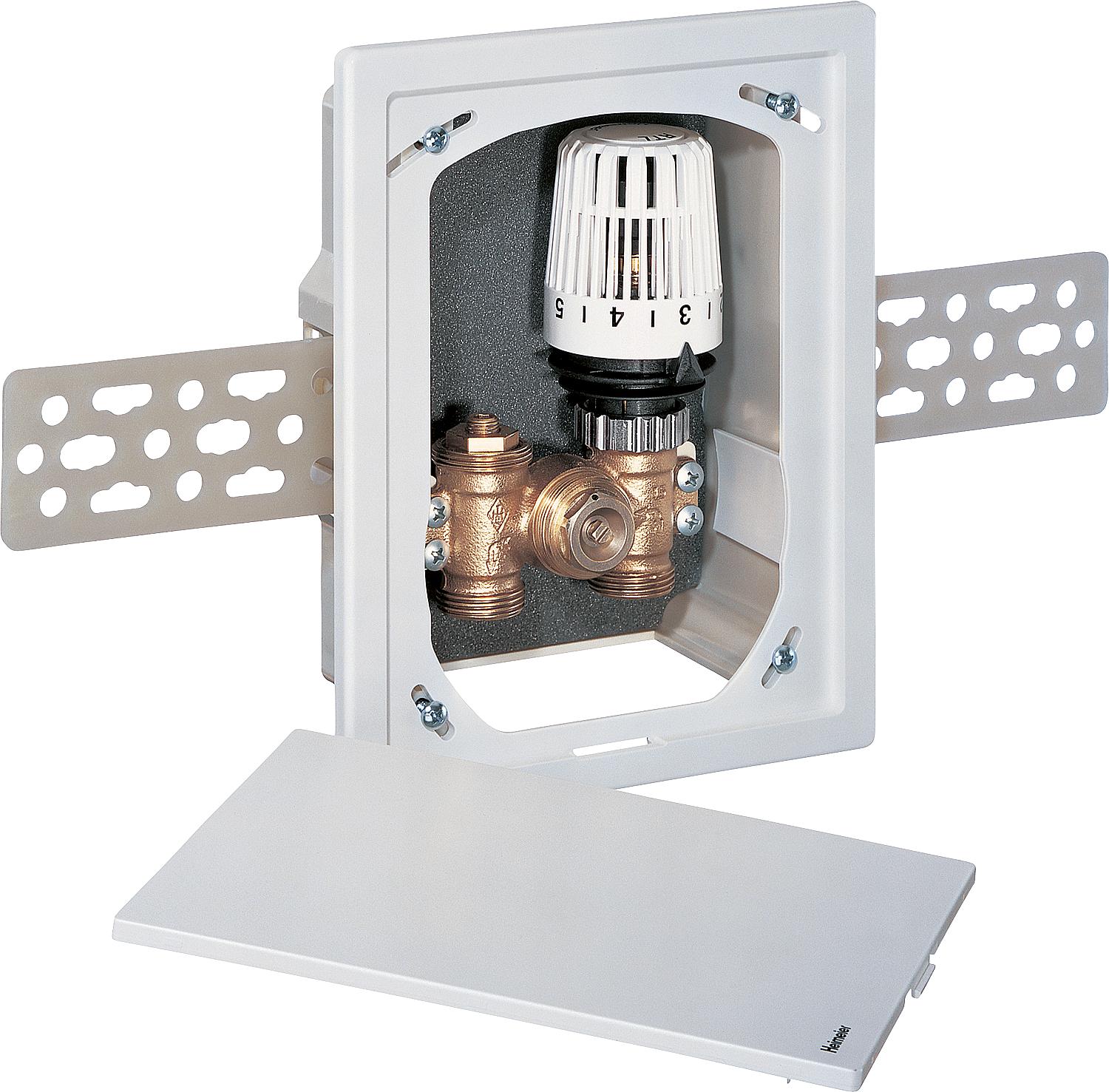

Multibox IMI Heimeier Type C/RTL cover white RAL 9016

• Flush-mounted wall box including frame and mounting rails
• Cover white RAL 9016
• Kvs value: 1.35
• Connection AG DN 20 (G 3/4")
• Installation depth: 60 mm

Valve housing:

• Made of corrosion-resistant red brass
• With vent valve
• Shut-off/regulating spindle

• Thermostat top:
• With stainless steel spindle and double O-ring seal
• Outer O-ring replaceable without draining the system
• In conjunction with compression fittings for plastic, copper, precision steel or composite pipe

• For limiting the return temperature of, for example, combined underfloor heating systems with radiators
• With return temperature limiter RTL
• Including closed cover plate
• RTLF sensor element:
• Setpoint range: 10°C ... 50°C
• Key number: 1 5
• Ref. No.: 930300.800
