Multibox IMI Heimeier Type F, individual room control, color white RAL 9016

Name: Multibox IMI Heimeier Type F, individual room control, color white RAL 9016
Brand: IMI HEIMEIER
SKU: 90 110 70
Price: 171.95 CHF
Availability: InStock

Bewertungen

| Eine Rezension schreiben

CHF 171.95

% Sold out

Taxes included.

Quantity

Manufacturer:

Order No.:

Availability:

IMI HEIMEIER

90 110 70

sofort lieferbar

Security policy

Delivery terms

Return policy

View full details

Beschreibung Spezifikation Bewertungen

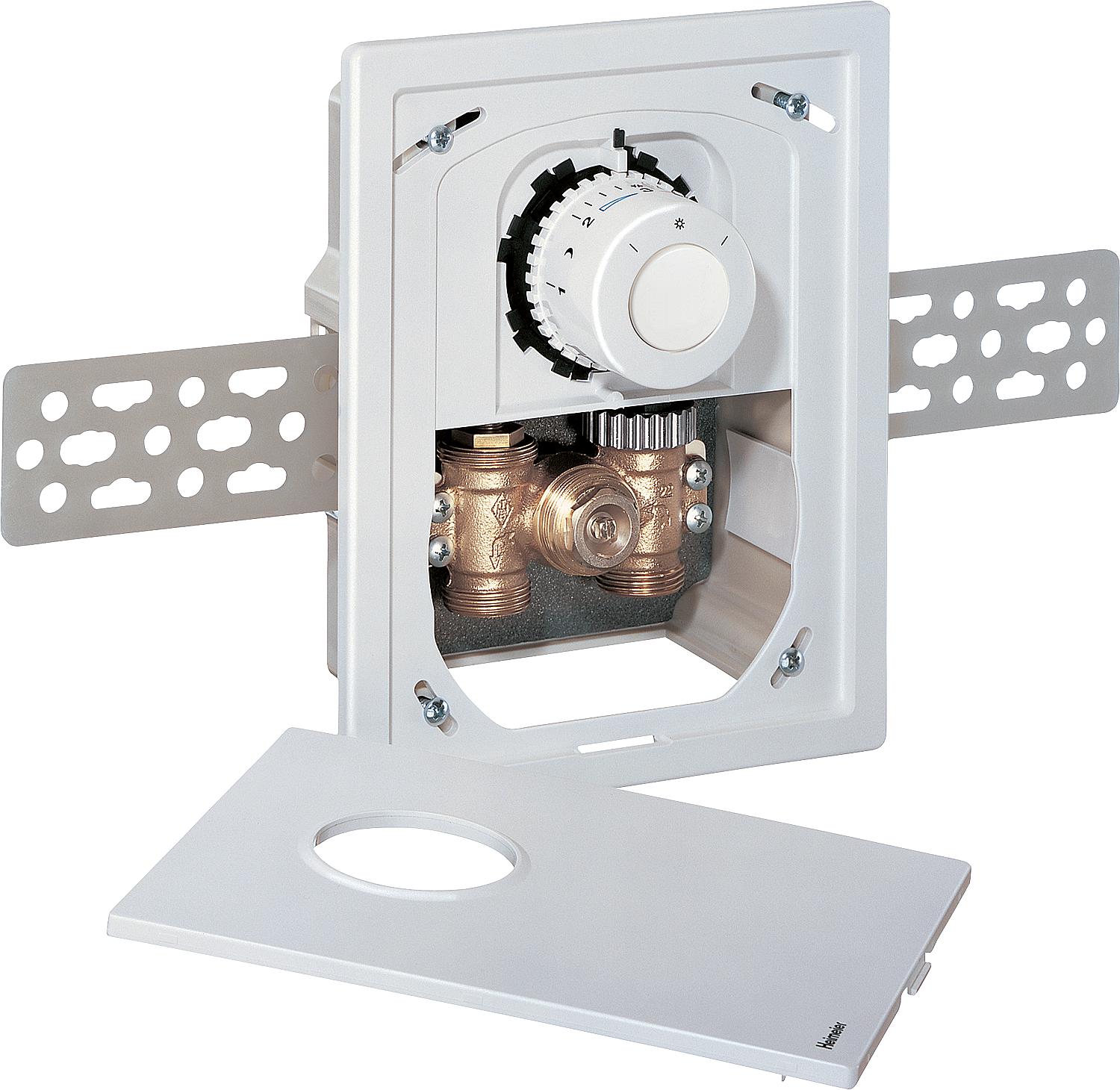

Flush-mounted wall box including frame and mounting rails
Cover white RAL 9016
Kvs value: 1.35
Connection AG DN 20 (G 3/4")
Installation depth: 60 mm

Valve housing:

Made of corrosion-resistant red brass
With vent valve
Shut-off/regulating spindle

Thermostat top:
With stainless steel spindle and double O-ring seal
Outer O-ring replaceable without draining the system
In conjunction with compression fittings for plastic, copper, precision steel or composite pipe

For individual room temperature control of, for example, underfloor heating systems
With thermostatic valve
With integrated thermostat head and cover plate
Thermostat head white RAL 9016
Thermostat head:
With capillary tube and valve connector
Setpoint range: 6°C ... 27°C
Key number: 1 5
Ref. No.: 930600.800
