Multibox IMI Heimeier type K, individual room control, cover and thermostat head white

Name: Multibox IMI Heimeier type K, individual room control, cover and thermostat head white
Brand: IMI HEIMEIER
SKU: 90 511 80
Price: 105.60 CHF
Availability: InStock

Bewertungen

| Eine Rezension schreiben

CHF 105.60

% Sold out

Taxes included.

Quantity

Manufacturer:

Order No.:

Availability:

IMI HEIMEIER

90 511 80

sofort lieferbar

Security policy

Delivery terms

Return policy

View full details

Beschreibung Spezifikation Bewertungen

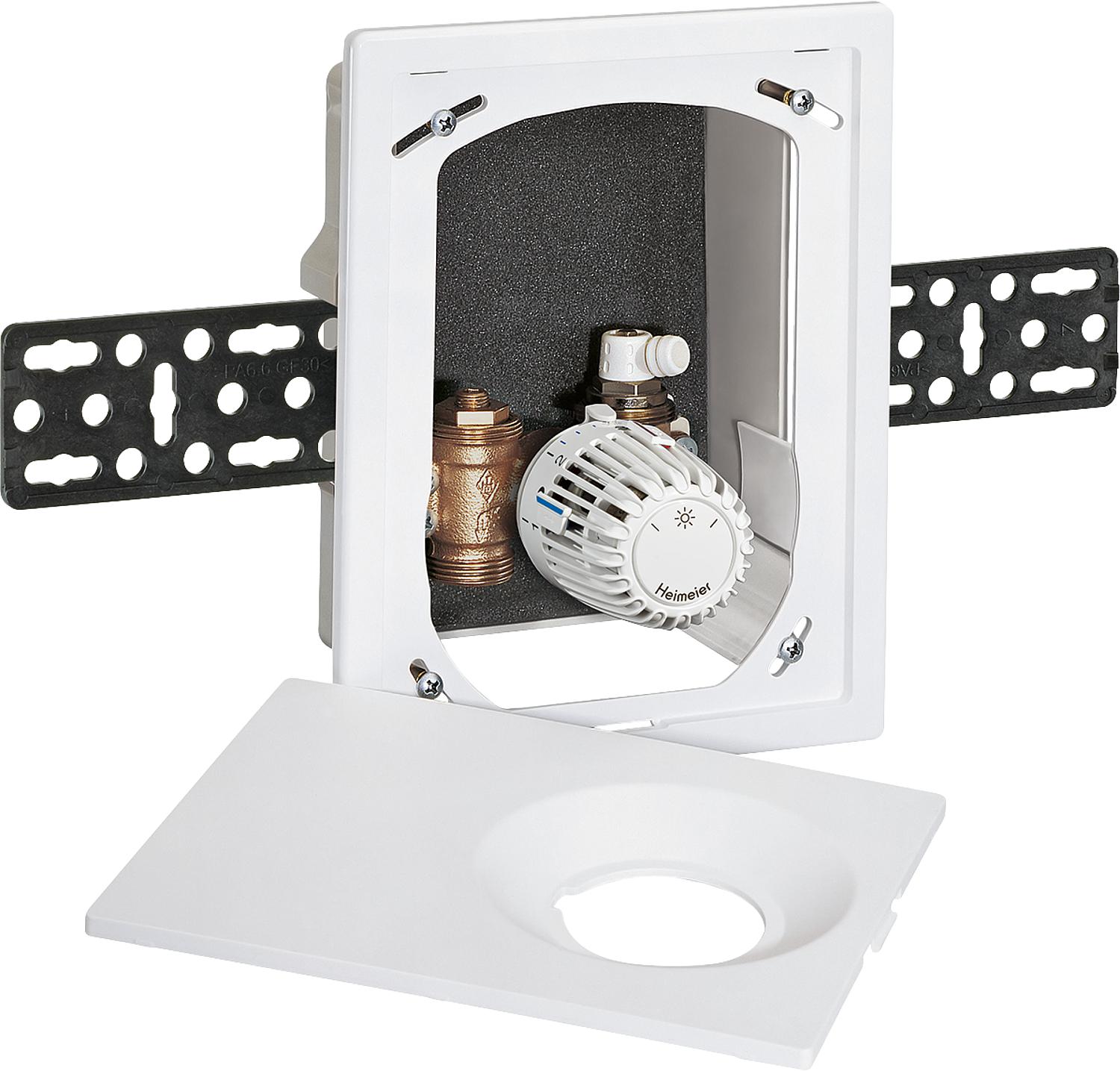

Flush-mounted wall box including frame and cover plate

and mounting rails

Cover and thermostat head white RAL 9016

Valve housing:

made of corrosion-resistant red brass
With vent or flushing valve
With shut-off/regulating valve

Thermostat top:
With stainless steel spindle and double O-ring seal
Outer O-ring replaceable without draining the system
Connection AG DN20 (¾") Eurocone, in conjunction with compression fittings
for plastic, copper, precision steel or composite pipe
Height: 220 mm, Width: 175 mm, Installation depth: 60 mm

For individual room temperature control of, for example, underfloor heating systems
Thermostat head K
Setpoint range: 6°C - 28°C
Key number: 1 5
Ref. No.: 930200.800
