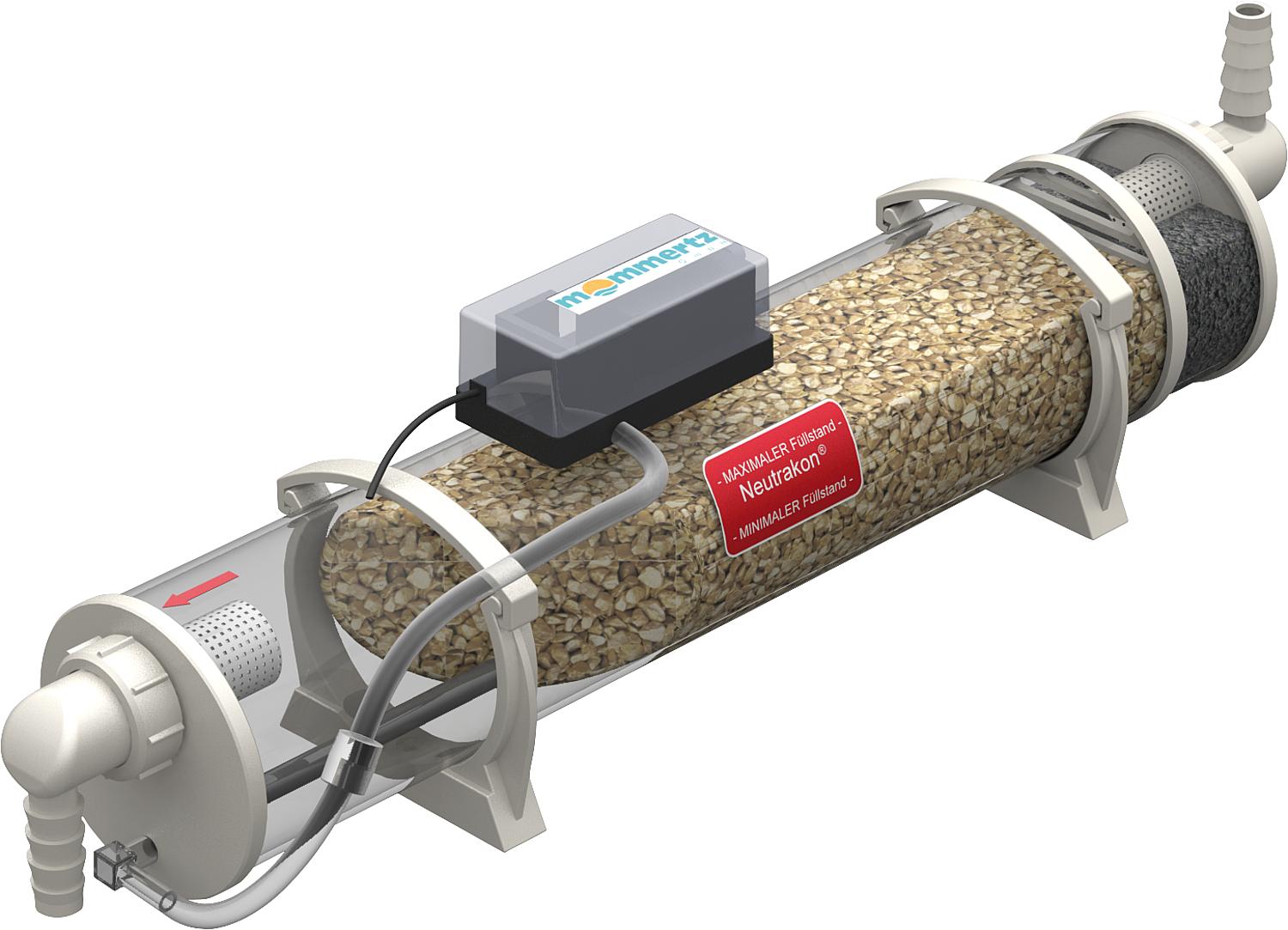

Neutralizer type 05/BGN for oil-fired condensing boilers up to 55kW

• With activated carbon pre-chamber

Technical data:

• Fuel: Heating oil eL (min. pH 2.0)
• Inlet temperature: max. 60°C
• Connections: DN 40 or hose 20 mm
• Contents: 4.5 kg granules/Neutrakon® and 0.25 kg activated carbon D47
• Pipe diameter: 120 mm
• Installation dimensions (L x W x H): 600 x 150 x 195 mm
• Maintenance interval: once a year

Scope of delivery:

• NEUTRAKON® 05/BGN
• 4.5 kg granules/Neutrakon®
• 0.25 kg activated carbon

• For oil-fired condensing boilers up to 55 kW
