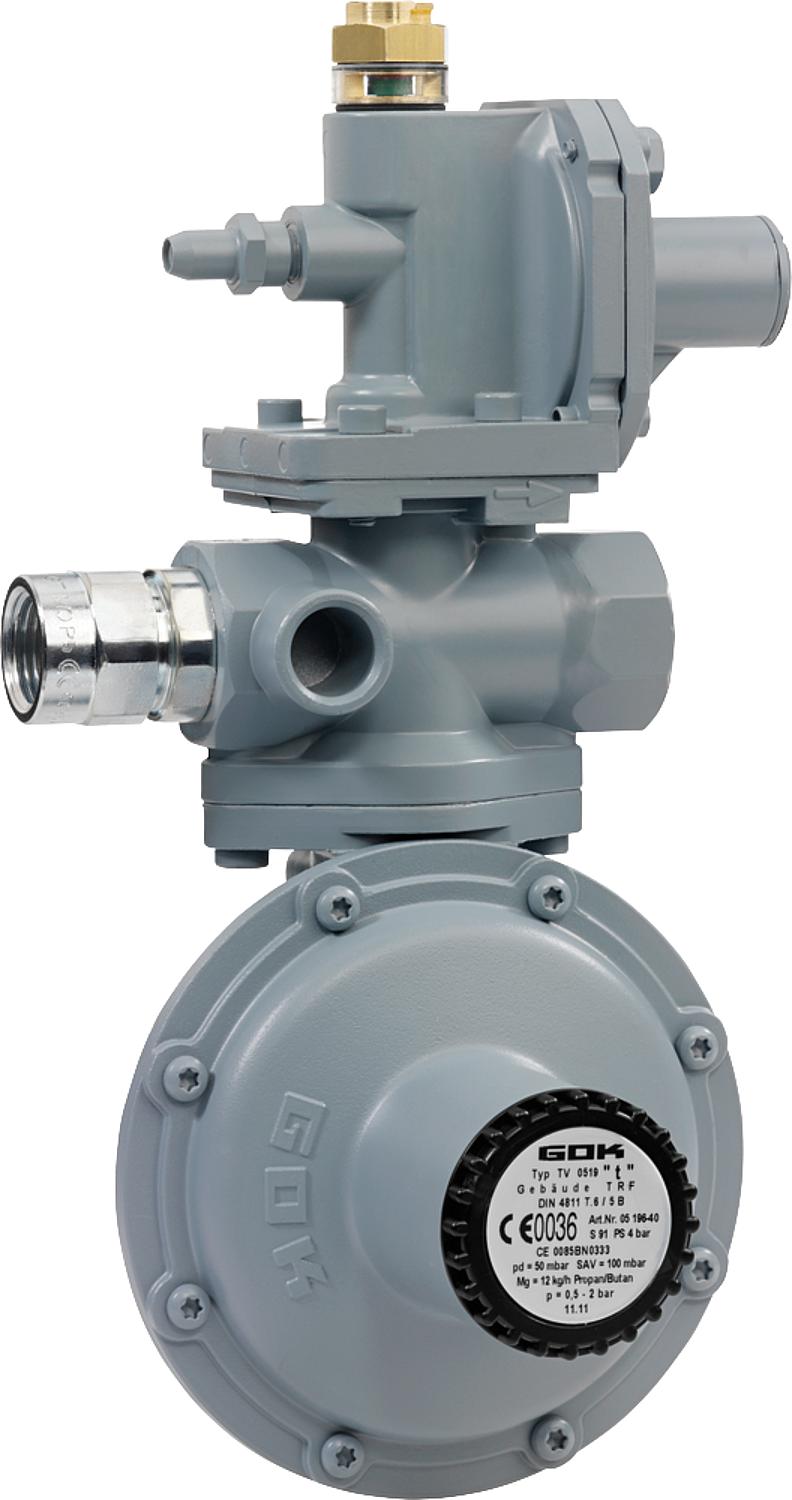

Low-pressure regulator R1/2" 12kg/h 50mbar Also replaces 6Kg p/hr.

• Fixed setting for indoor installation in conjunction with a pre-stage controller (58 004 28)
• With safety shut-off valve OPSO (SAV) and additional safety diaphragm, this eliminates the need for the safety relief valve PRV and does not require venting the excess pressure to the outside!
• With thermal shut-off device TAE

for the automatic locking of the

Gas flow

when the temperature rises above 100°C

• Inlet: DN 15 (1/2") internal thread
• Outlet: DN 20 (3/4") internal thread
• Outlet pressure: 50 mbar
• Inlet pressure: 0.5–2.5 bar
• Output: 12 kg/h
• Conformity: EU type-examination certificate DGR, GGV
