Rooftop photovoltaic systems require a disconnect device at the point where the string cables enter the building, connected to the building's power supply. This allows firefighters to carry out firefighting operations in an emergency without being unnecessarily endangered. Once the power supply is restored, the PV Next fire service switch automatically reconnects the PV strings.
• Suitable for remote shutdown of the DC side by the fire brigade in accordance with VDE-AR-E2100-712
• Approval according to low-voltage switchgear and controlgear assemblies IEC 61439-1:2011 and EN 61439-2:2011
• Switching capacity of load break switches: IEC 60947-3, DC-PV1
• DC fire brigade switch:
- Automatic shut-off at temperatures above 100°C
- Shutdown by undervoltage release
- Automatic reconnection after the control voltage (230 VAC) is restored.
- With signal contact
- Connection of the fire brigade switch control unit (230 VAC) via cable glands (8-12 mm ø), max. conductor cross-section: 1.5 mm²
- Connection of the signal contact 24 VDC via cable glands (8-12 mm ø) max. conductor cross-section: 1.5 mm²
• Remote shutdown switch:
- Automatic restart after power failure: Yes
- Number of actuation cycles: 10,000
- Control voltage: 100 V AC - 250 V AC 50/60Hz
- Type of power circuit shutdown: Undervoltage release or manual switch operation
- Switch-off time: 1.5 s
• Protection rating: IP65
• Ambient temperature: -20 °C to +50 °C

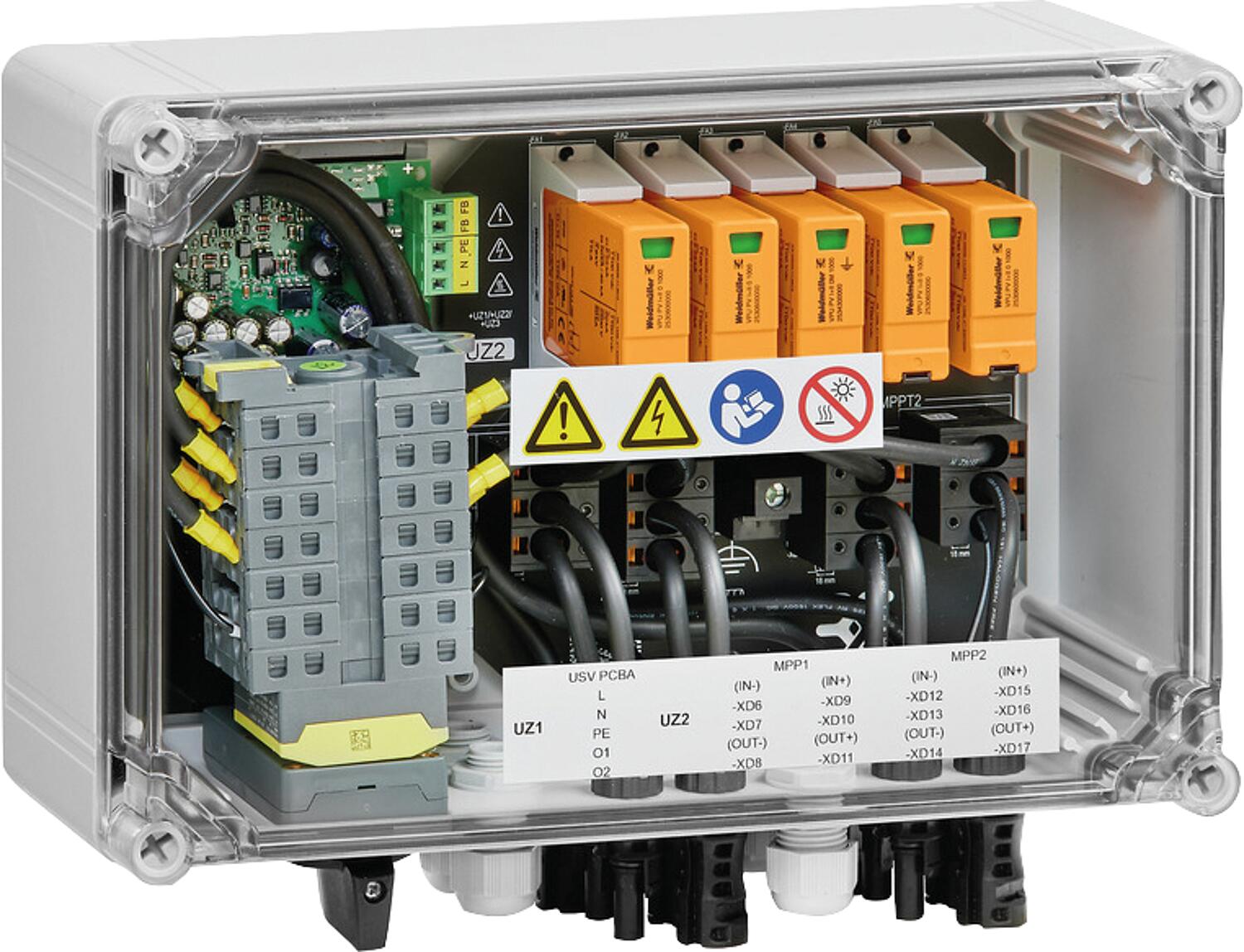

• All components are housed in a fiberglass-reinforced plastic casing. Refer to the product information in the datasheet.
| Brand | Weidmüller |
|---|---|
| Connection | MC4-Evo 2 connector |
| Manufacturer part number | 8000098970 |
| Unit price | CHF/piece |
| Dimensions H x W x D [mm] | 238 x 300 x 132 |
| Ref. No. | 8000098970 |
| EAN | 4099986665293 |
| Designation | PVC DC 2I 1O 2MPP RD SPD1R EVO 11 |
