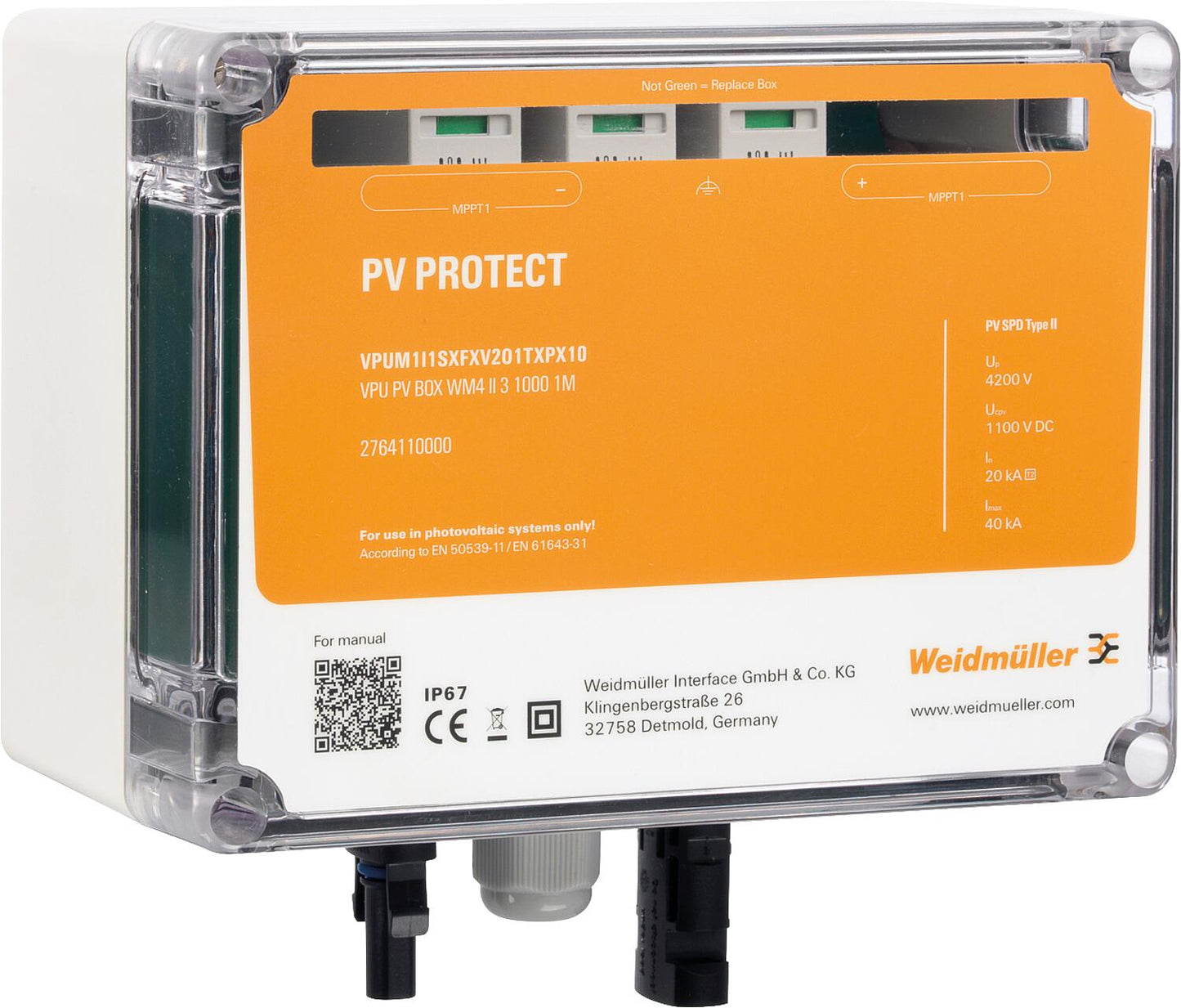

PV Protect is a solution for optimal protection of the inverter against overvoltages. It is very compact and requires only Y-cables for connection to the PV lines. Therefore, it is a perfect product for retrofitting existing PV installations in residential buildings with surge protection.
• Surge protection box suitable for protecting the DC side. Max. string voltage 1000 V
• In accordance with the standard, EN 50539-11: 2013+A1:2014 IEC 61643-31: 2018
• Protection class: IP65 and 67
• Operating temperature: -40 °C to 85 °C
• Leakage current In (8/20 µs): 20 kA
• Leakage current, max. (8/20 µs): 40 kA
• Requirement class: Type I/II
• Lightning test current Iimp (10/350 µs): 6.25 kA
• Total leakage current Itotal (10/350µs): 12.5 kA
• Total leakage current Itotal (8/20µs): 50 kA
• ISCPV short-circuit withstand capability: 11 kA
• Maximum voltage of the PV system (UCPV): 1,100 V
| Brand | Weidmüller |
|---|---|
| Connection | WM4C connector |
| Manufacturer part number | 2764140000 |
| Unit price | CHF/piece |
| Dimensions H x W x D [mm] | 168 x 160 x 91 |
| Ref. No. | 2764140000 |
| EAN | 4064675016113 |
| Designation | VPUM1I1SXFXV1O1TXPX10 |
