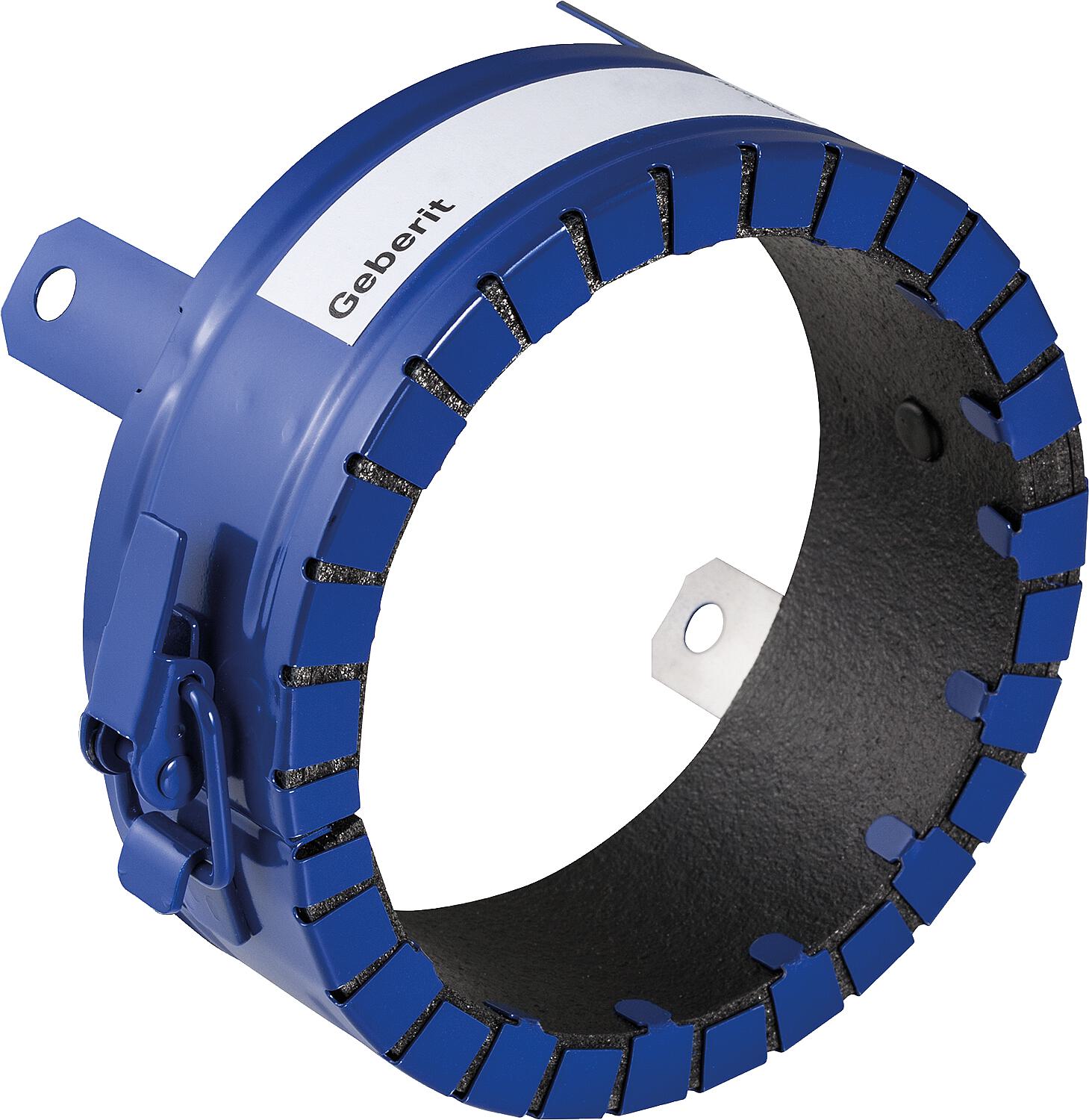

Rohrschott 90 Plus Ø 125 / 135 mm

• To protect against the spread of smoke and fire
• For pipe penetrations 0-90° in wall or ceiling
• For installation in ceilings and walls with fire resistance F 30 to F 90
• For angled installation in ceilings and walls
• Material: Stainless steel
• For Geberit: Silent-Pro, db20, Silent-PP and PE

Characteristics:
• Fire resistance class R 30, R 60 and R 90 according to DIN 4102-11
• General type approval no. Z-19.53.2236

Scope of delivery:
• Concrete screws
• Structure-borne sound insulation
• Adhesive strips
• Warning sign
