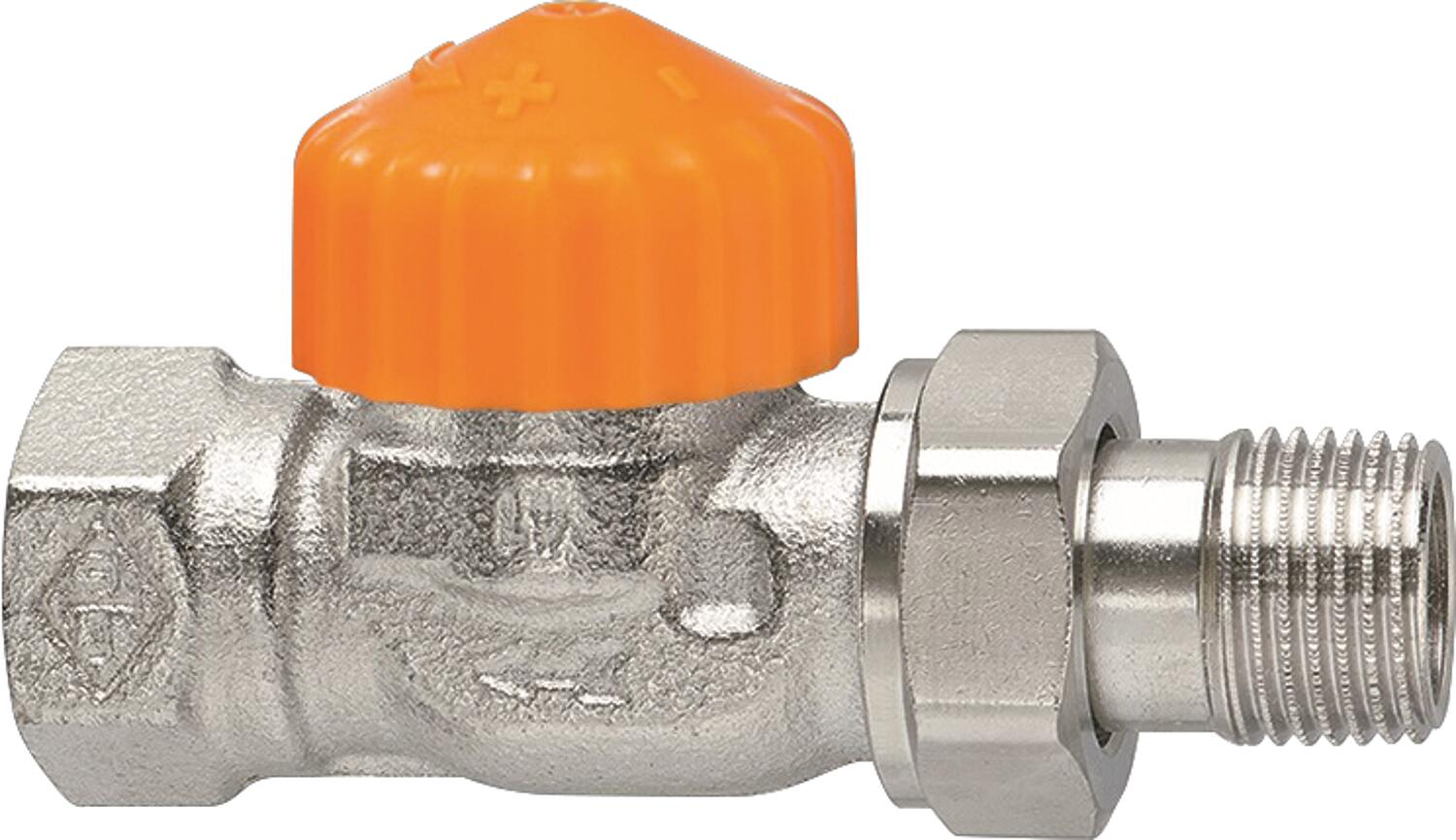

Return temperature limiter IMI Heimeier Eclipse, DN15(1/2"), straight-through design

• Automatic hydraulic balancing via integrated flow regulator
• For limiting the return temperature of, for example, combined underfloor and radiator heating systems
• For small underfloor heating areas up to approx. 15 m²
• Suitable RTL head, order no. 90 032 37

Technical data:

• Valve material: Nickel-plated red brass, corrosion-resistant
• Maximum operating pressure: 10 bar
• Operating temperature range: 2°C to 120°C
• Maximum differential pressure: 60 kPa
• Flow rate range: 10150 l/h

• Connection: DN 15 (1/2")
