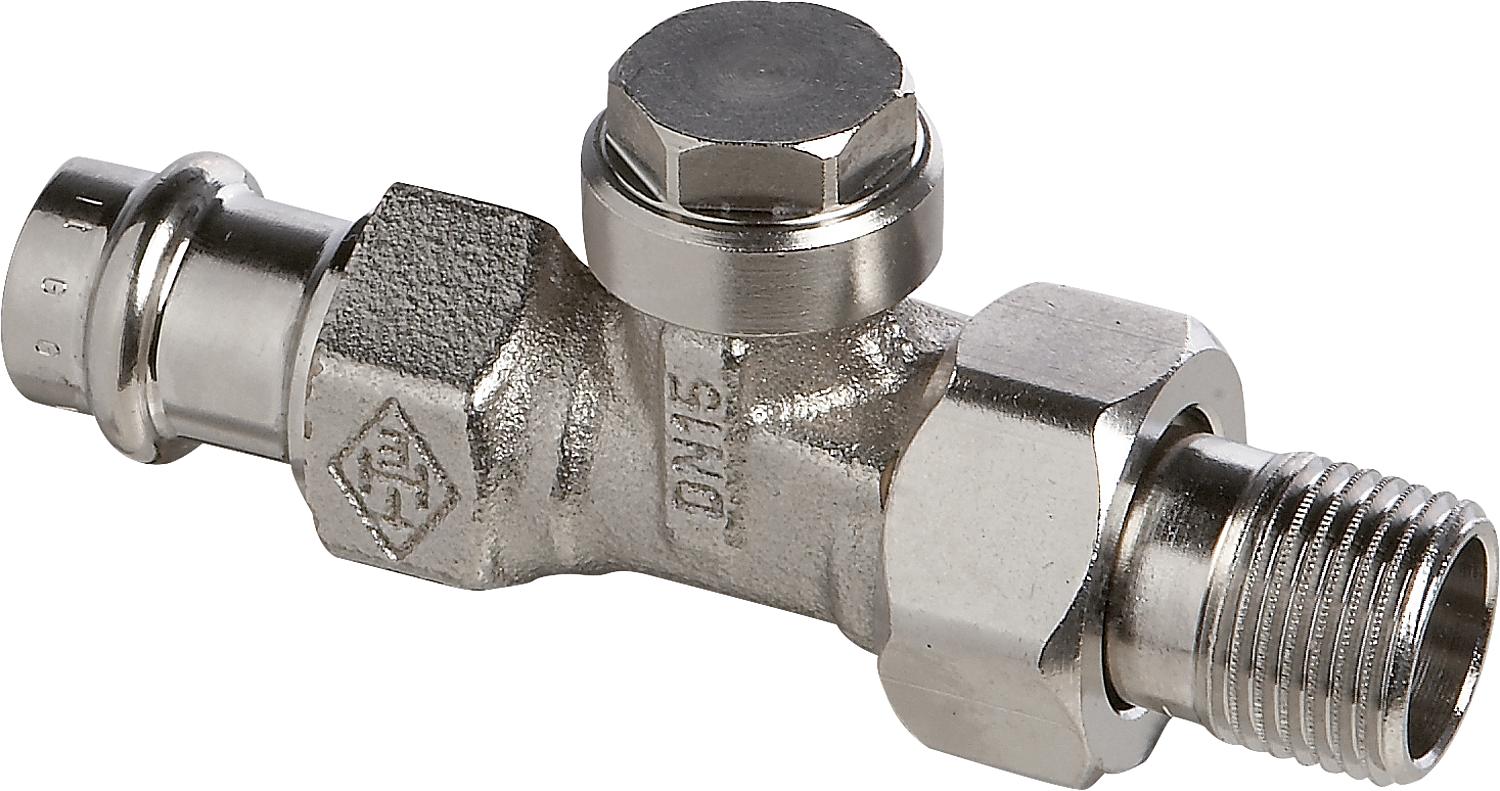

Rücklaufverschraubung IMI Regulux DN15 (1/2") x 15mm SC-Kontur, Durchgang

Bewertungen

| Eine Rezension schreiben

CHF 31.20

% Sold out

Taxes included.

Quantity

Manufacturer:

Order No.:

Availability:

IMI HEIMEIER

sofort lieferbar

Security policy

Delivery terms

Return policy

View full details

Beschreibung Spezifikation Bewertungen

• With shut-off and fine adjustment by
Double cone
• Without stroke limiter
• No change to the default setting when opening
or close
• Operation with a 5 mm hex key
• Housing made of corrosion-resistant,
dezincification-resistant red brass, nickel-plated
• Installation dimensions according to DIN 3842
• With emptying option
• Connection for emptying and filling device
(90 513 27)
• Sealing at spindle by EPDM O-ring
• Metal-sealing lid
• Permissible operating temperature with casing: 90°C
• Permissible operating pressure: 10 bar

• DN 15 (1/2”) AG
• Viega press connection 15 mm
• With SC contour
• Permissible operating temperature: 110°C
