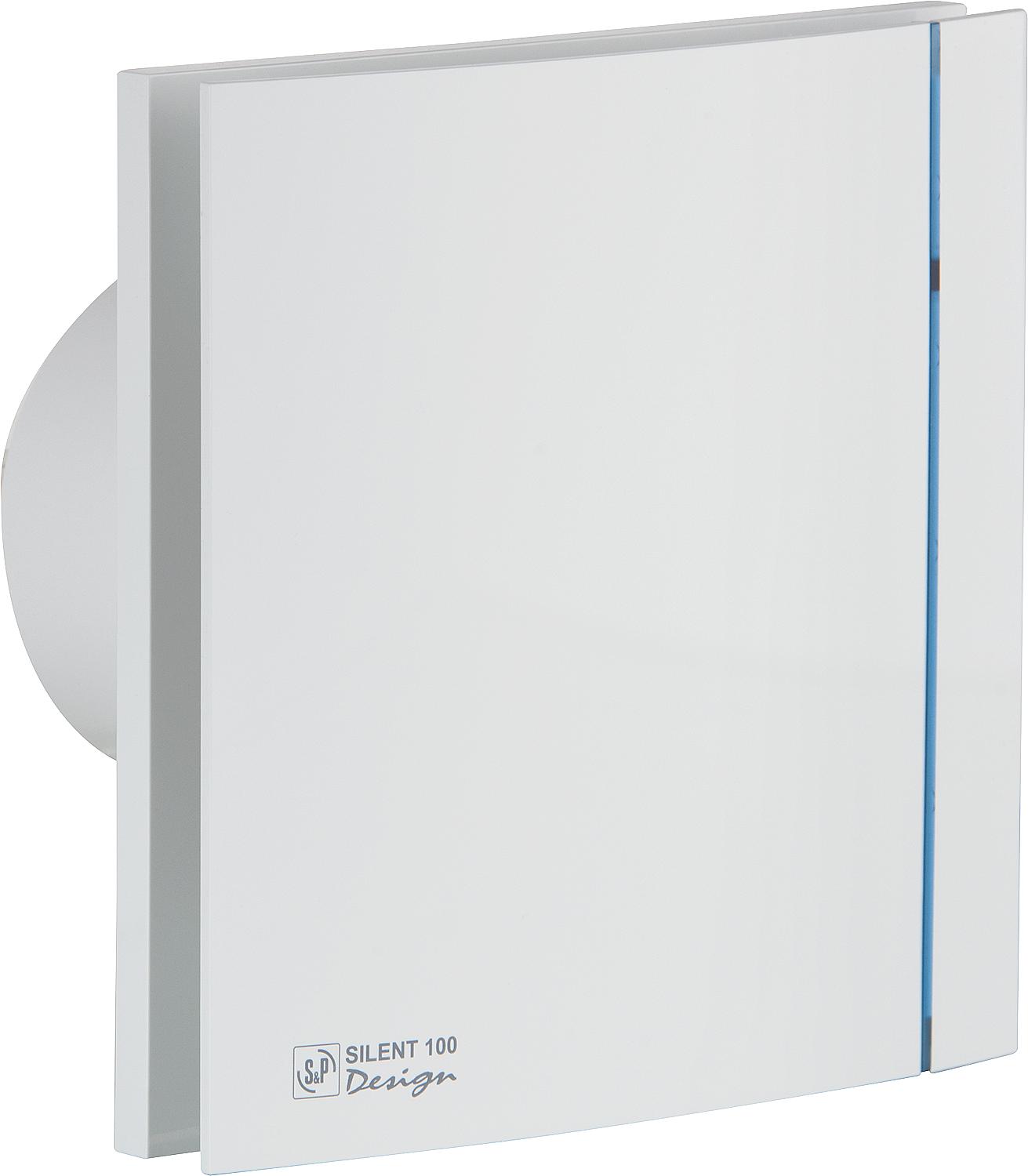

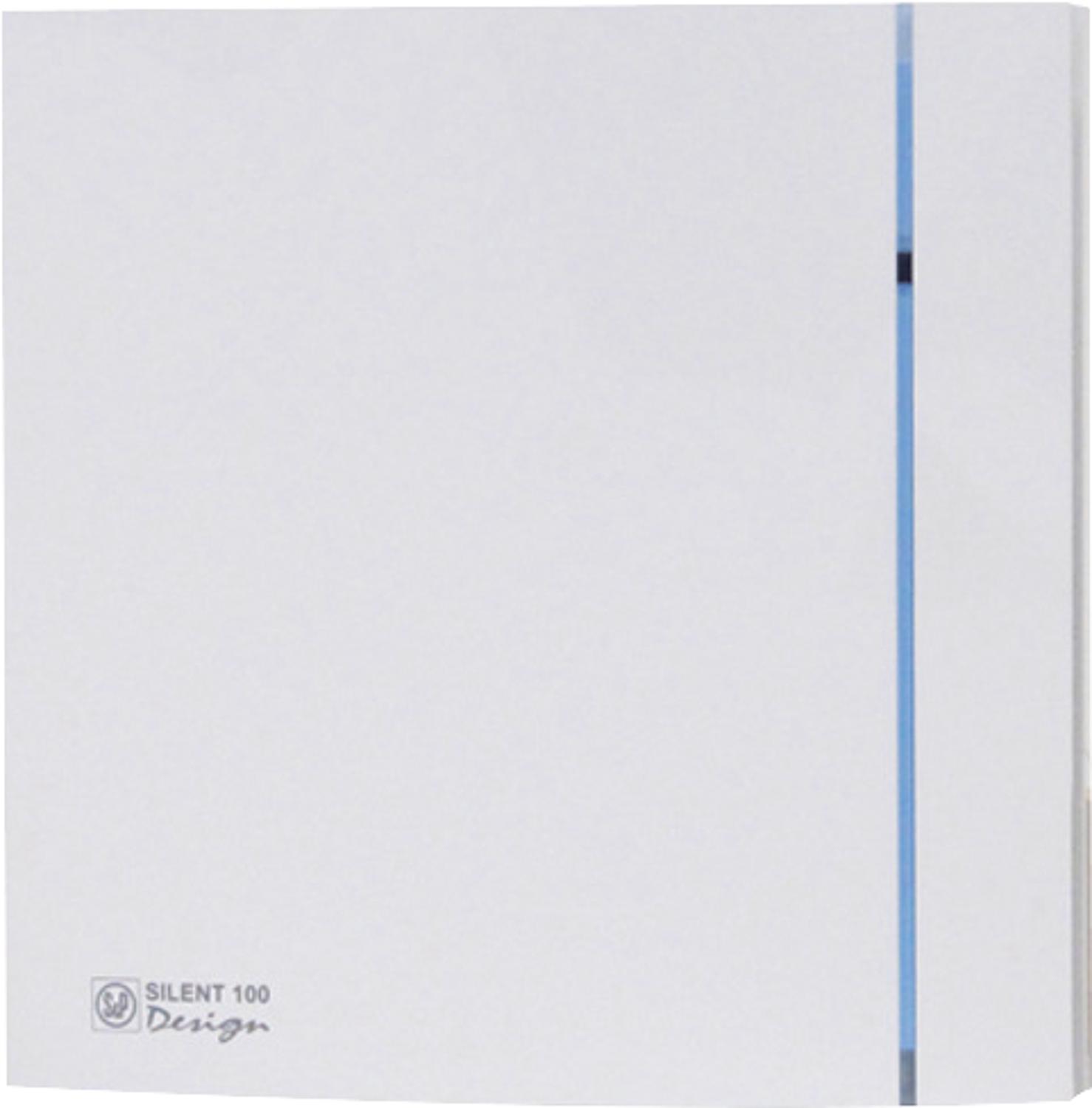

Kleinraumventilator S+P Silent-100 Design CHZ

Area of ​​application
• for bathrooms, toilets, pantries, storage rooms
• Ventilation of interior rooms
• Installation position: Ceiling / Wall
• Mounting directly on the exterior wall

Technical data:
• Design: Semi-radial
• Flow rate: 80 m³/h
• Maximum pressure: 18 Pa
• Sound pressure level 26.5 dB(A)
• Voltage: 230 V/50 Hz
• Power consumption: 8 W
• Protection class II
• Protection rating: IP45
• Maximum conveying temperature: 40°C
• Nominal diameter: 100 mm
• Speed ​​controllable: no
• Backflow preventer
• Operating light
