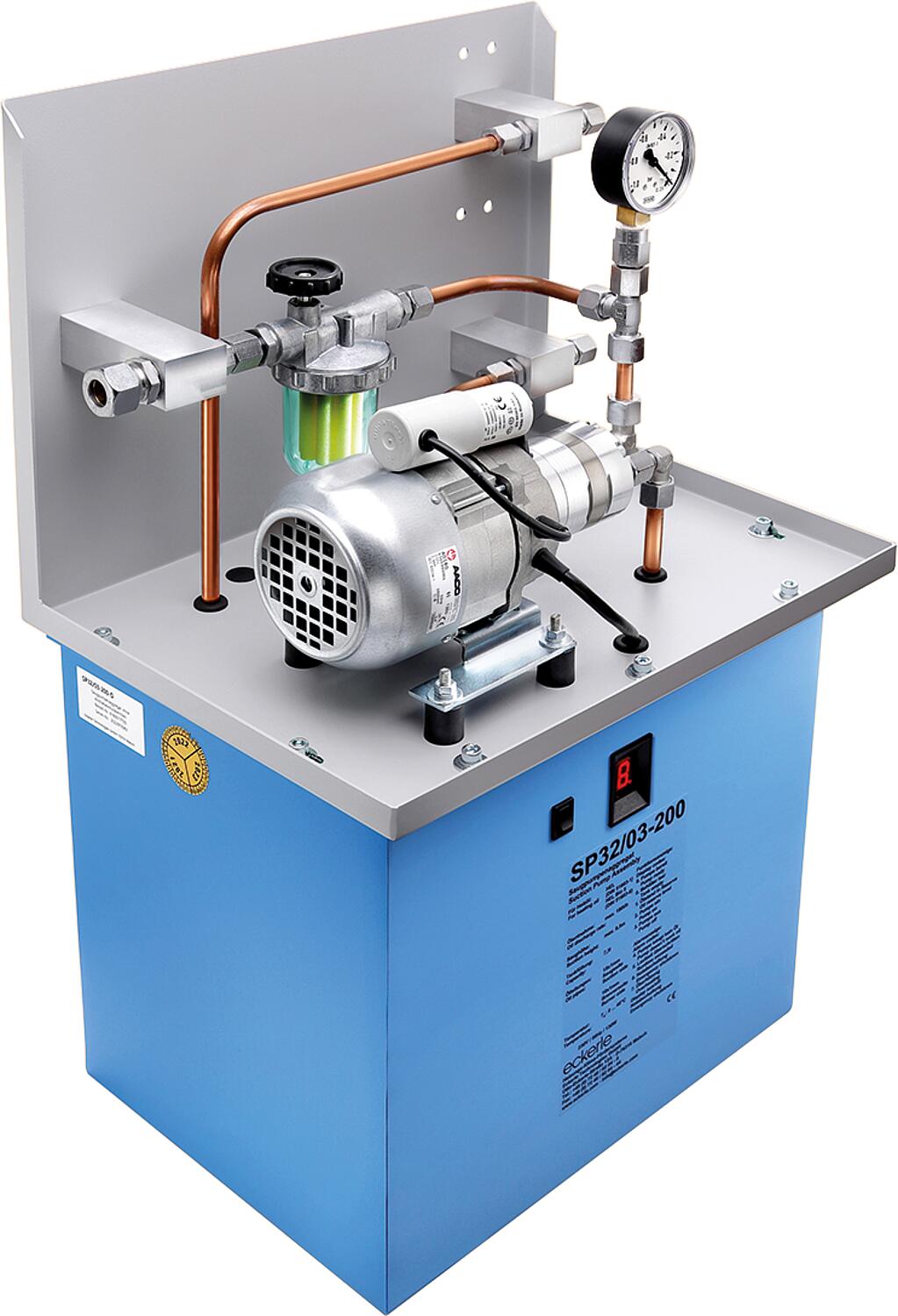

Eckerle SP32 03-200-O suction pump unit, without anti-siphon valve, 180 l/h at 9.5 m suction head

Name: Eckerle SP32 03-200-O suction pump unit, without anti-siphon valve, 180 l/h at 9.5 m suction head
Brand: eckerle
SKU: 31 002 28
Price: 2428.95 CHF
Availability: InStock

Bewertungen

| Eine Rezension schreiben

CHF 2,428.95

% Sold out

Taxes included.

Quantity

Manufacturer:

Order No.:

Availability:

eckerle

31 002 28

sofort lieferbar

Security policy

Delivery terms

Return policy

View full details

Beschreibung Spezifikation Bewertungen

High-performance internal gear pump
Electric motor
Floats, steering and safety device
Suction filter
Oil reservoir 7.3 l
Safety spill containment tray with electrical leakage monitoring and fault shutdown
LCD display for permanent operation and fault monitoring
Vacuum gauge
2 separate supply connections
Separate vent connection, pre-assembled and wired.
Line connections:
Suction side: ø 15 x 1 mm cutting ring fitting
Outlet side: 2 pcs. 10 x 1 mm cutting ring fittings
For supplying 2 oil burners with a maximum nozzle output of 180 l/h
Electrical connection: 230 V/50 Hz, 130 W
Maximum suction capacity: 215 l/h at a suction height of 4 m, 180 l/h at a suction height of 9.5 m
Dimensions (H x W x D): 635 x 460 x 245 mm

It can also be installed deeper than the oil burner.
A non-spring-loaded check valve must then be installed in the supply line between the suction pump unit and the consumer.
A non-return valve in the suction line and the suction pump unit is absolutely necessary.
