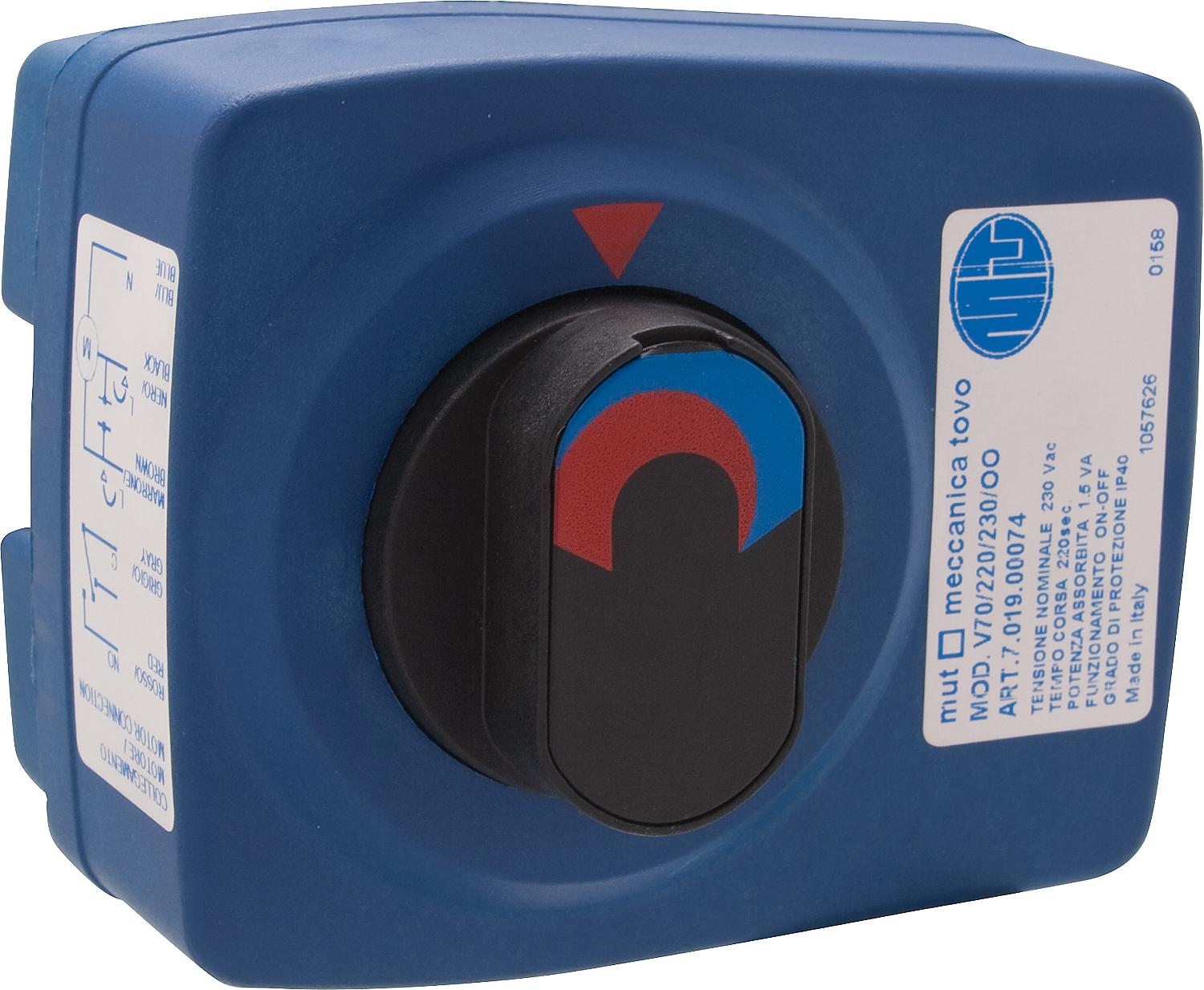

Continuous actuator, V70, 24V/AC 0-10V 90° 50 sec. incl. mounting kit K3

• Suitable for 3 and 4-way mixers up to DN40 of the 3000 and VMX series.
• Manually adjustable by pressing and turning the rotary knob.
• Compact design
• With built-in microswitch

Technical data:

• Angle of rotation: 90°
• Torque: 7 Nm
• Ambient temperature: max. 50°C
• Power consumption: 1.5 W
• Protection class: IP40
• Cable length: 1.5 m
• Dimensions (mm): 90 x 100 x 90

• Control type: continuous, 0...10 V
• Operating voltage: 24 V (AC)
