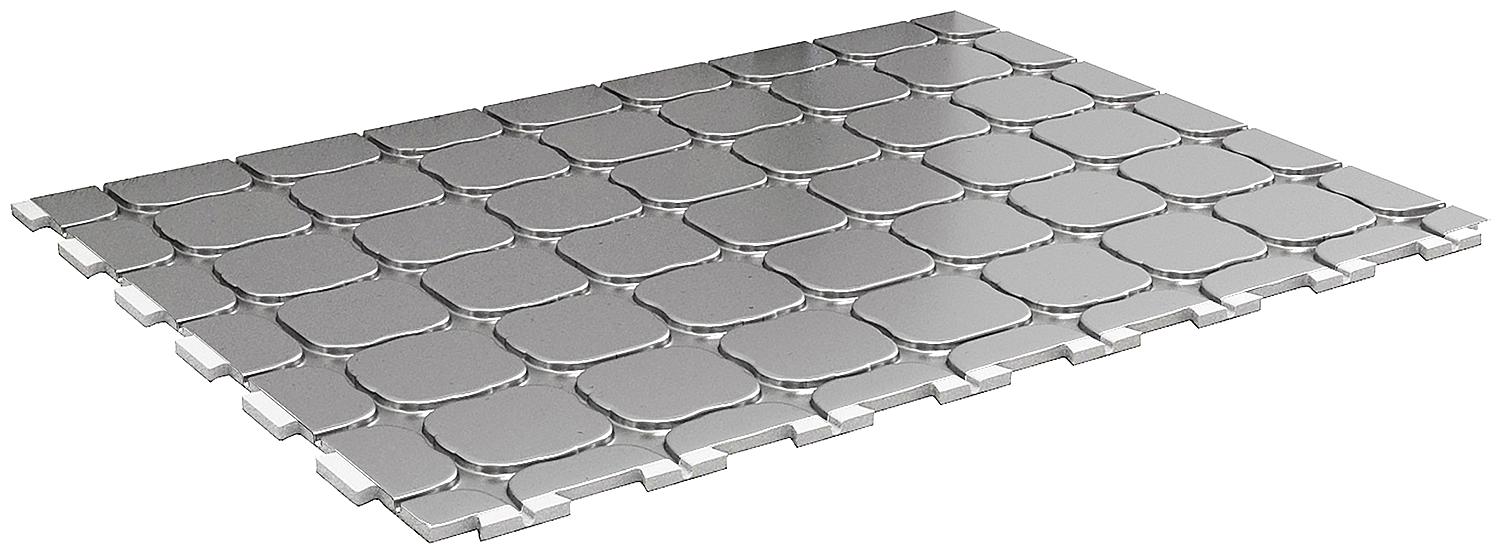

System clamping plate EVENES HeatBoard E, 5m², pack of 11

System clamping plate EVENES HeatBoard E, 5m², pack of 11

Bewertungen
CHF 126.70
CHF 126.70
% Sold out
Taxes included.

Lieferung Schweiz

Voraussichtliche Lieferung nach Versandart:

  • Economy (kostengünstig) wird berechnet
  • Express (Express-Lieferung) wird berechnet
  • Priority (schneller Standard) wird berechnet
Manufacturer:
Order No.:
Availability:
C+F Magnum
90 068 86
sofort lieferbar

Security policy

Delivery terms

Return policy
View full details
Beschreibung Spezifikation Bewertungen
  • Drywall surface heating system HeatBoard E, electric
  • Drywall system with a construction height of only 12 mm
  • Specially pre-formed aluminum sheets combined with EPS panels ensure that the Heatboard system has contact across the entire base and offers maximum heat transfer.
  • System panels can be assembled like puzzle pieces and can be cut to size with a knife.
  • For combination with hard, dry floor coverings such as laminate, wood or parquet.
  • Felt padding acts as a separating layer between the subfloor and the system panel.

  • Material: Polystyrene sheets with aluminum top layer
  • Cable spacing: 100 mm
  • Dimensions (L x W x H): 788 x 594 x 12 mm
  • Usable area: 0.451 m²
  • Deformation at 10% compression: 150 kPa
  • Long-term deformation: 45 kPa
  • Maximum operating temperature: 80°C
  • Fire protection class according to EN 135011: E
  • Fire protection class according to DIN 4102: B1
  • Packaging unit: 5.0 m²/carton (11 panels)
  • Scope of delivery:
  • System panels 5.0 m²
  • Felt pad for 5.0 m²
  • protective gloves
Brand C+F Magnum
Unit price CHF/piece
