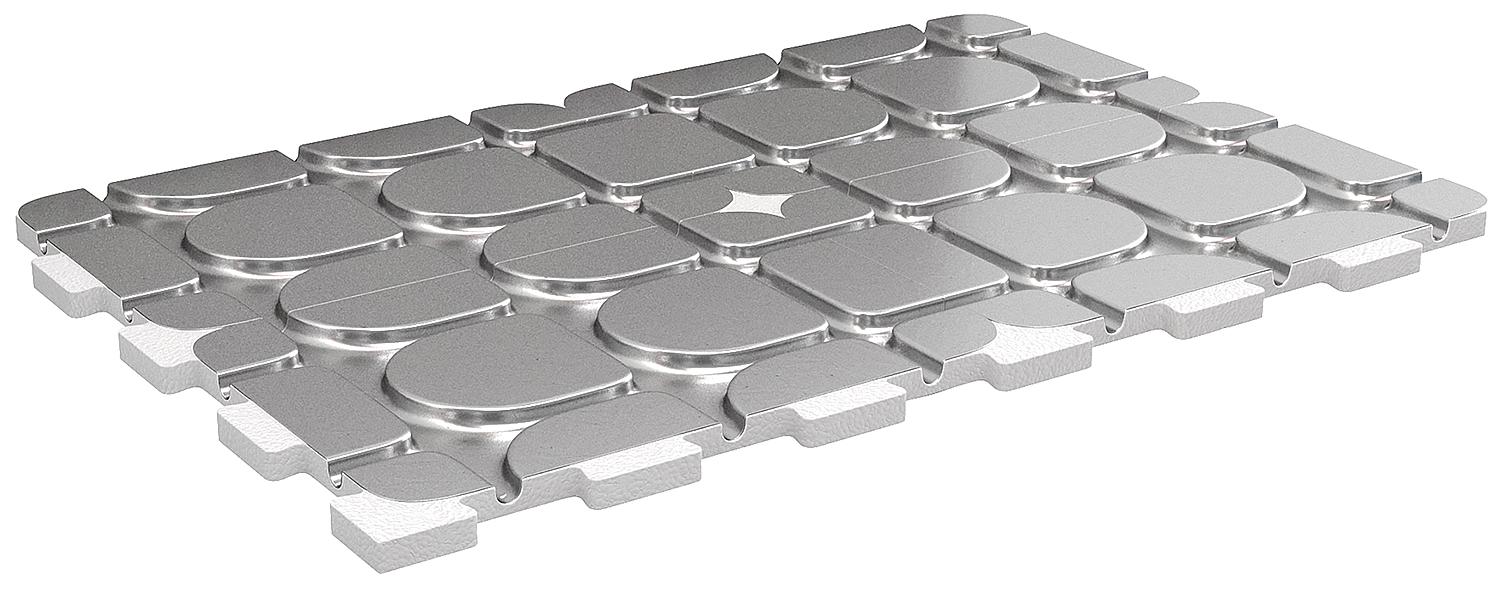

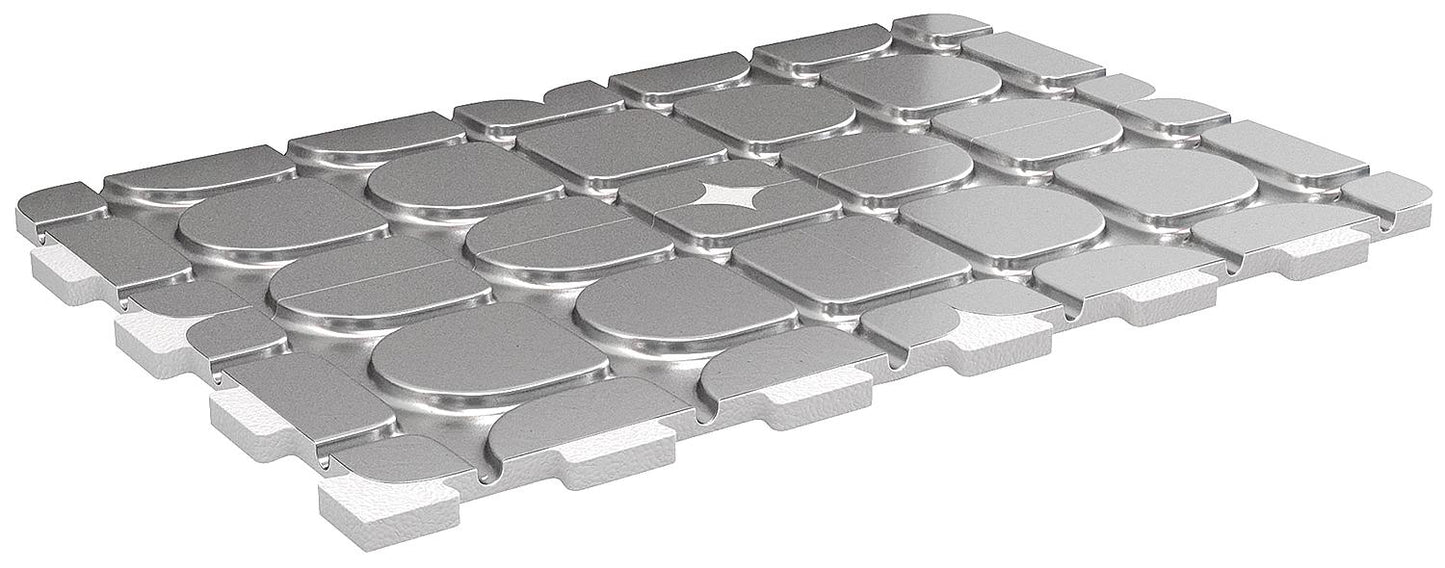

System clamping plate EVENES HeatBoard W, 4.8m², pack of 13

System clamping plate EVENES HeatBoard W, 4.8m², pack of 13

Bewertungen
CHF 124.30
CHF 124.30
% Sold out
Taxes included.
Manufacturer:
Order No.:
Availability:
C+F Magnum
90 068 85
sofort lieferbar

Security policy

Delivery terms

Return policy
View full details
Beschreibung Spezifikation Bewertungen
  • Drywall surface heating system HeatBoard W
  • For use in renovation projects for heating floors
  • Water-based system panel with a thickness of only 18 mm
  • Can be used directly under floating wood, parquet or laminate flooring
  • System panels can be assembled like puzzle pieces and can be cut to size with a knife.
  • Felt padding acts as a separating layer between the subfloor and the system panel.
  • For pipe diameter: 12 mm
  • Required pipe length per m²: approx. 8 m
  • Maximum pipe length per heating circuit: 80 m

  • Material: Polystyrene sheets with aluminum top layer according to EN 13163
  • Pipe spacing: 125 mm
  • Dimensions (L x W x H): 770 x 520 x 18 mm
  • Usable area: 750 x 500 mm
  • Deformation at 10% compression: 150 kPa
  • Long-term deformation: 45 kPa
  • Packaging unit: 4.8 m²/carton (13 panels)
  • Scope of delivery:
  • System panels 4.8 m²
  • Felt pad for 5.0 m²
  • protective gloves
Brand C+F Magnum
Unit price CHF/piece
