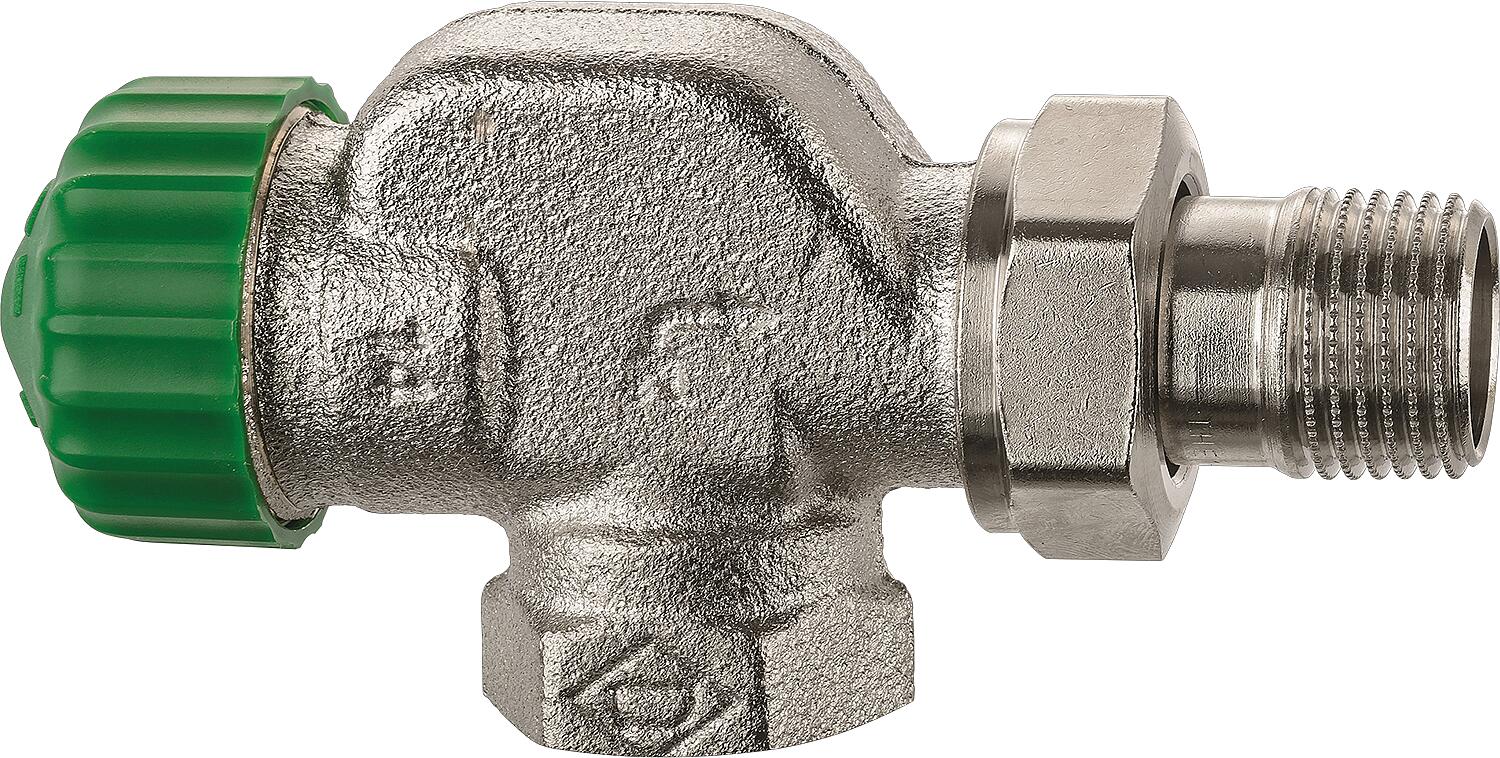

Thermostatic valve body IMI Heimeier Eclipse 300, DN15(1/2"), axial shape

• For heating systems with small temperature differences and high flow rates
• Automatic hydraulic balancing via integrated flow regulator ensures that the flow rate in the radiator is never exceeded, even when neighboring valves close.
• The required flow rate for each radiator is set directly on the thermostatic valve body.
• The flow rate can be continuously adjusted within the flow rate range using the adjustment key; setting 130
• Flow rate range from 30 to 300 l/h
• Connection ThKopf: M30x1.5

Technical data:

• Valve material: Nickel-plated red brass, corrosion-resistant
• Spindle material: Stainless steel spindle with double O-ring seal
• Material O-ring: EPDM
• Maximum operating pressure: 10 bar
• Operating temperature range: 10°C to 120°C
• Maximum differential pressure: 60 kPa
• Minimum differential pressure: 20 kPa
