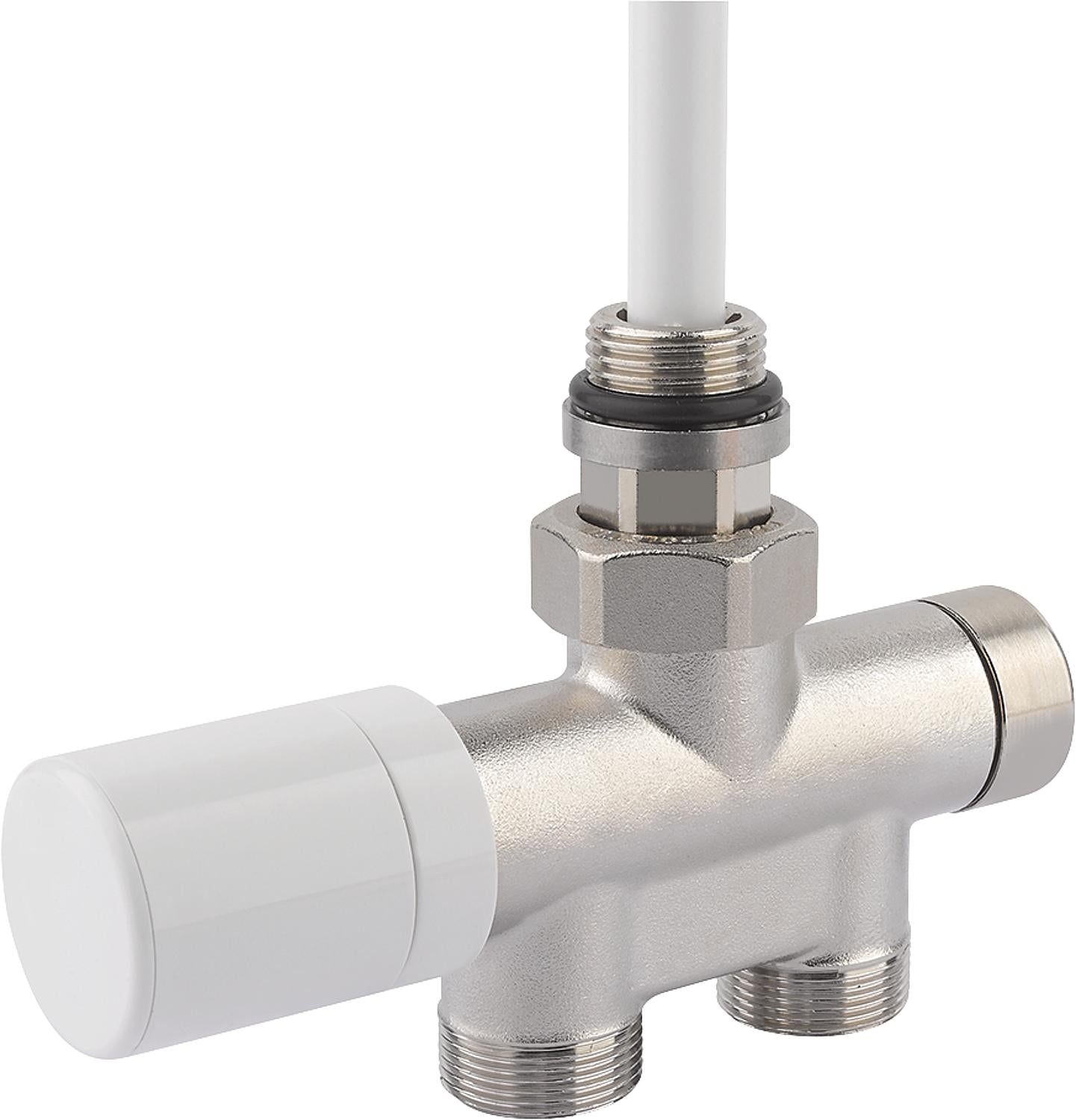

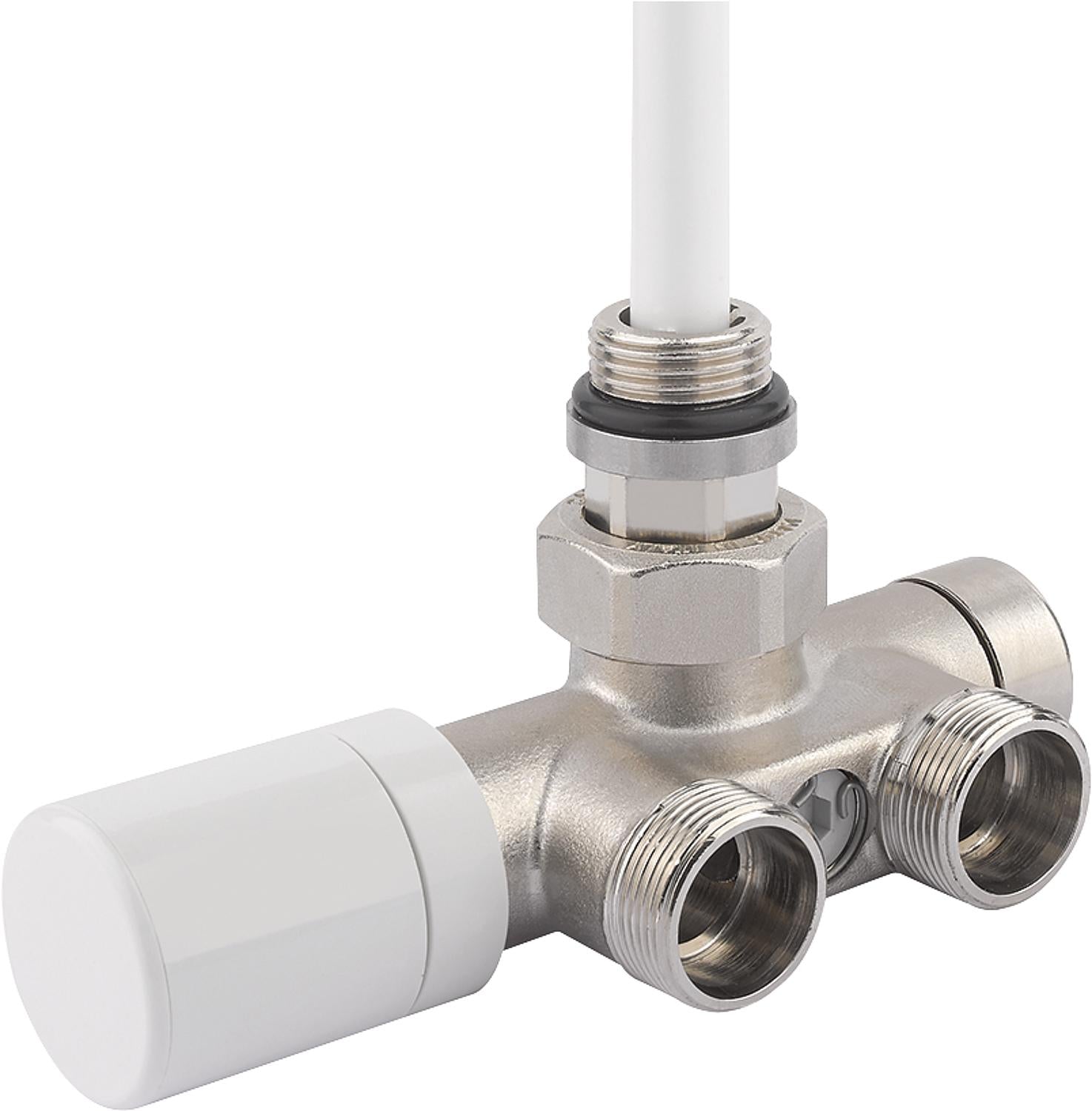

Thermostatic valve, single-point connection, DN 15 (1/2") x DN 20 (3/4"), EK two-pipe system, angle shape, nickel-plated.

• Two-pipe and single-pipe systems
• With bypass
• Forward and reverse directions can be selected as desired.
• Sensor connection: M 30 x 1.5 (Heimeier compatible)
• Axle spacing: 50 mm
• With dip tube
• Including hand-operated regulating cap

Technical data:

• Connection HK: DN 15 (1/2") AG self-sealing
• Pipe connection: Eurocone DN 20 (3/4"), in conjunction with compression fittings
• Material: Brass
• Maximum operating temperature: 90°C
• Maximum operating pressure: 10 bar
