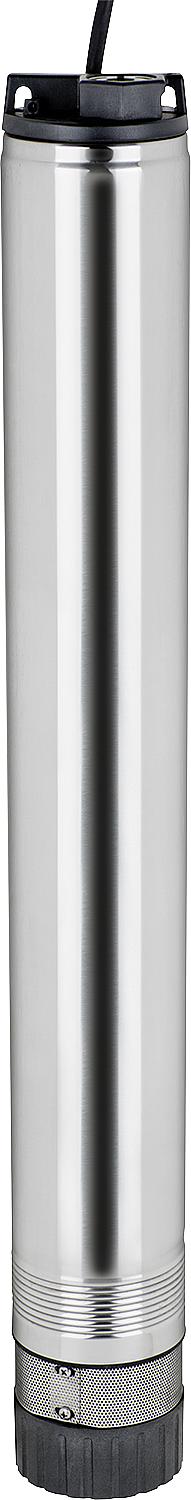

Deep well pump EVENES EV-TBP automatic

• Integrated automatic switching including dry-run protection automatically switches the pump on when water is drawn and then off again afterwards.
• Pump housing: Stainless steel
• Installation position: vertical
• Multi-stage
• Connection cable: 22 m
• Plastic rope as a lowering aid: 20 m
• With non-return valve
• Jacket cooling (no cooling jacket required)
• Thermal and electrical motor monitoring
• Double mechanical seal
• Running gears and idler wheels made of wear-resistant plastic
• Maximum immersion depth: 22 m
• Maximum water column above pump: 25 m
• Minimum immersion depth for automatic operation: 15 cm
• For pumping operations from depths above 8.5 m
• For short pressure lines, an expansion vessel of at least 0.3 l must be installed.
• For garden irrigation and domestic water supply

Technical data:

• Rated power: 800 W
• Maximum flow rate: 5600 l/h
• Maximum delivery head: 50 m
• Maximum pressure: 5.0 bar
• Pump drive: 6-stage
• Media temperature: 40°C
• Case diameter: 96 mm
• Weight: 12 kg
• Voltage: 230 volts, 50 Hz
• Pressure connection: DN 25 (1")

• Deep well pump with floating intake: Suction hose DN 25 (1"), 1.5 m with check valve, filter and buoyancy ball
