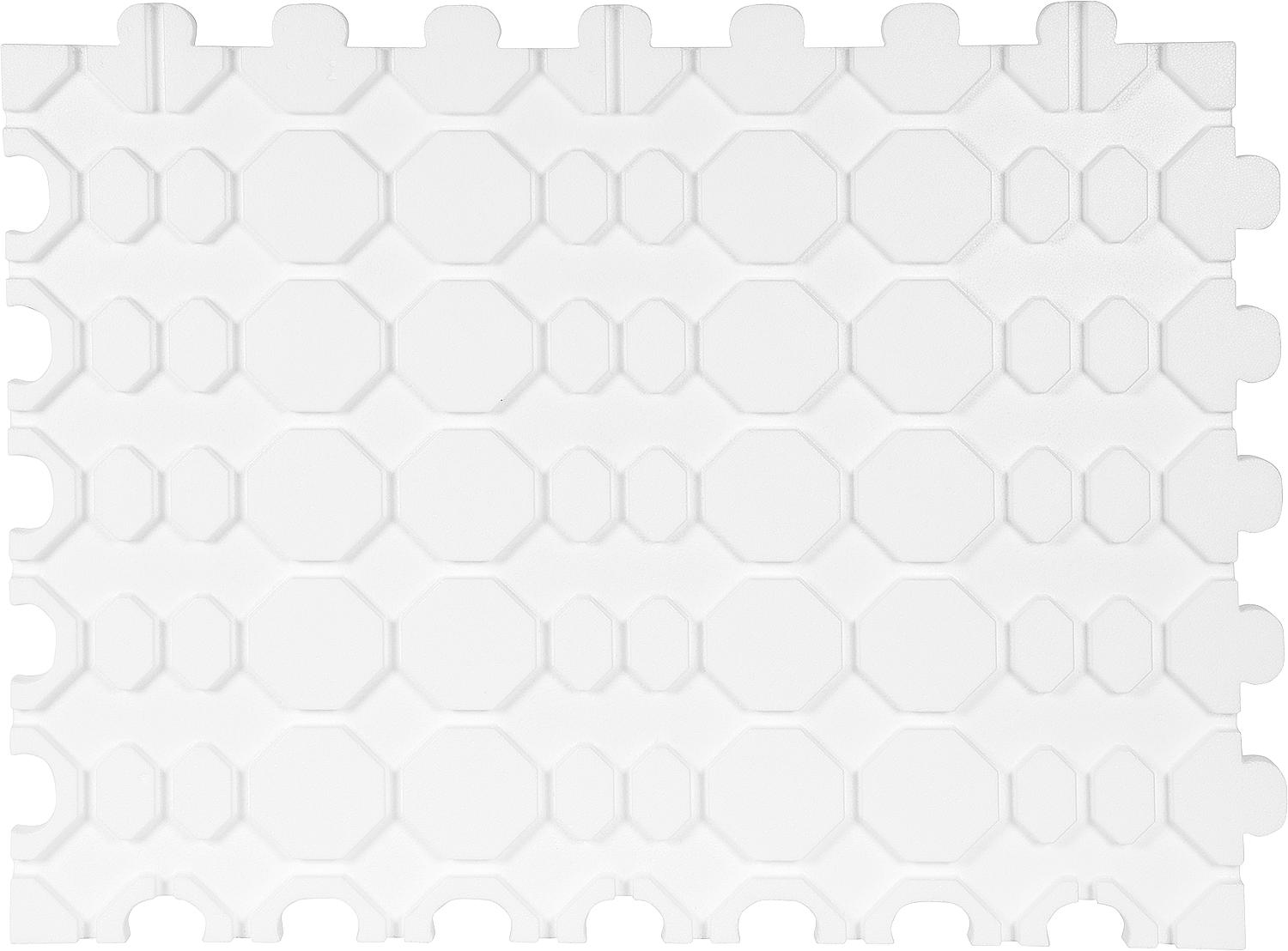

Drywall professional system panel 25-14 fR 14mm WLG 035, VE 23 PI=17.25m² 1025x770x25mm

• Dry construction system for dry and wet screeds with heat-conducting plates for laying distances of 125250375 mm and heating pipe ø 14 mm.
• The dry construction system is particularly suitable for all new and old buildings as well as renovation projects.

The low installation height, minimized weight and optimal heat distribution through the heat-conducting plates offer an extremely flexible system solution.

In this context, flexible also means that this system is equally suitable for dry screeds and wet areas.

The easy handling of the system components and quick and easy assembly enable commissioning in the shortest possible time.

• Made of EPS polystyrene rigid foam according to DIN EN 13163 and DIN V 410810
• With grooved profile for heat-conducting plates in a meandering arrangement for accommodating heating pipe with dimensions of 14 x 2 mm. Material: EPS DEO dh WLG 035. Building material class according to DIN 4102: B1.
• Pipe spacing for heating pipes: 125/250/375 mm, i.e. 8.0 / 4.0 / 2.7 m of pipe/m²
• Panel thickness: 25 mm
• Panel dimensions: 1025 x 770 x 25 mm (with stepped rebate)
• Usable area: 1005 x 770 mm (0.774 m²)
• Packaging unit: 17.25 m² / carton (23 panels)

• Material requirements per m² of laying area with a laying distance of 125, 250, or 375 mm

• Profile sheet: 1 m²
• PE cover film (0.2 mm): 1.1 m²
• Edge insulation strip: 1 m
• Heat-conducting plate:
• Laying distance 125 mm: 7.5 m (10 pieces)
• Laying distance 250 mm: 3.75 m (5 pieces)
• Installation spacing 375 mm: 2.25 m (3 pieces)
• Heating pipe (ø 14 mm):
• Laying distance 125 mm: 8 m
• Laying distance 250 mm: 4 m
• Laying distance 375 mm: 2.7 m
