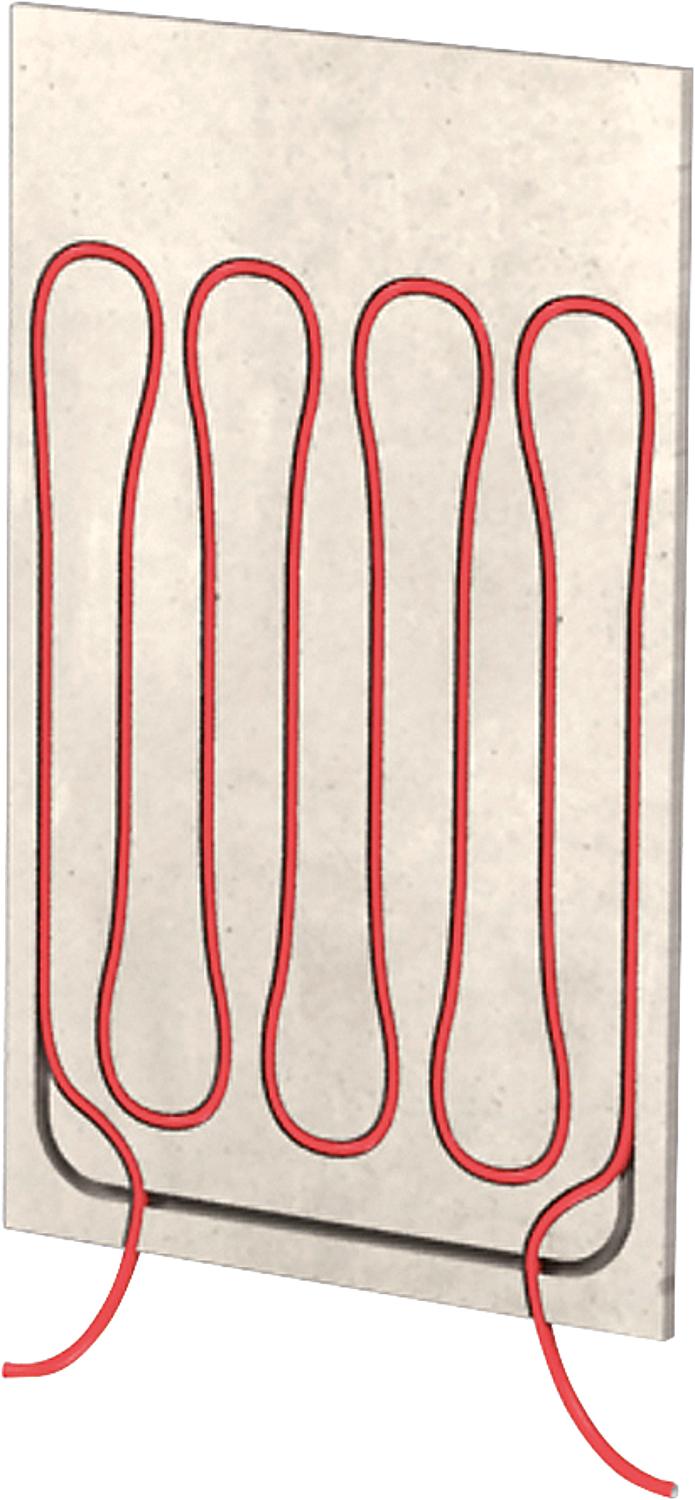

Wall heating module for drywall construction, 100x62cm, 18mm thick, with 12x1.3mm polybutene pipe.

• The 18 mm thick system panels feature prefabricated pipe registers with high-quality 12 x 1.3 mm polybutene pipe at fixed 10 cm intervals. The series-connected elements are designed for a maximum pipe length of 80 m. The five panel sizes cover all common installation situations.

Advantages:

• For heating and cooling
• Prefabricated climate panels with PB pipe
• Heating and partition wall in one
• Panel thickness 18 mm
• Serial connection of multiple climate panels

• The drywall system is a prefabricated modular system consisting of wall heating panels with integrated registers. Made of gypsum fiber, these wall heating panels are only 18 mm thick and available in five panel sizes to cover almost all installation situations. The drywall construction allows for quick and customized installation with minimal mess and effort. They are mounted using drywall screws onto a substructure suitable for dry interior construction, thus creating, depending on the application, both a heating and partition wall in one. The prefabricated modular panels can be connected in series up to a pipe length of 80 m (80 m = 1 heating circuit).
