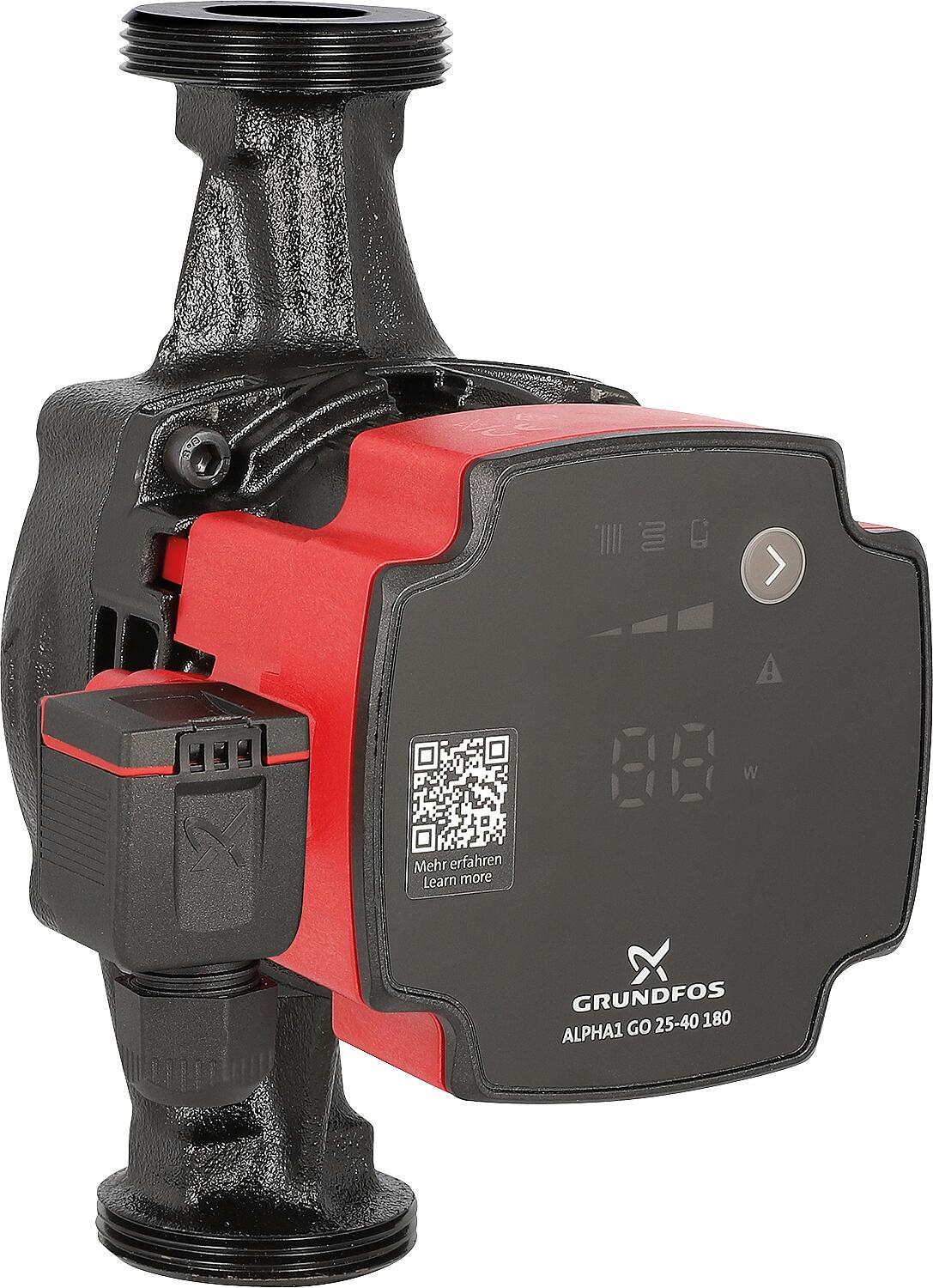

Grundfos Alpha1 GO 32-60 circulation pump, 220-240V, installation length 180mm

• Highly efficient circulation pump for heating and air conditioning systems
• With Bluetooth LE interface for communication with the Grundfos GOApp via QR code on the pump.
• Guided setup via the app is possible.
• Automatic self-venting upon air bubble detection and dry-run protection
• Replacement pump also available for built-in boiler pumps
• The ALPHA1 GO XX80 can replace almost 70% of integrated Grundfos circulation pumps and most individually installed circulation pumps.
• Compatible with most UPS circulation pumps
• The factory settings of the existing pump can be transferred via the app.
• Control modes: Constant pressure, proportional pressure, constant volume flow and constant characteristic curve, AUTOADAPT, PWM input
• Including thermal insulation shell
• Delivery without screws

Technical data:

• Maximum delivery head: 4.0 m / 6.0 m / 8.0 m
• Maximum flow rate: 2180 l/h / 3680 l/h / 4250 l/h
• Operating voltage: 1x 230 V, 50 Hz
• Motor protection: no external motor protection required
• Protection class: IP 44
• Thermal class: TF 110
• Ambient temperature: 0°C to +55°C
• Medium temperature range: -10°C to +110°C
• Maximum operating pressure: 10 bar
• Pump housing material: Grey cast iron, KTL coated

• Installation length: 180 mm
