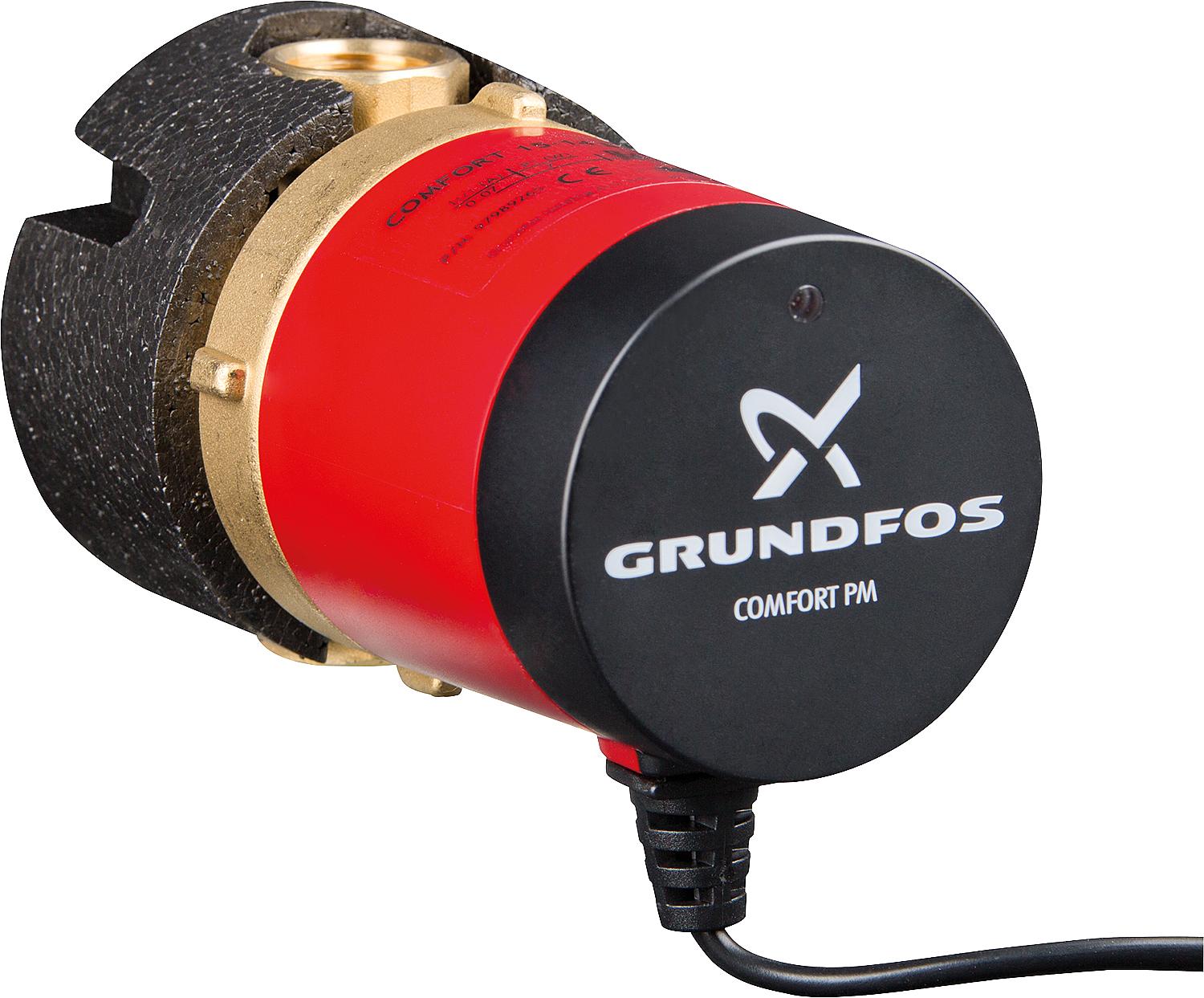

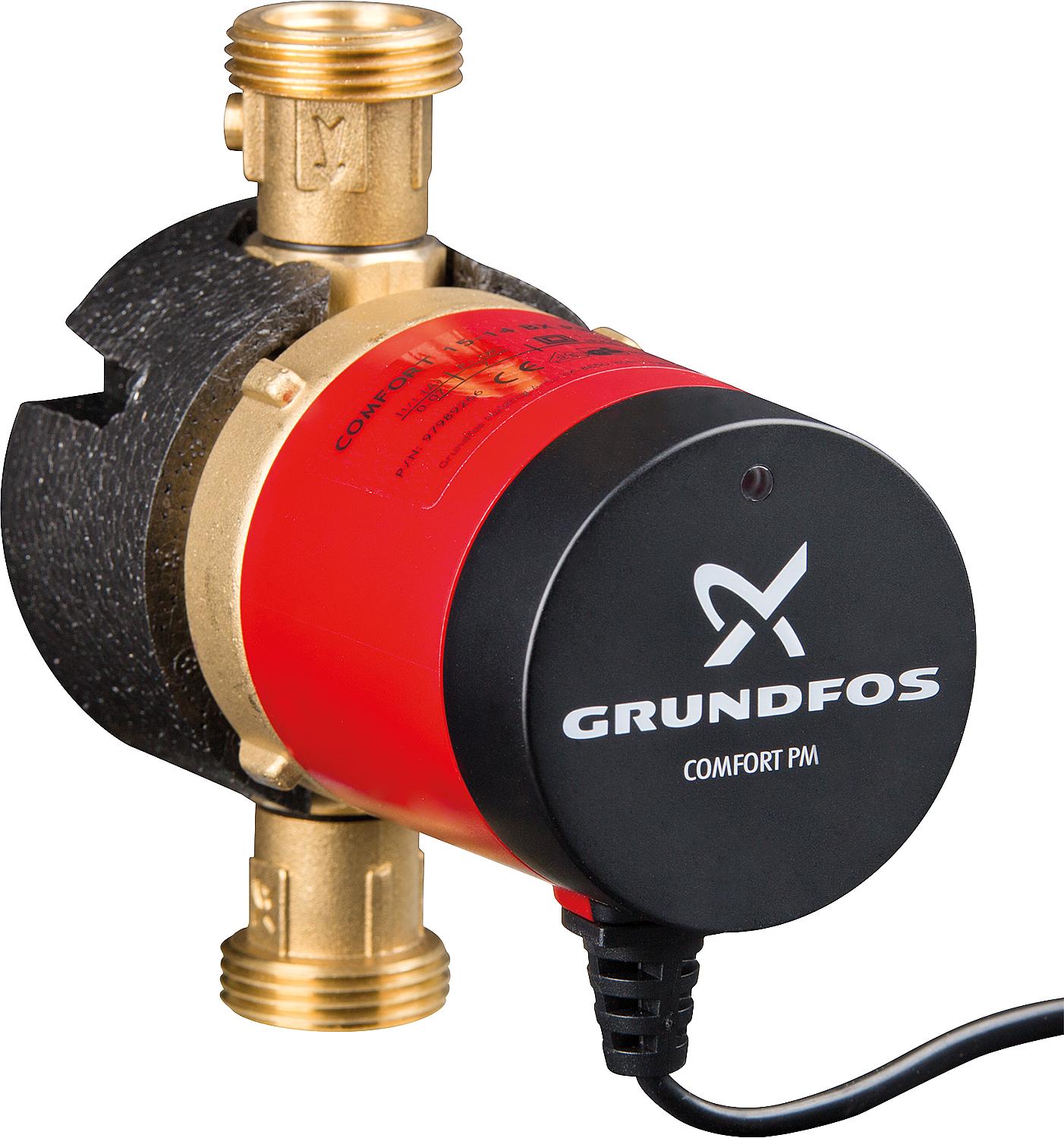

Grundfos Comfort 15-14 B PM circulation pump, DN15(1/2"), 230V

• For drinking water circulation systems in single and two-family houses
• High-efficiency wet rotor permanent magnet motor
• Integrated dry-run protection
• Spherical rotor with integrated impeller
• Simple electrical installation via mains plug
• Including thermal insulation shell
• Delivery without screws

Technical data:

• Operating voltage: 230 V, 50 Hz
• Protection class: IP 44
• Power consumption: max. 7 W
• Media temperature: 295°C
• Medium temperature during operation: 60°C
• Operating pressure: max. 10 bar
• Maximum conveying height: 1.4 m
• Flow rate: max. 500 l/h
• Pump housing material: Brass MS 68
• Impeller: Stainless steel, EPDM, PPO, PTFE, graphite

• Type BX with integrated check valve and shut-off valve
