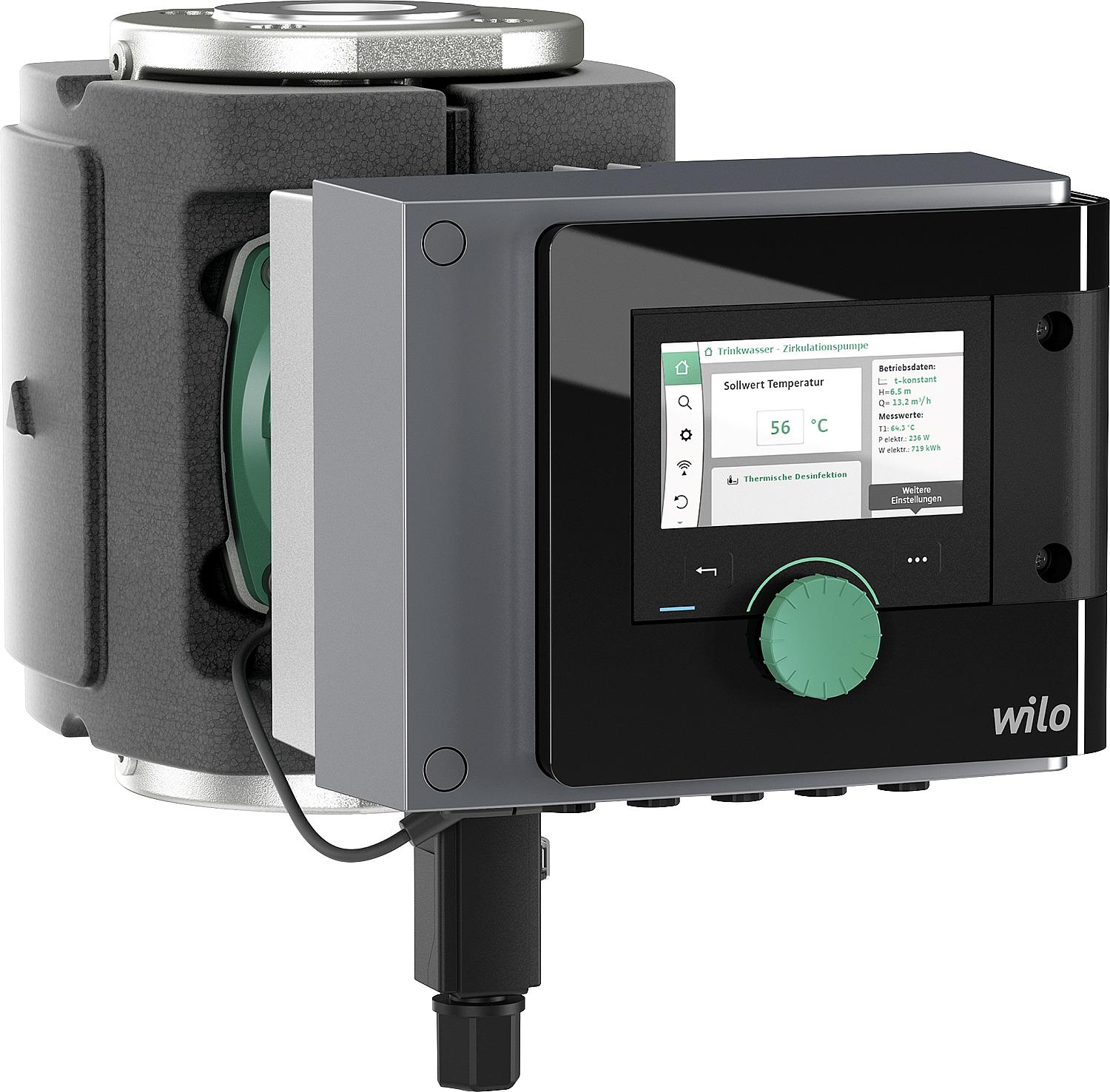

Wilo Stratos Maxo-Z 65/0.5-12(DE),PN6/10,DN65 flange, length: 340mm, 230V circulation pump

• For use in hot water circulation, heating, air conditioning, cooling and industrial plants

• Bluetooth interface for wireless data exchange
• The display shows the current flow rate in m³/h, power consumption [W], and cumulative energy consumption [kWh].
• Automatic venting function
• Automatic unblocking function
• Detection of thermal disinfection
• Dynamic Adapt plus
• Proportional pressure control
• Constant pressure control
• MultiFlow Adaptation
• Reset function
• Key lock
• QLimit max. to limit the maximum volume flow
• QLimit min. for limiting the minimum volume flow
• No Flow Stop (Zero Flow Shutdown)
• Automatic night setback
• Worst point control (Δpc control with external actual value sensor)
• Variable slope of the Δpv characteristic curve
• Including thermal insulation shell

Technical data:

• Operating voltage: 230V/5060Hz
• Media temperature: +2°C 110°C
• Ambient temperature: 0°C to 60°C
• Protection class: IPX4D
• Housing material: Stainless steel

• Compatible with WiloSmart Balance App
• The WiloSmart Balance app allows for easy hydraulic balancing. The complete report can be exported as a PDF document for submission to the Federal Office for Economic Affairs and Export Control (BAFA) for billing purposes.
