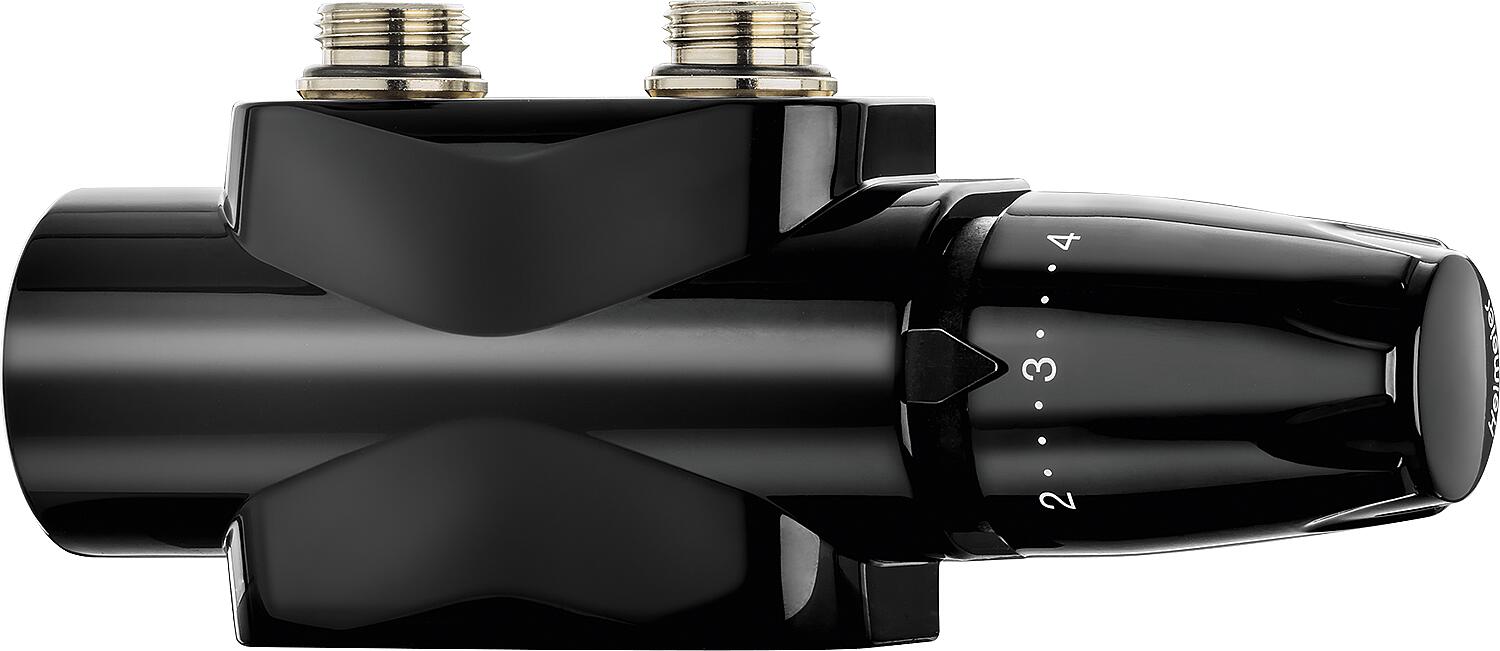

IMI Multilux 4-Set DX valve block, two-pipe operation, DN20 (3/4"), jet black RAL 9006

• For radiators with a lower two-point connection, such as bathroom radiators
• Suitable for installation as a corner or through-passage configuration
• The required flow rate of each radiator is set directly on the thermostatic valve body, thus the hydraulic balancing is done with a single turn.
• The thermostat head and shut-off valve can be interchanged, allowing the thermostat head to be mounted on the left or right.
• Consisting of: Multilux 4 thermostatic valve body, radiator connections DN 15 (1/2") x DN 20 (3/4"), cover design line, thermostatic head and end caps DN 20 (3/4")

Technical data:

• Valve material: Red brass, corrosion-resistant
• Maximum operating pressure: 10 bar
• Maximum operating temperature: 120°C
• Maximum operating temperature of casing: 90°C
• Axle spacing: 50 mm
• Connection ThKopf: M30x1.5

• Thermostat head: Type DX
• Two-pipe and single-pipe operation
