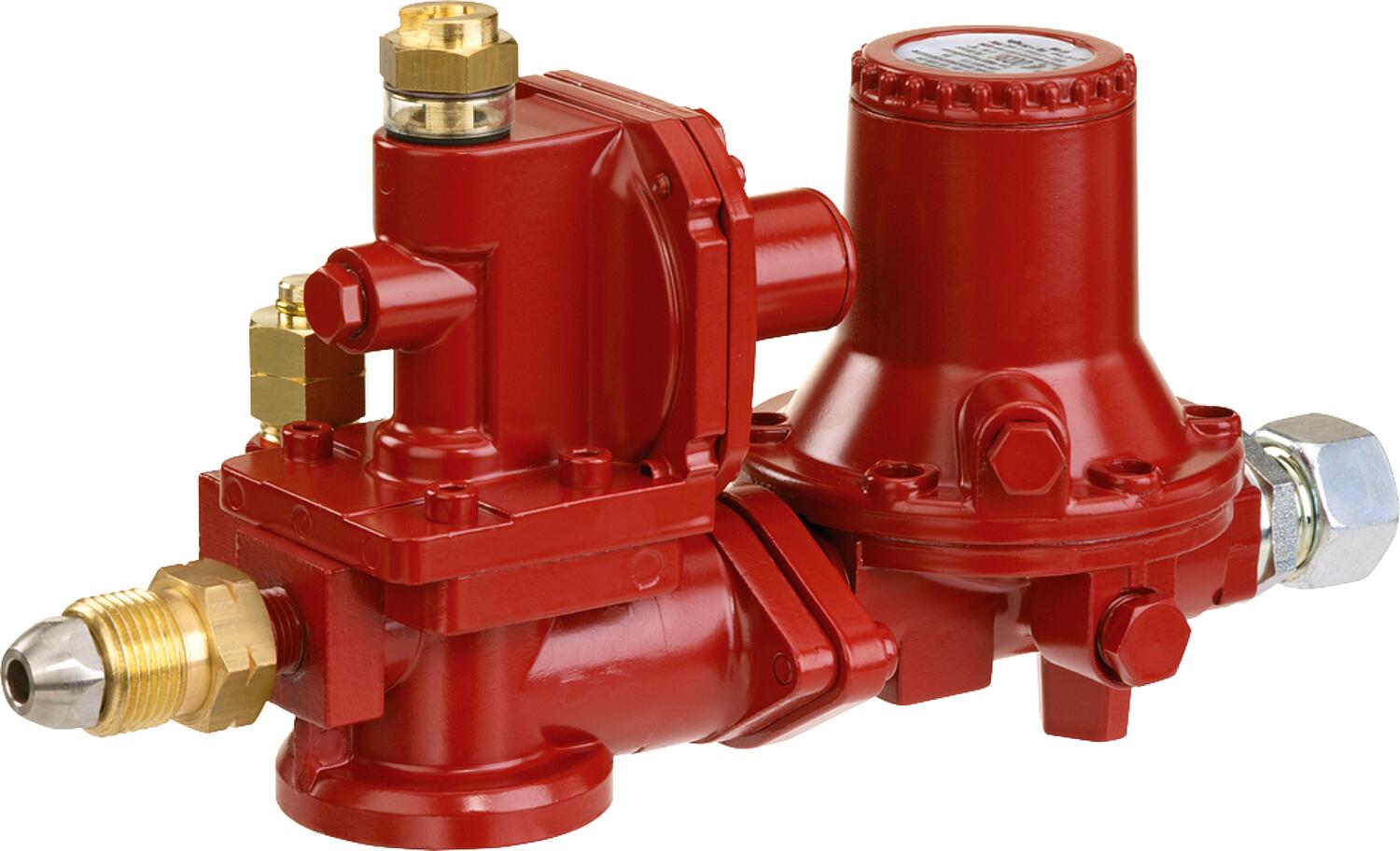

Pre-stage regulator PS 25 bar 24 kg/h 0.7 bar, POL x RVS 15, cut-off pressure SAV: 1.0 bar

• For direct connection to liquefied gas tanks
• Input: POL connection
• Exit:

Cutting ring connection RVS 15 mm, 0.7 bar

with safety shut-off valve OPSO (SAV) and

PRV safety relief valve

• With height-adjustable support device

also for tilting

• With insect screen
• With emergency supply connection DN 10 (3/8")
• LHKN with check valve
• Cut-off pressure OPSO (SAV): 1.0 bar
• Inlet pressure: 1.5 to 16 bar
• Capacity 24 kg/h
• Conformity: EU type-examination certificate GGV
