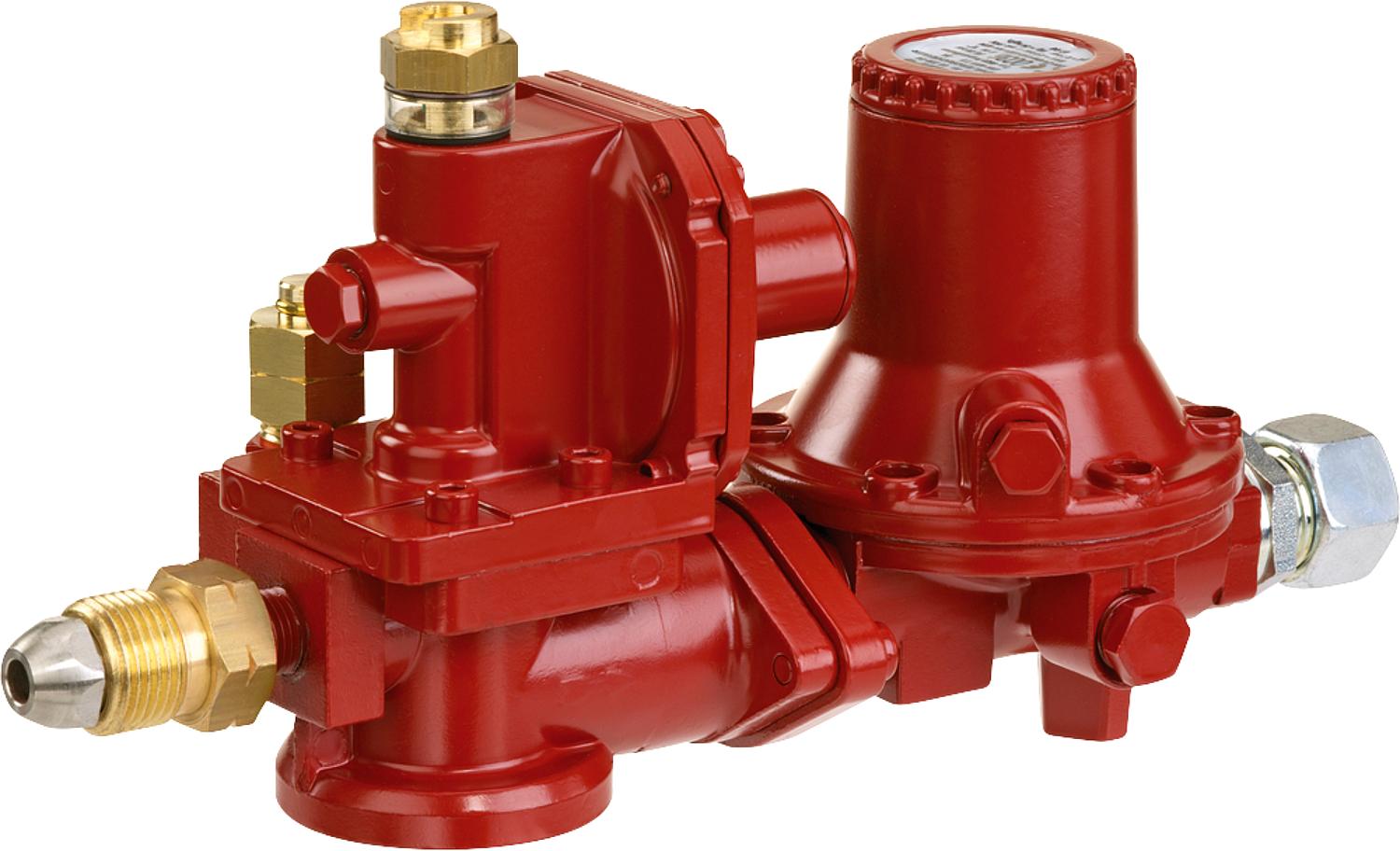

Pre-stage regulator PS 25 bar, 24 kg/h 0.7 bar, POL x RVS 15, cut-off pressure SAV: 2.0 bar

• For direct connection to liquefied gas tanks
• Input: POL connection
• Exit:

Cutting ring connection RVS 15 mm, 0.7 bar

with OPSO (SAV) safety shut-off valve

and safety relief valve PRV

• With insect screen
• With emergency supply connection DN 10 (3/8") LHKN with check valve
• Cut-off pressure OPSO (SAV): 2.0 bar
• Inlet pressure: 1.5 to 16 bar
• Capacity 24 kg/h
• Conformity: EU type-examination certificate DGR
