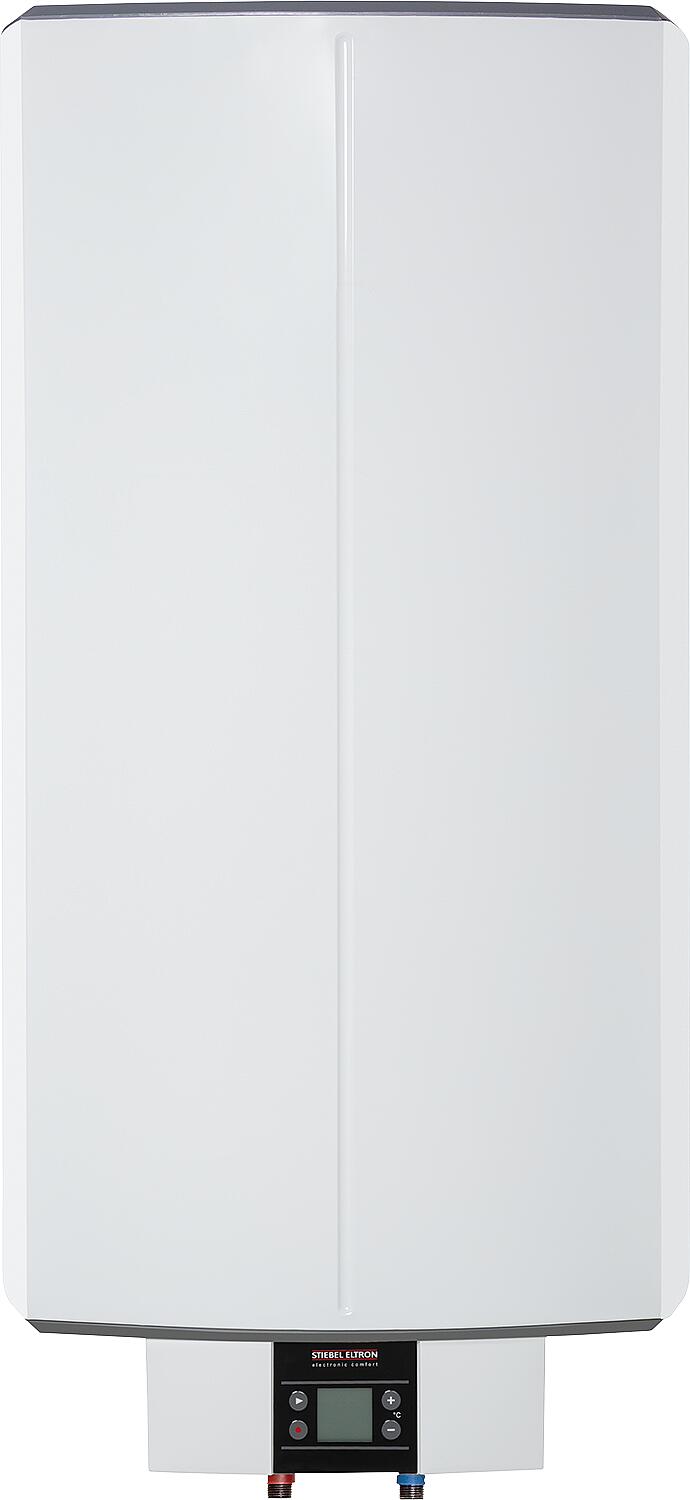

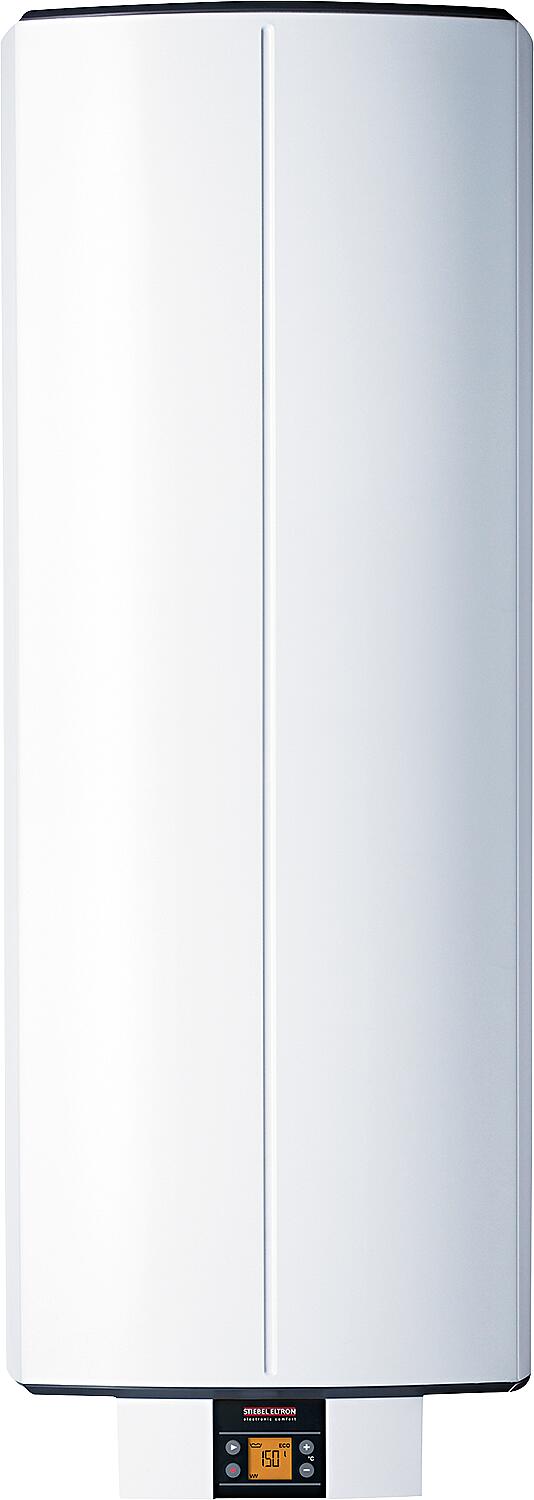

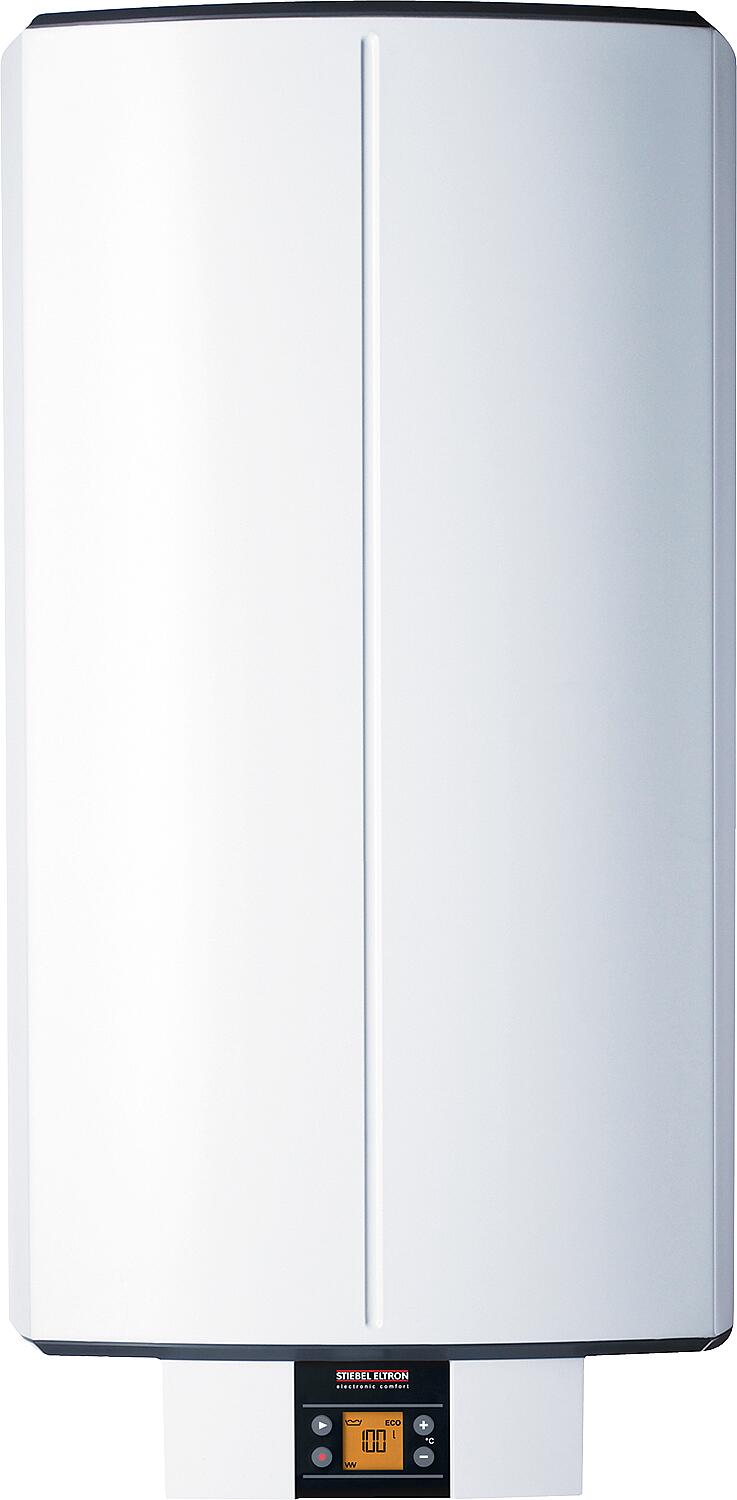

Warmwasserspeicher elektrisch Stiebel Eltron SHZ 150 LCD, druckfest

• For one or more sampling points • Always use a safety valve when using a pressure connection (closed). • For single-circuit and dual-circuit operation • Boiler operation: The appliance heats up after you press the rapid heating button. Once the set temperature is reached, the appliance switches off and does not switch on again. • Precise temperature setting via electronic control • Inner container made of enamelled sheet steel • Maintenance-free titanium impressed current anode • Automatic frost protection • Adjustable setting for faster heating

Model	SHZ 30 LCD	SHZ 50 LCD	SHZ 80 LCD	SHZ 100 LCD	SHZ 120 LCD	SHZ 150 LCD
Technical data
Energy efficiency class	A	B	B	C	C	C
Nominal capacity [L]	30	50	80	100	120	150
Power consumption at 230 V [W]	1000 - 4000	1000 - 4000	1000 - 4000	1000 - 4000	1000 - 4000	1000 - 4000
Power consumption at 400 V [W]	1000 - 6000	1000 - 6000	1000 - 6000	1000 - 6000	1000 - 6000	1000 - 6000
Moisture protection level	IP 25	IP 25	IP 25	IP 25	IP 25	IP 25
Water pipe connections	DN 15 (1/2")	DN 15 (1/2")	DN 15 (1/2")	DN 15 (1/2")	DN 15 (1/2")	DN 15 (1/2")
Mixing water quantity 40 °C [L]	59	97	159	198	235	292
Permissible operating pressure [bar]	6	6	6	6	6	6
Temperature setting range [°C]	20 - 85	20 - 85	20 - 85	20 - 85	20 - 85	20 - 85

Brand	Stiebel Eltron
Manufacturer part number	231251
Unit price	CHF/piece
Type	SHZ 30 LCD
Dimensions W x D x H [mm]	510 x 510 x 740
