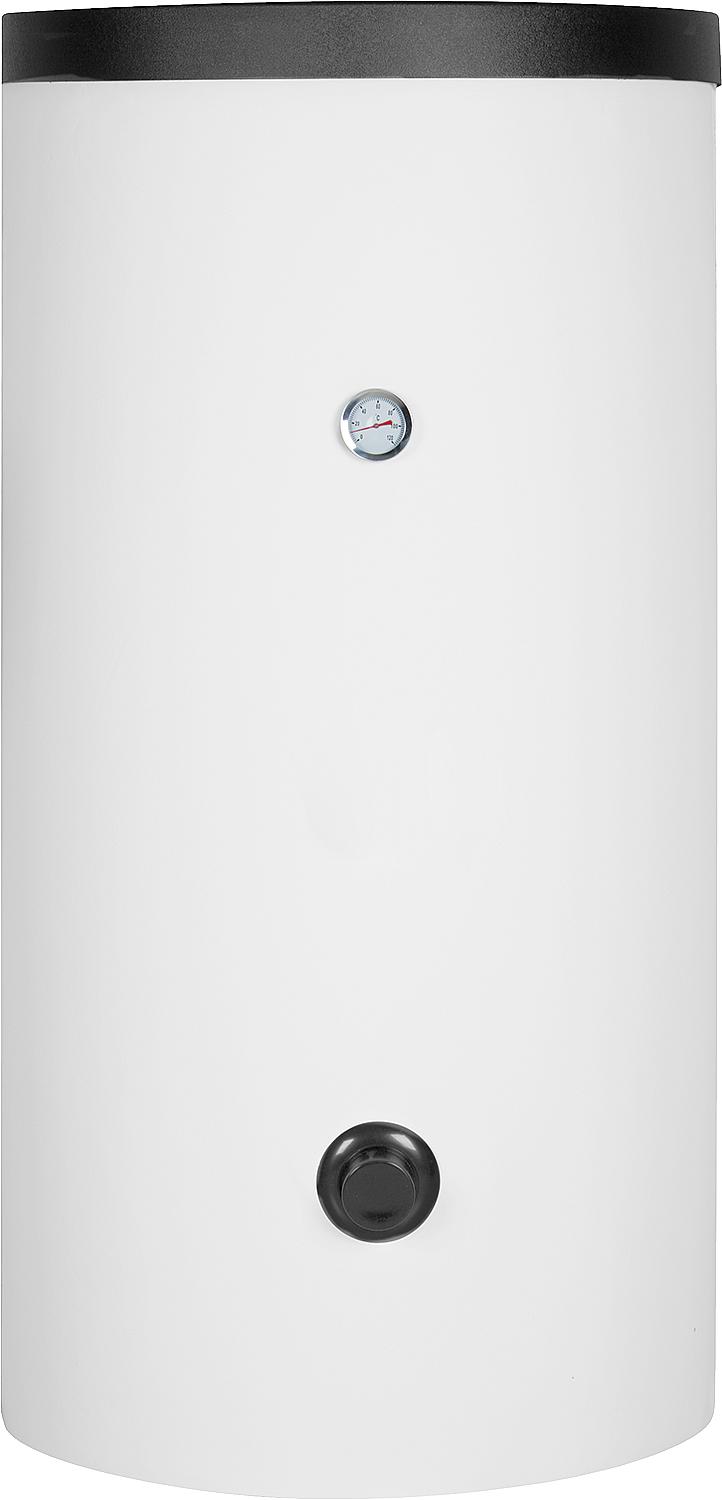

Warmwasserspeicher EV-TEDS-1W 500,Inhalt 493 L mit einem Wärmetauscher

• Container: Stainless steel (1.4404)
• EV-TEDS 150 to EV-TEDS 500 with 75 mm PU rigid foam composite insulation and 5 mm foil jacket in RAL 9010 white, pre-assembled
• Maximum operating pressure: 10 bar
• Maximum operating temperature: 95°C
• Recommended safety pressure: 6 bar

Heat exchanger:
• Smooth tube heat exchanger
• Maximum operating pressure: 16 bar
• Maximum operating temperature: 130°C

Equipment:
• Height-adjustable feet
• Analog thermometer
• From EV-TEDS 150 to EV-TEDS 500 with additional DN 40 (1 1/2") socket for accommodating an electric heating element
• Revision flange from EV-TEDS 400 to EV-TEDS 500

Technical data:
Type EV-TEDS-1W: 150 200 300 400 500
Dispensing capacity** [l/h]: tKW = 10°C 617 710 970 1180 1400
tWW = 45°C
Performance indicator NL* [WT]: tKW = 10°C 2.5 4 8 15 18.5
tSP = 60°C
tWW = 45°C
Standby heat consumption [W]: 40 44 49 55 58

* To achieve the specified NL number, the boiler output must be greater than the specified continuous output.
** 10°C cold water/80°C flow temperature/45°C tap temperature
