Geberit Sigma10 flush plate toilet control with wireless activation, mains operation

• For manual remote activation of Geberit Sigma concealed cisterns via standard 868.4 MHz radio pushbuttons (not included)
• Sigma 10 screw-on actuator plate for single-flush systems, brushed stainless steel/polished design ring
• Operates on low voltage, no mains voltage in the cistern
• Self-calibrating electric lifting device
• Rough construction set 93 151 89 required
• Reference No.: 115.867.SN.5

Technical data:
• Operating voltage: 4.1 V DC
• Rated voltage: 85-240 V AC 50-60 Hz
• Radio frequency: 868.4 MHz
• Radio range: 10 m
• Interval flush setting range: 1-168 h
• Interval flush factory setting: 168 h

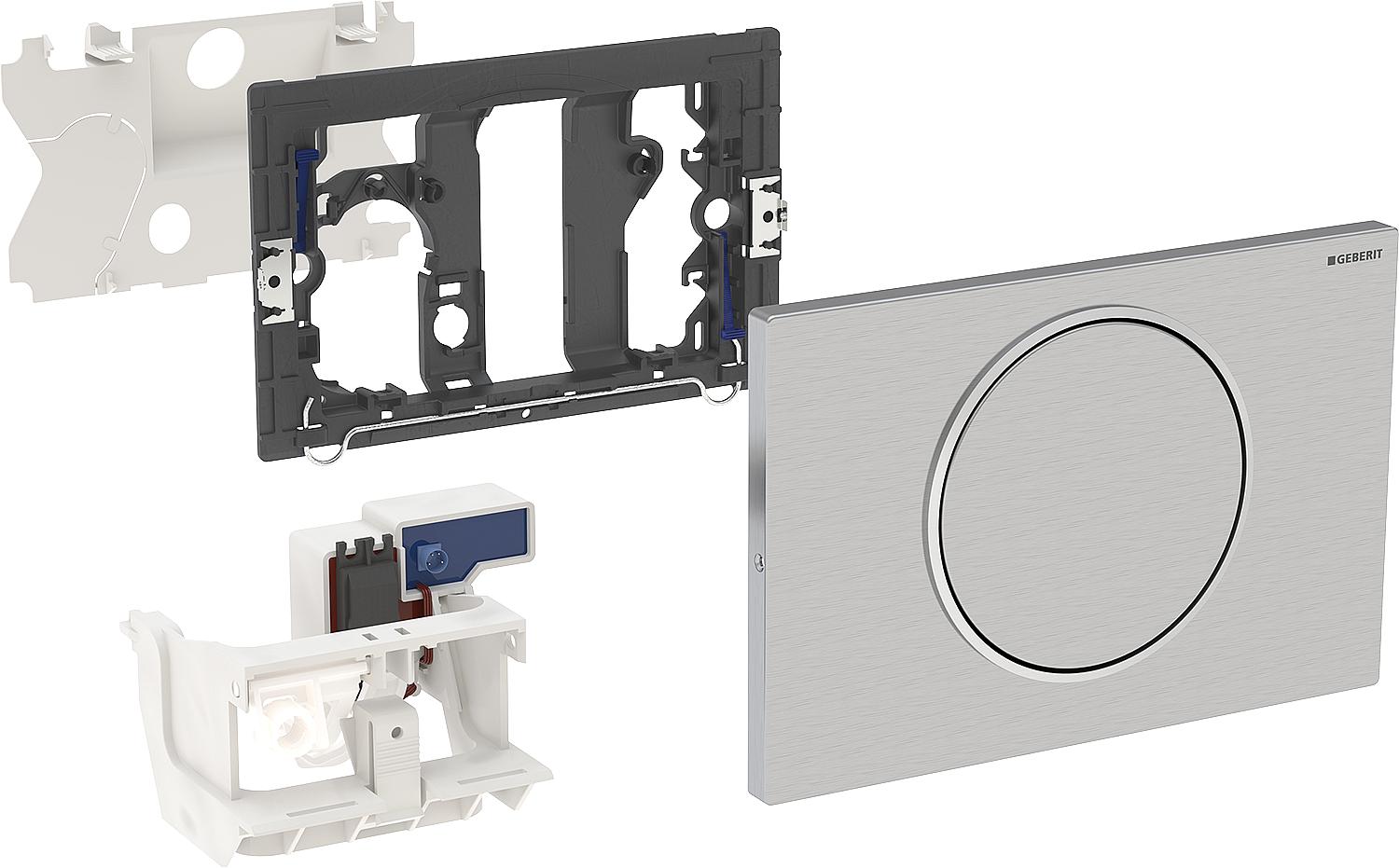

Scope of delivery:
• Sigma 10 actuator plate
• Mounting frame
• Protective plate
• Bearing block with servo motor and lifting device, pre-assembled
• Control electronics with radio receiver
