Dual-cylinder system with double changeover valve, 4kg/h, 50mbar, for 33kg cylinders

• For connection to gas cylinders with a 33 kg filling weight, for pressure regulation to the nominal pressure of the gas appliance.
• Conformity:
• Individual fittings with DIN/DVGW or DVGW type examination certificate or EU type examination certificate GGV

A notice:

The dimensioning and design of the liquefied gas system (selection of gas flow monitor, nominal flow rate, nominal diameter, etc.) must be carried out according to TRF.

Technical data:

• Maximum inlet pressure: 16 bar
• Outlet pressure: 50 mbar
• Maximum output: 4 kg/h
• Connection output: RST 12 mm

Consisting of:

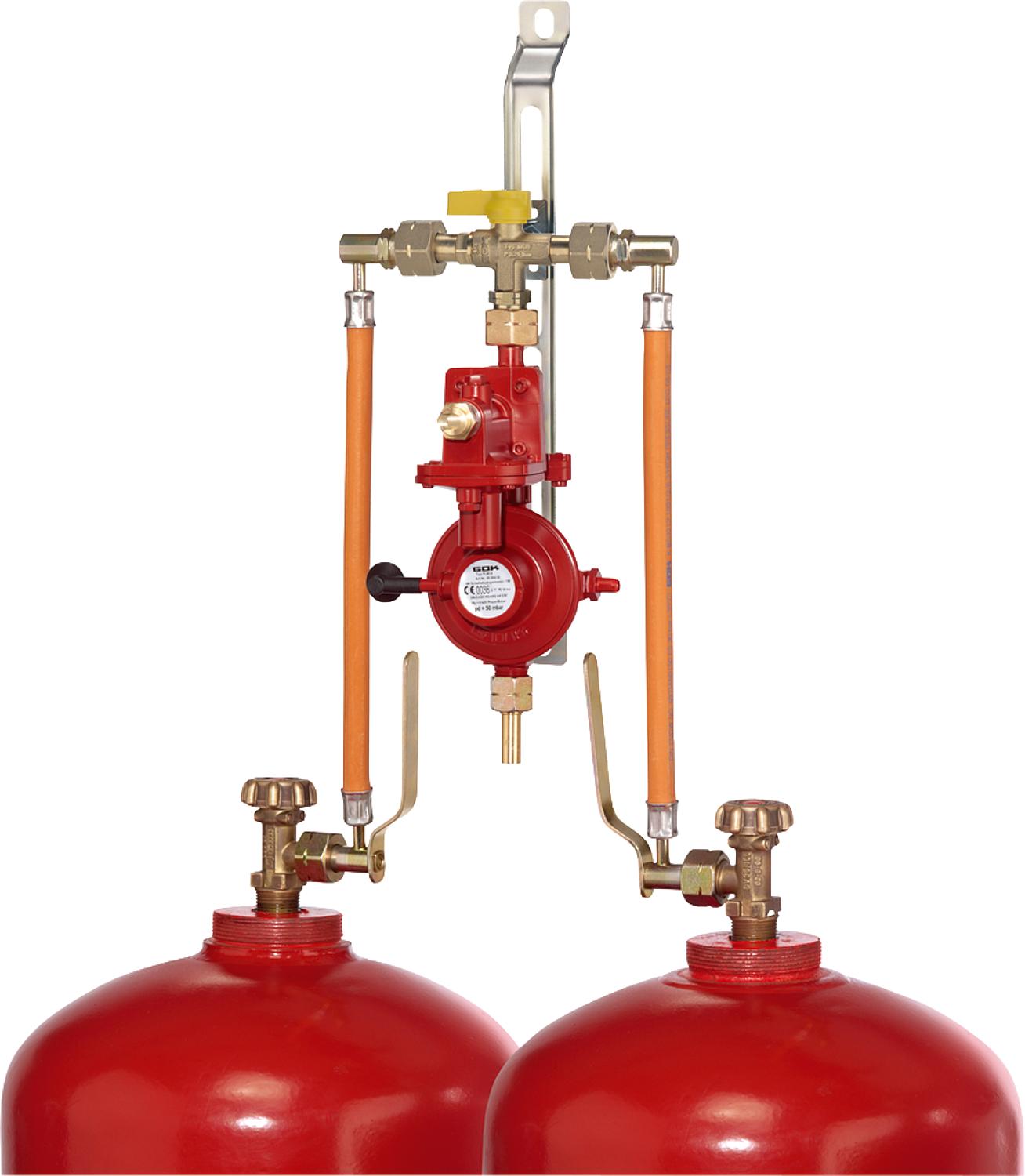

• High-pressure hose assemblies with large bottle connection, pipe sections, manual switching device, low-pressure regulator with overpressure safety shut-off device OPSO (SAV) and safety relief valve PRV and screw fittings
• In cylinder systems with a manual changeover device, the withdrawal process is reciprocal; a cylinder change is possible without interrupting operation.
