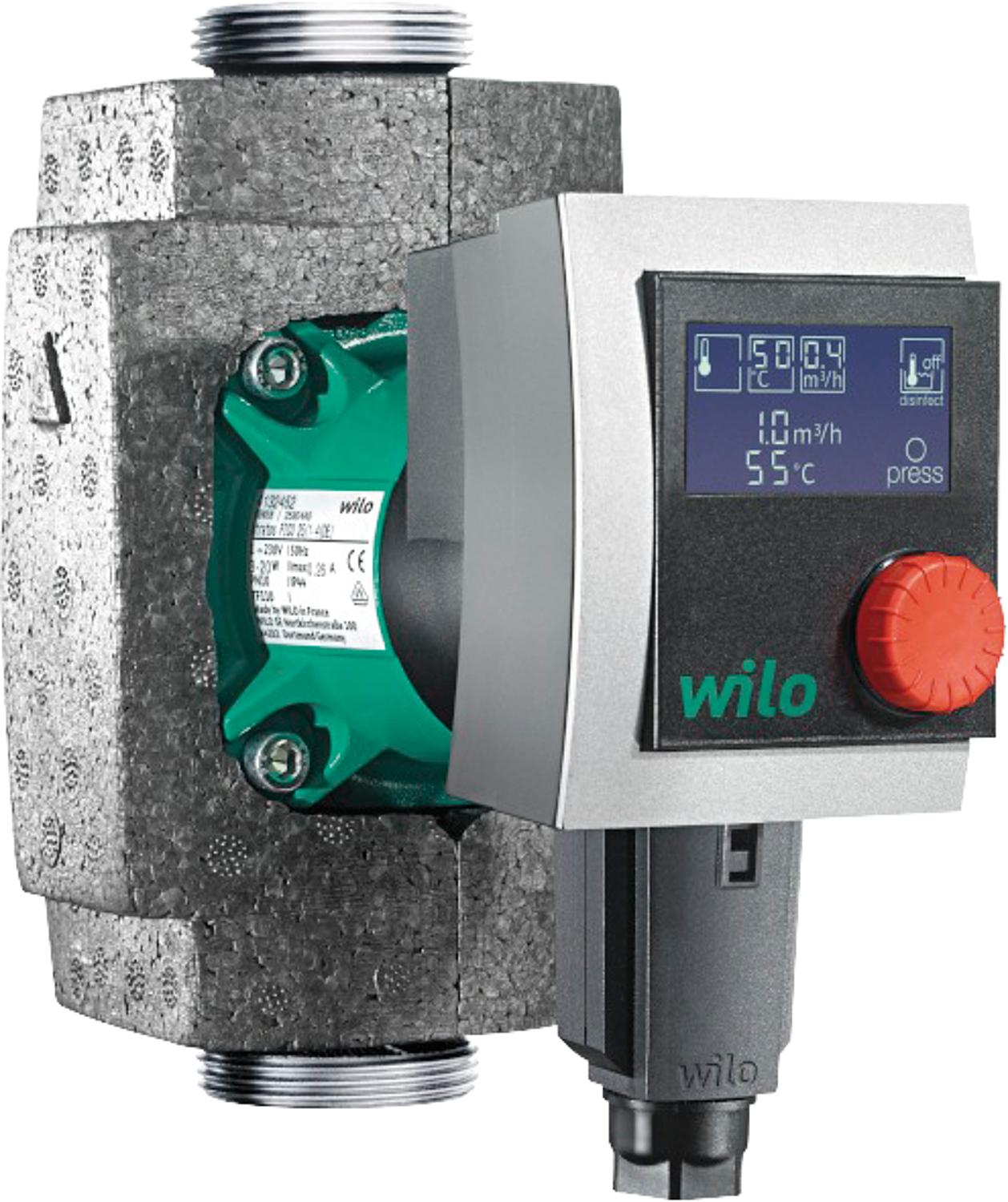

Domestic hot water pump Wilo Stratos Pico-Z 20/1-4, DN20, 230V/50Hz

Design:

• Wet rotor circulation pump with screw connection, stall-proof EC motor and integrated electronic power control.

• Manual and temperature-controlled modes for optimal operation
• Detection of thermal disinfection of the domestic hot water storage tank
• Display of current consumption in watts and cumulative kilowatt hours or current flow rate and temperature
• Stainless steel pump housing protects against bacteria and corrosion
• With Wilo Connector plug
• Including thermal insulation shell
• Delivery without screws

Technical data:

• Housing material: Stainless steel
• Medium temperature for drinking water up to 3.57 mmol/l (20 ° dH): +2 °C to +70 °C, in short-term operation (4 h): +2 °C to +75 °C
• Operating voltage: 230 V / 50/60 Hz
• Protection class IP X4D
• Screw connection Rp ¾ and Rp 1
• Max. operating pressure 10 bar

• Reporting and display functions:
• Display of current power consumption in W
• Display of cumulative kilowatt hours in kWh
• Display of current flow rate in m3/h
• Display of current temperature in °C
• Display of error messages (error codes)
