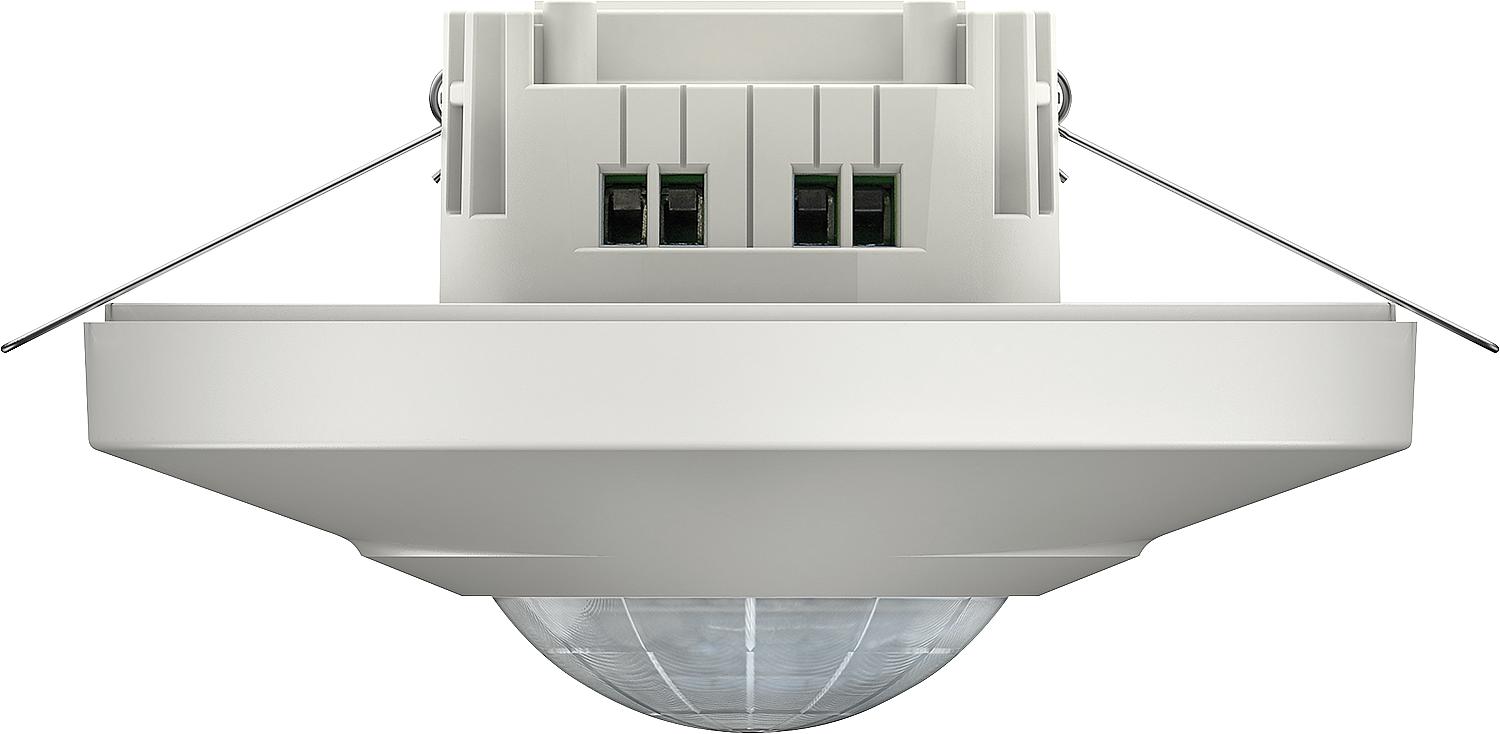

Ceiling motion detector theben Luxa 103-100 UA, white, acoustic, recessed, 360° (horizontal/frontal) 12/4m

• Motion detector (PIR)
• Automatic motion- and brightness-dependent control for lighting
• Ceiling mounting, flush mounting or recessed ceiling mounting with removable tension clamps
• 1 channel, with acoustic function
• Activation via PIR sensor, deactivation via microphone
• Brightness switching value and delay time are adjustable.
• Sensitivity can be reduced to limit the detection range.
• Mixed light measurement suitable for controlling fluorescent, incandescent and halogen lamps, as well as LEDs.
• Zero-crossing switching for relay-friendly switching and high lamp loads
• Impulse function
• Test function for checking the detection range
• Immediate commissioning possible through pre-configuration
• Adjustment elements are mounted in a protected position

Technical data:

• Protection class: IP 40
• Mounting height: 2.5–3 m
• Detection range: up to 113 m² (ø 12 m | 360°)
• Operating voltage: 230 V/AC
• Sensitivity range: 10–2000 lux
• Power-on delay:
• Switch-off delay: 5 sec 30 min
• Switching capacities:
• Incandescent bulb: 2000 W
• Fluorescent lamp: 900 W
• LED lamp: 400 W
