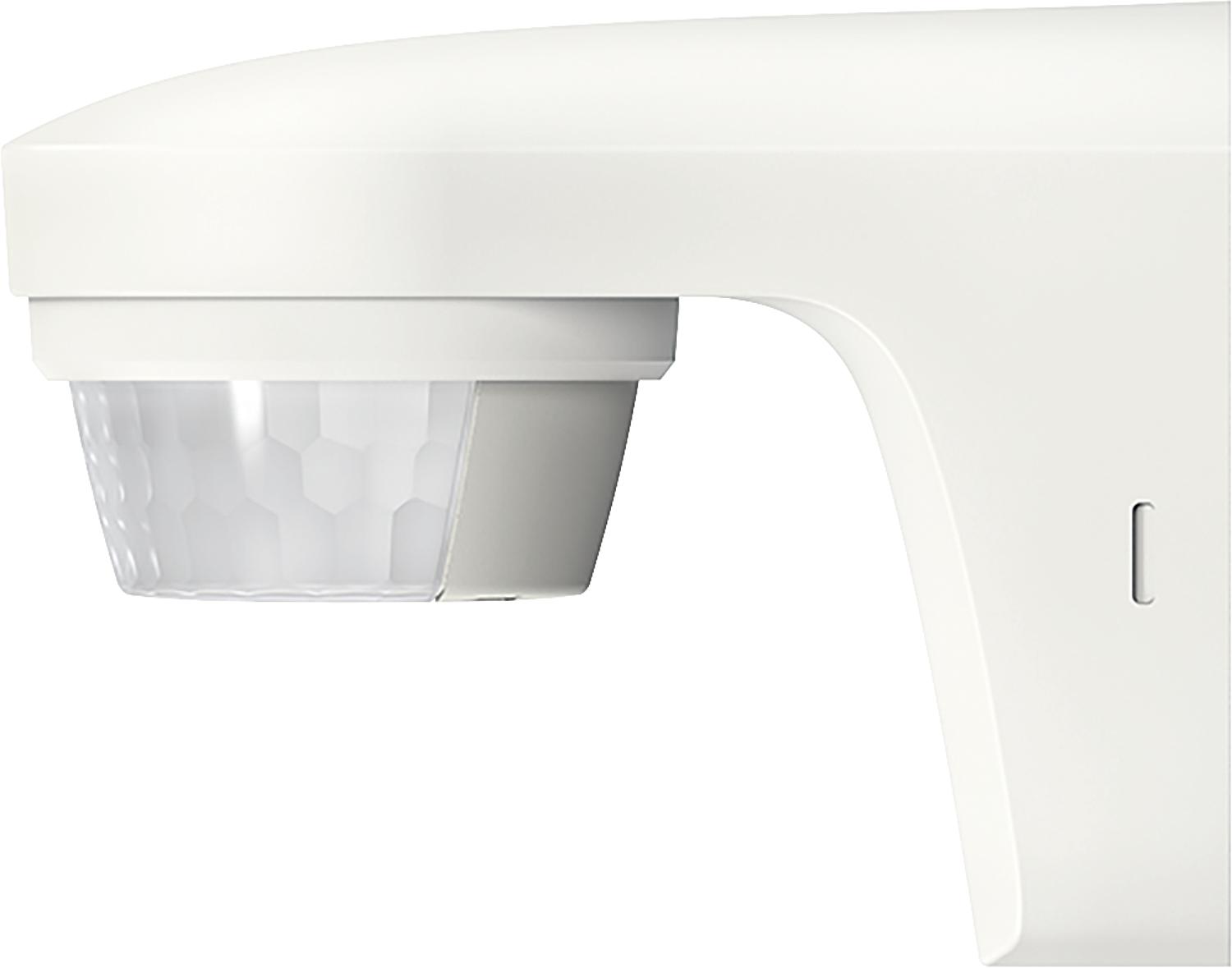

wall-mounted motion detector theben theLuxa S180 White surface mount, 180° (horizontal/frontal) 12/5m

• Motion detector (PIR)
• Automatic lighting control depending on presence and brightness
• For outdoor use
• Additional creep protection
• Sensor head can be rotated horizontally by ± 90° and tilted downwards by 30°
• Brightness switching value and delay time are adjustable.
• Mixed light measurement suitable for controlling fluorescent, incandescent and halogen lamps, as well as LEDs.
• Zero-crossing switching for relay-friendly switching and high lamp loads
• Teach the current brightness value
• Impulse function
• Test function for checking the detection range
• Mounting on a UPD box (60 mm) is possible.
• One-handed plug-in base mounting
• Immediate commissioning possible through pre-configuration
• Adjustment elements are mounted in a protected position
• Blanking terminal for protective conductor

Technical data:

• Protection class: IP 55
• Mounting height: 2.4 m
• Detection range: 5m | 180°
• Operating voltage: 230 V/AC
• Sensitivity range: 5-1000 lux
• Power-on delay:
• Switch-off delay: 1 sec 20 min
• Switching capacities:
• Incandescent bulb: 2300 W
• Fluorescent lamp: 100 W
• LED lamp: 500 W
