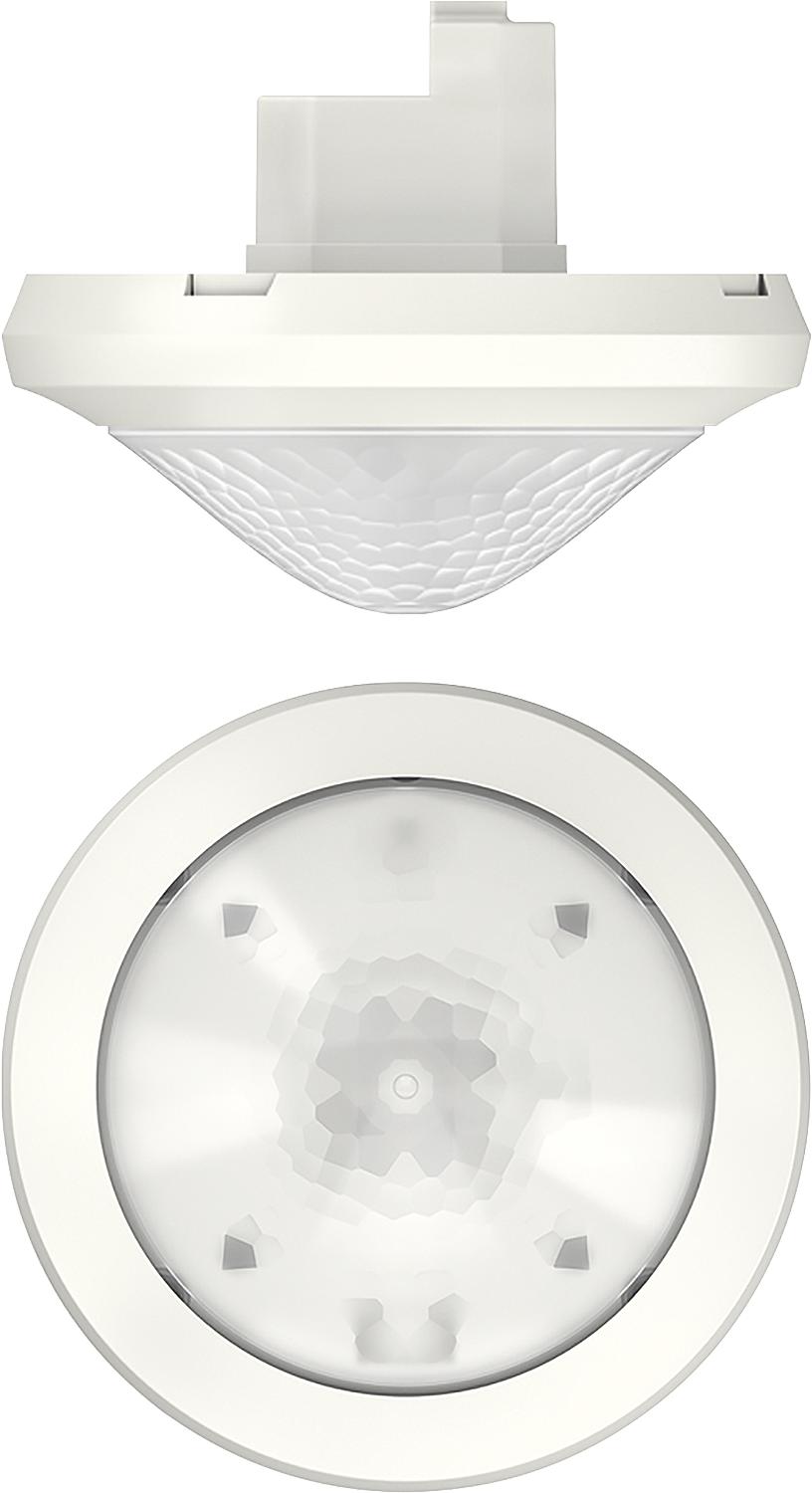

ceiling motion detector theben theMova S360-100 UP, white, recessed, 360°, D: 24m

• Passive infrared motion detector for ceiling mounting
• Automatic motion- and brightness-dependent control for lighting
• Mixed light measurement suitable for fluorescent lamps (FL/PL/ESL), halogen/incandescent lamps and LEDs
• Operation as a fully automatic machine
• Adjustable brightness level, teach-in function
• Pulse function for stairwell light timer
• Adjustable overrun time
• Adjustable detection sensitivity
• Test operation to verify function and detection range
• Ready for immediate use thanks to factory pre-configuration
• An optional remote control is required to change the values ​​and settings.

Technical data:

• Protection class: IP 54
• Mounting height: 2.10 m
• Detection range: up to 452 m² (ø 24 m | 360°)
• Operating voltage: 110-230 V AC
• Sensitivity range: 30–3000 lux
• Power-on delay:
• Switch-off delay: 10 sec 60 min
• Switching capacities:
• Incandescent bulb: 2300 W
• Fluorescent lamp: 1150 W
• LED lamp: 600 W
