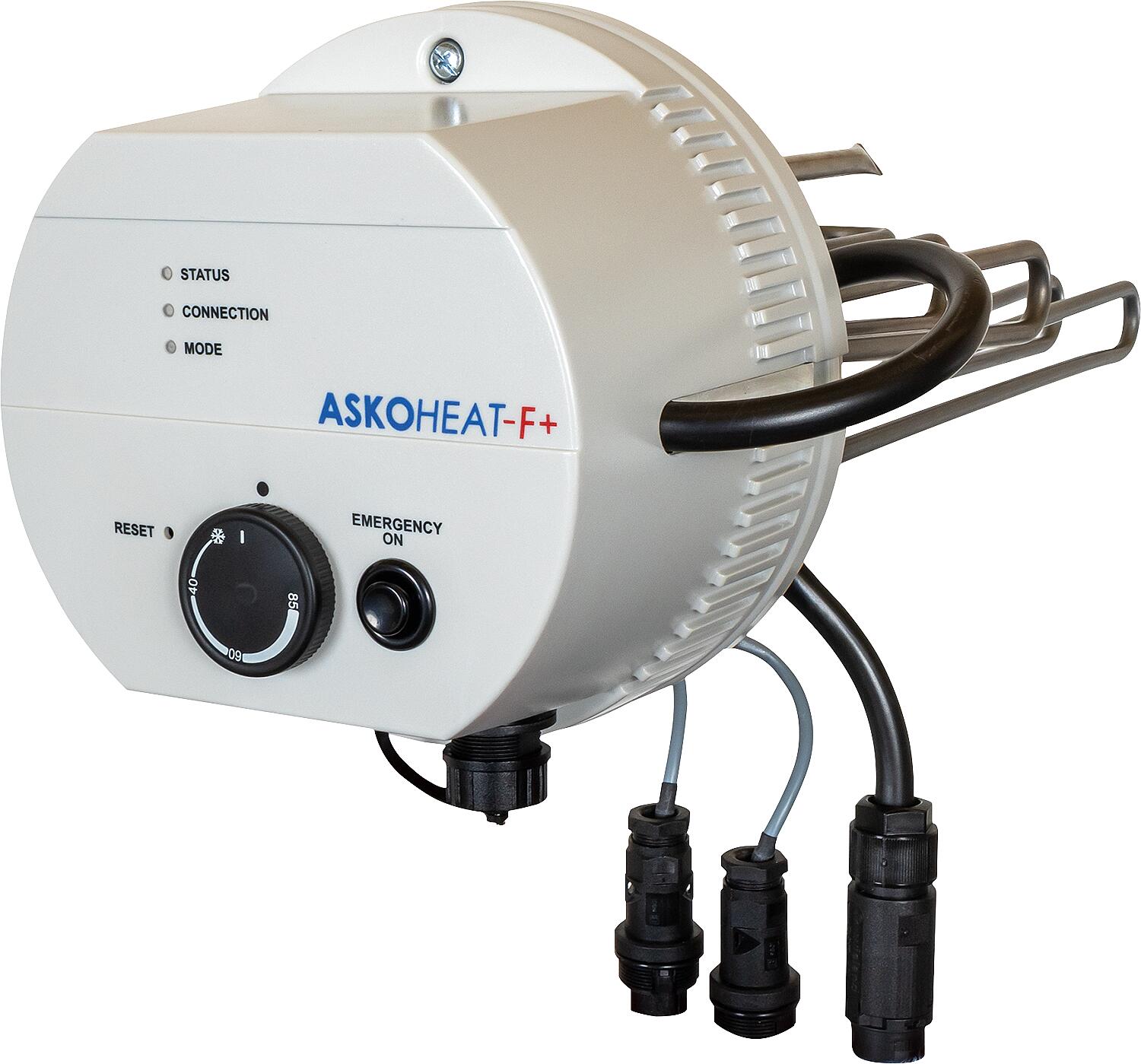

• Heating of domestic hot water and heating water in photovoltaic systems
• To optimize the self-consumption of electricity from the PV system
• Control via energy managers or building automation controllers
• Controllable via: - LAN, Modbus TCP/-RTU, REST API JSON and analog signal 0-10 V
• Can communicate with an existing meter via the RS485 interface. If PV energy is available, it starts heating at the appropriate power level.
• 7 performance levels
• Emergency heating button on the heating element, switches to 100% power
• Heat pump demand - control of the heat pump is via a digital input
• Connections for up to 4x PT1000 temperature sensors (optional), e.g., for reading stratification temperature behavior
• With temperature controller/limiter combination
• Setting range: OFF/Frost protection/0-85°C
• Insulated construction for all storage materials (steel, stainless steel, enamelled)
• Suitable accessories: ASKOSENSOR, ASKOSET+
• Unheated zone: 70 mm
• Protection rating: IP21
| Brand | ASKOMA |
|---|---|
| Power [kW] | 1.75 (0.25 + 0.50 + 1.00) |
| Manufacturer part number | 012-6791 |
| Unit price | CHF/piece |
| Installation length [mm] | 260 |
| Operating voltage [V] | 230 or 400 |
