Thanks to ec technology, power consumption has been significantly reduced. The Silvento ec is also quieter than its predecessor, as it operates much more efficiently and can be run at lower flow rates.
The functions of the Silvento ec can be selected via two control boards (not included):
Baseboard (order no. 98 029 67): 7 adjustable ventilation levels between 15 and 60 m³/h, overrun, interval switching and switch-on delay
Comfort board (order no. 98 029 68): Functions same as base board but additionally with humidity and temperature sensor.
Both circuit boards can also be retrofitted with a plug-in motion sensor.
The Silvento ec is offered in 2 versions.
Option 1: As a fan insert in conjunction with Lunos flush-mounted housings

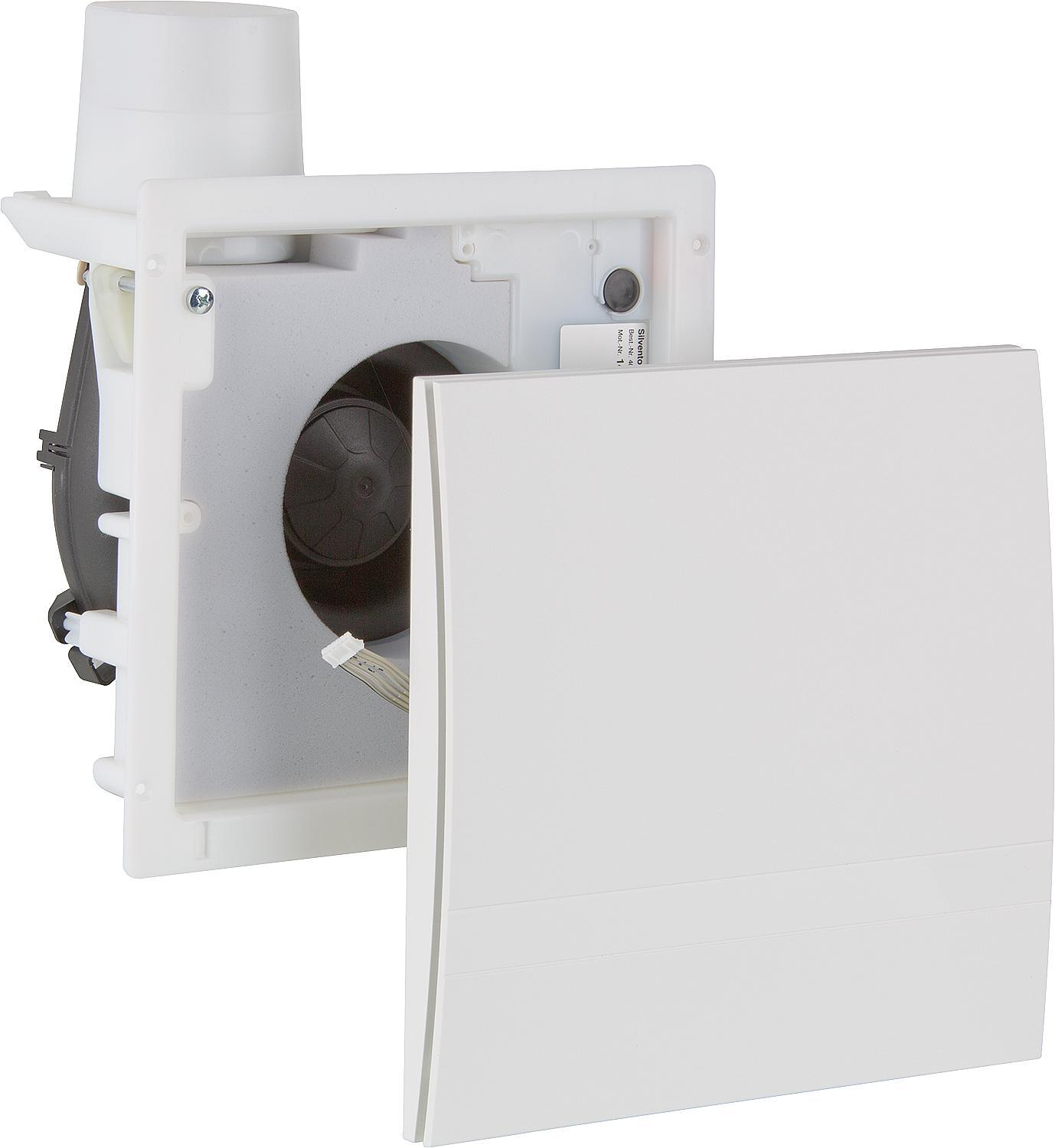

Option 2: As a clamp-on fan for direct mounting in drywall cutouts
• For direct mounting in drywall or ceilings
• No flush-mounted housing required
Technical data:
• Design: Radial
• Flow rate: 15/20/30/40/45/50/60 m³/h
• Sound pressure: 22 (30 m³/h) - 35 (60 m³/h) dB(A)
• Power consumption: 1.8-6.2 W
• Voltage: 230 V/50 Hz
• Protection class: II
• Protection class: IP X5
• Filter class: G2
• Maximum conveying temperature: 40°C
• Filter change indicator in the front panel
• Exhaust air connection: conical DN 75/80
• Maximum clamping length: 42 mm
Area of application:
• Bathrooms, toilets, kitchens, pantries and storage rooms in private and public residential units, hotels or other buildings according to DIN 18017-3.
• Installation position: Ceiling/Wall
• Installation via a riser with more than 20 floors is possible
• Protection zone: 1 of wet rooms
Attention: Operation only possible with an additional control module!
| Brand | LUNOS |
|---|---|
| Manufacturer part number | 40079 |
| Version | Variant 2: Clamp fan |
| Unit price | CHF/piece |
| Volume flow rate [m³/h] | 15-60 |
| Supply cable | 5 x 1.5 mm² |
| Type | KL-EC |
| EAN | 4050556400799 |
